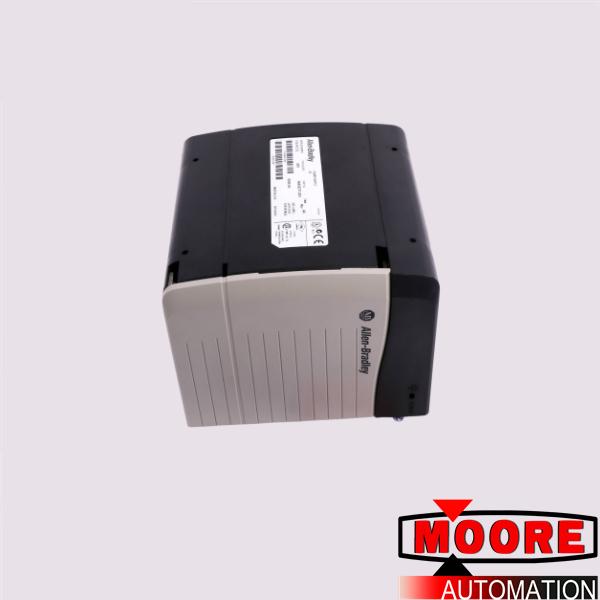

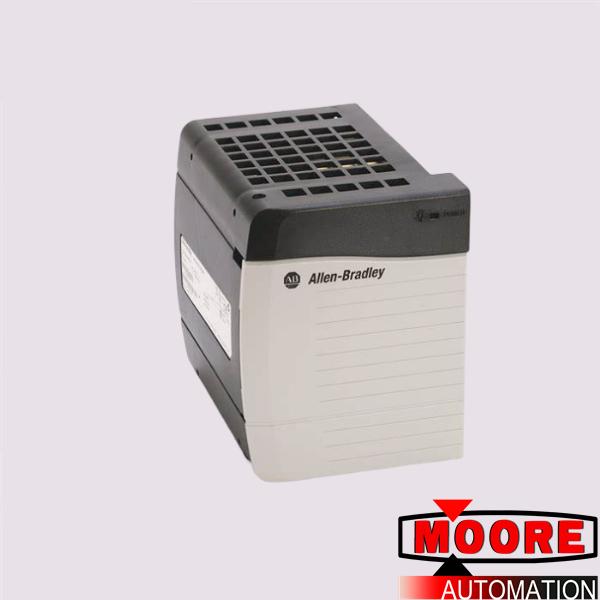

1756-PH75 | | Power Supply Module

Brand/ Manufacturer:
Dimensions:
12.7cm*5.1cm*15.2cm
Weight:
0.3kg
Country of Origin: :
United States
Description:
Power Supply Module

Inquiry now

Mfr. Part Number:	1756-PH75

Manufacturer:

Description:	Power Supply, ControlLogix, DC, 90-143VDC Input, 5VDC at 13A Output.

Full Description:	The 1756-PH75 ControlLogix Standard DC Power Supply Module is a 125V DC power source module for the 1756 ControlLogix device which is installed in any slot of the compatible 1756-A7, 1756-A10, 1756-A4, 1756-A13, and 1756-A17 ControlLogix Chassis

plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Manufacturer	Automation
Brand
Part Number/Catalog No.	1756-PH75
Series	ControlLogix
Module Type	1756-PH75
Input Voltage	125 Volts DC
Voltage Range	90-143 Volts DC
Input Power	95 Watts

The 1756-PH75 ControlLogix Standard DC Power Supply Module is a 125V DC power source module for the 1756 ControlLogix device which is installed in any slot of the compatible 1756-A7, 1756-A10, 1756-A4, 1756-A13, and 1756-A17 ControlLogix Chassis. It has an input rating of 90-143V DC input voltage and 95W input power rating.

The 1756-PH75 has an output power rating of 75W and a current surge of 30A across its circuit. The electrical signal in the circuit is delayed at a maximum of 50ms at 90-143V DC and it has a load-dependent current capacity which varies at different voltages. The maximum current capacity at 1.2V is 1.5A, at 3.3V, it is 4A, at 5.1V, it is 13A and at 24V DC, it is 2.8A.
