1756-OF6VI | ControlLogix discrete output module

in stock#

Brand/ Manufacturer:
Dimensions:
3.6 cm x 14 cm x 14.6 cm
Weight:
0.28 kg
Country of Origin: :
USA
Description:

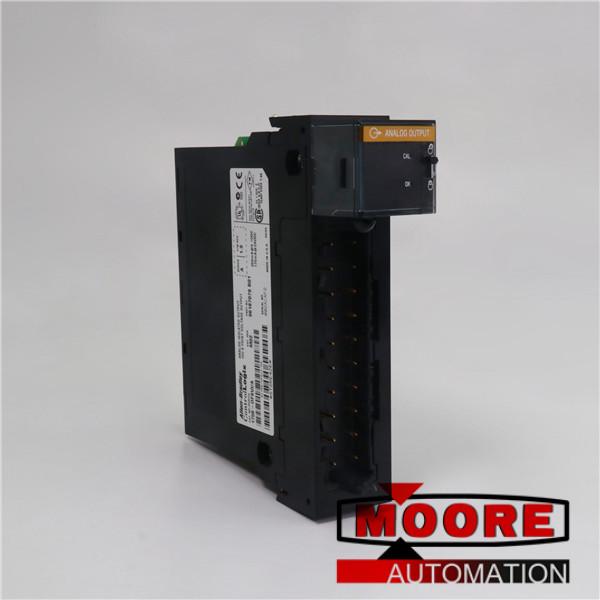

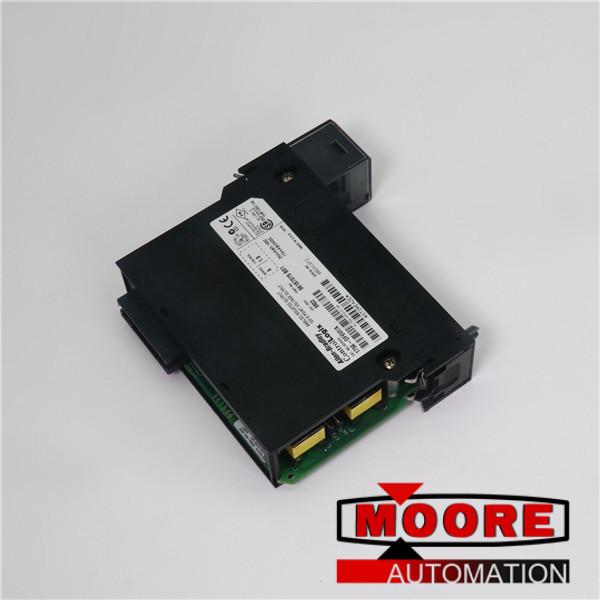

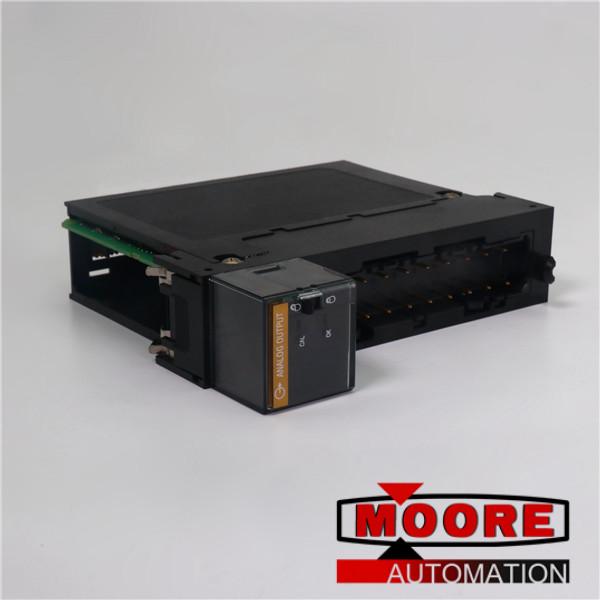

1756-OF6VI ControlLogix Isolated Analog Output Module

Inquiry now

Mfr. Part Number:	1756-OF6VI

Manufacturer:	/ Automation

Description:	1756-OF6VI ControlLogix Isolated Analog Output Voltage Module 6-Pt

Full Description:	1756-OF6VI ControlLogix Isolated Analog Output Module, Voltage, 6 Points (20 Pin). Number of Outputs: 6 individually isolated,

Status:	Discontinued by manufacturer

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The 1756-OF6VI ControlLogix Voltage Loop Output Analog module by is a ControlLogix chassis slot fitted analog output module with 6 individually-isolated outputs. It has a selectable signal range with an overall output range of ± 10.5V and a signal resolution of 14 bits across 21V. It has a backplane draw current of 175mA at 24V DC and of 250mA at 5.1V DC and it has a maximum backplane power of 5.5W. The 1756-OF6VI has a thermal dissipation of 16.54 BTU/hr with 4.85W power dissipation and a <1Ω output impedance. It does not come with an open circuit detection but offers overvoltage protection at 24V DC, and electronic current-limited short-circuit protection.
The 1756-OF6VI has a drive capability of >1000ï— loads at 10mA, and a <2ms settling time. The 1756-OF6VI has a calibration accuracy far better than 0.1% of its range and requires re-calibration only after 6 months. The module has a maximum gain drift of 80 ppm/°C, and it has a standard offset drift of 60 ïV per °C. The 1756-OF6VI has an overall module error margin of 0.5% and it has a module scan time of 25ms for floating point, and 10ms for integer. It has an isolation voltage of 250V with basic insulation, tested at 1350V AC for 2s, between output channels-to-backplane, and output channel-to-channel. It has the T4A North America Designated temperature code and an IEC T4 temperature code and comes in an open-style enclosure. The 1756-OF6VI has a functional temperature range between 0 and 60 °C at 5-95% non-condensing humidity environment and it is designed to withstand an operational shock of 30G with a vibration of 2G at 10-500Hz.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Manufacturer	Automation
Brand
Part Number/Catalog No.	1756-OF6VI
Series	ControlLogix
Module Type	Isoloated Analog Output Module with voltage loop
Outputs	6-Point Isolated
Backplane Current (5Volts)	250 milliamps
Backplane Current (24 Volts)	175 milliamps
Power Dissipation (Max)	4.85 Watts
Removable Terminal Blocks	1756-TBNH, 1756-TBSH
Power Dissipation (Max)	4.9 Watts at 60 Celsius
Removeable Terminal Block(s)	1756-TBNH, 1756-TBSH
Isolation Voltage	50 Volts Continuous
Enclosure	None
