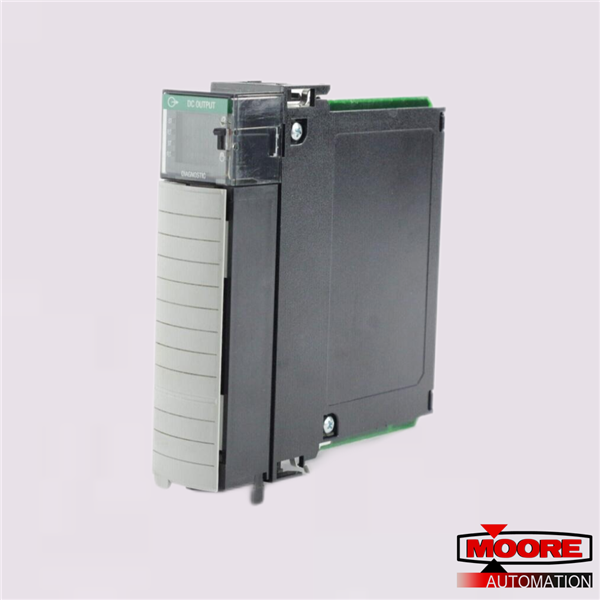

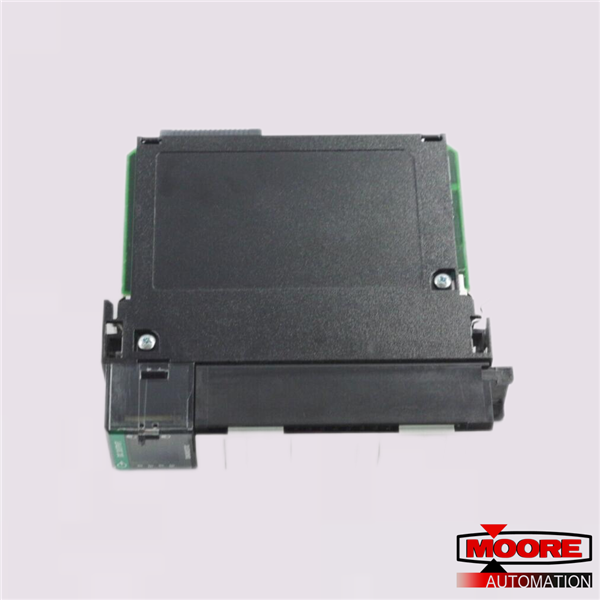

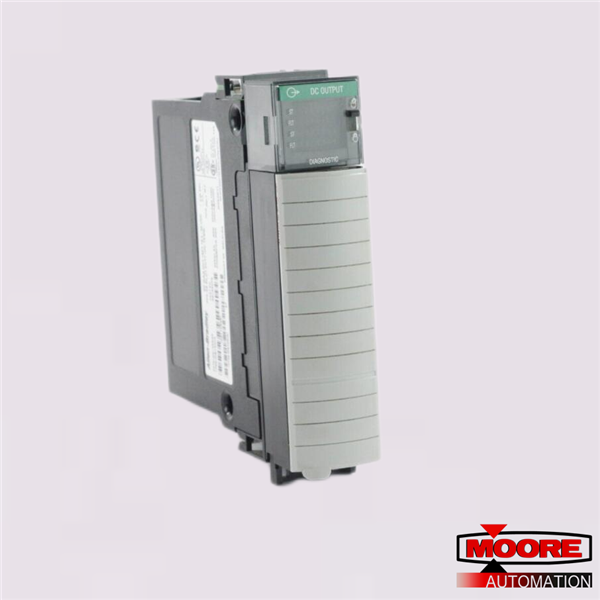

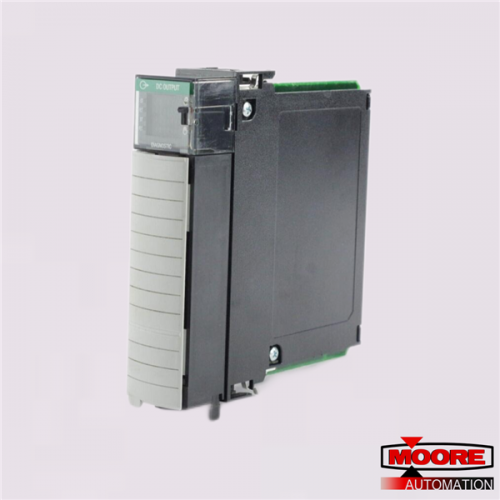

1756-OB16DK | DC Output Module

in stock#

Brand/ Manufacturer:
Dimensions:
2.2 cm x 12.4 cm x 12.6 cm
Weight:
0.1 kg
Country of Origin: :
USA
Description:
1756-OB16DK DC Output Module

Inquiry now

Mfr. Part Number:	1756-OB16DK

Manufacturer:

Description:	1756-OB16DK DC Output Module

Full Description:	1756-OB16DK DC Output Module with 16-Point Diagnostic Outputs

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

ControlLogix Diagnostic DC Output Module with 16-Point Diagnostic Outputs
The 1756-OB16DK module is a digital output module for ControlLogix 5580 programmable controllers. The 1756-OB16DK module includes 16 diagnostic outputs with 8 points per group. The pilot duty current is 2 Amps at 30 degrees Celsius and 1 Amp at 60 degrees Celsius. The voltage category of the module is 24 Volts DC source voltage. The operating voltage range is from 19.2 to 30 Volts DC. The nominal and maximum output delay times for the off to on process are 60 microseconds and 1 millisecond, respectively. The nominal and maximum output delay times for the on to off process are 630 microseconds and 5 milliseconds, respectively. The current draw at 5.1 Volts DC is 250 milliamps and the current draw at 24 Volts DC is 140 milliamps. The total backplane power draw for the module is 4.4 Watts. The maximum power dissipation for the module is 3.3 Watts at 60 degrees Celsius. The thermal dissipation for the 1756-OB16DK module is 11.25 BTU per hour.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Manufacturer	Automation
Brand
Part Number/Catalog No.	1756-OB16DK
Series	ControlLogix
Module Type	Diagnostic DC Output Module
Outputs	16-Point Diagnostic
Voltage	24 Volts DC Source
Operating Voltage Range	19.2-30 Volts DC
Maximum Output Current Rating-Point	2 Amps at
Maximum Output Current Rating-Module	8 Amps at 30 degrees Celsius and 4 Amps at 60 degrees Celsius
Power Dissipation (Max)	3.3 Watts at 60 Celsius
Backplane Current at 5 Volts	250 milliamps
Backplane Current at 24 Volts	140 milliamps
Removeable Terminal Block(s)	1756-TBCH, 1756-TBS6H
Isolation Voltage	50 Volts Continuous
