1747-L552 | | modular hardware

Brand/ Manufacturer:
Dimensions:
25cm*16.5cm*6cm
Weight:
0.45kg
Country of Origin: :
United States
Description:
Controller Module

Inquiry now

Mfr. Part Number:	1747-L552

Manufacturer:

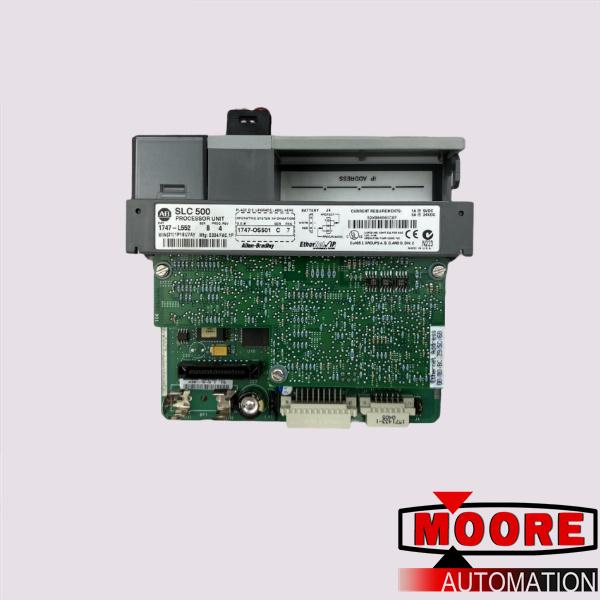

Description:	The 1747-L552 is a controller module for the SLC 500 Modular Hardware by . It comes with Memory of 32 KB, built-in communication interfaces such as 9-Pin RS-232 Port and Ethernet Communication ports. It has a capacity of 4096 Discrete I/O and Remote I/O capacity of 4096 Inputs and 4096 Outputs points.

Full Description:	The large memory capacity of the 1747-L552 features an IO capacity of 4096 Input and Outputs which allows the processor to control multiple small processes or a single large process. System criticality must be considered to properly plan which process can be included with the same processors.

plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Manufacturer	Automation
Brand
Part Number/Catalog No.	1747-L552
Series	SLC 500
Inputs	4096
Module Type	SLC 5/05 Processor
Outputs	4096
Analog I/O	480
Memory:	Up to 32 KB, Battery Backed-RAM
Program Scan Time	0.9 ms/K

The 1747-L552 is a controller module for the SLC 500 Modular Hardware by . It comes with Memory of 32 KB, built-in communication interfaces such as 9-Pin RS-232 Port and Ethernet Communication ports. It has a capacity of 4096 Discrete I/O and Remote I/O capacity of 4096 Inputs and 4096 Outputs points

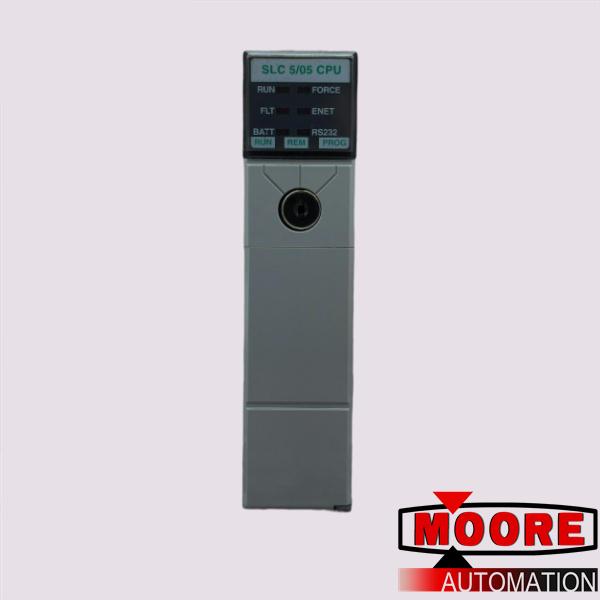

The 1747-L552 is an SLC 500 processor that belongs to the sub-category of SLC 5/05. This processor is a single slot processor that directly connects to the backplane of any SLC 500 chassis. This processor is integrated with an RS232 port for peer to peer communication and Ethernet communication for networked applications and simultaneous data exchange.

This processor is ideal for use in medium to large scale applications with focus on integrating the machine level area to the enterprise level. This processor also provides practical integration features for Industrial Internet of Things (IIoT) requirement.
