1746-NIO4V | Analog combination module

in stock#

Brand/ Manufacturer:
Dimensions:
12.7 cm x 5.1 cm x 15.2 cm
Weight:
0.3 kg
Country of Origin: :
USA
Description:
1746-NIO4V Analog combination module

Inquiry now

Mfr. Part Number:	1746-NIO4V

Manufacturer:

Description:	1746-NIO4V Analog combination module

Full Description:	1746-NIO4V Analog combination module This module features Two (2) differential, voltage or current selectable per channel with input signal ranges of -20 to +20 mA (or) -10 to +10V dc and Two (2) current outputs with signal range of 0 to +20 mA.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

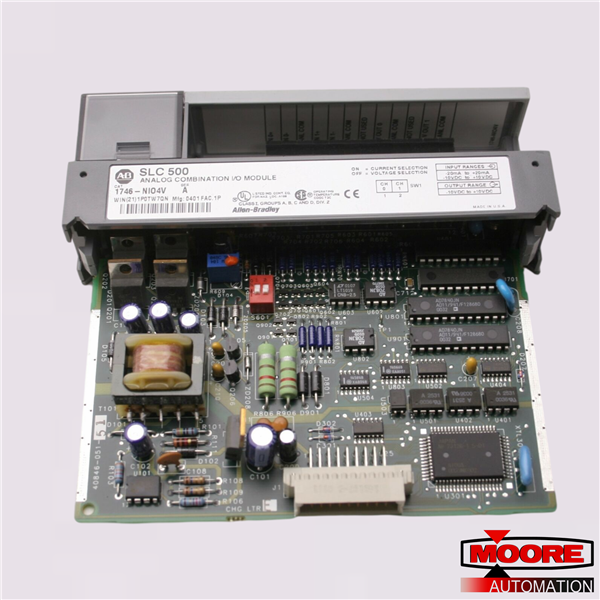

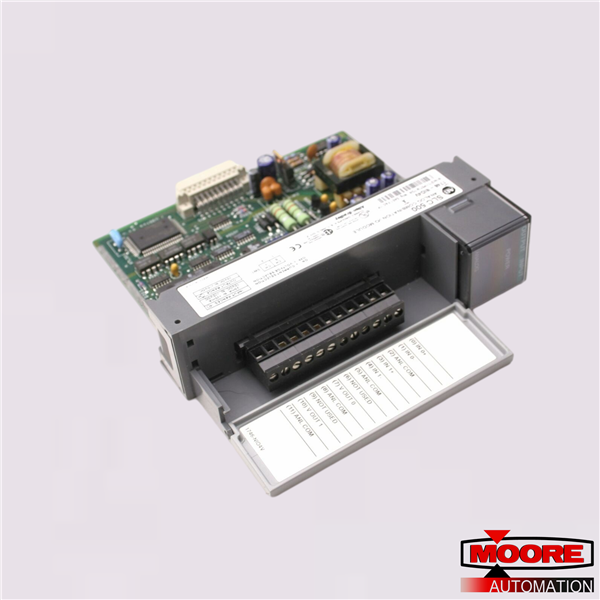

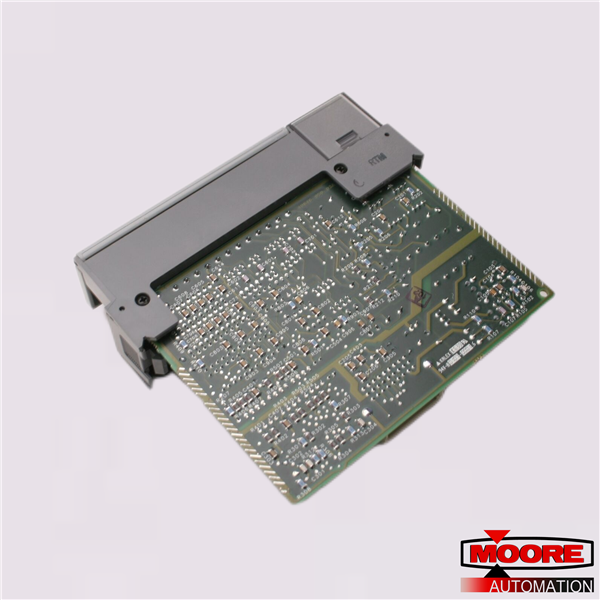

The 1746-NIO4V is an SLC500 analog combination module. This module features Two (2) differential, voltage or current selectable per channel with input signal ranges of -20 to +20 mA (or) -10 to +10V dc and Two (2) current outputs with signal range of 0 to +20 mA.
The 1746-NIO4V SLC 500 Analog Combination I/O Module by is an I/O module installed on the 1746 Chassis that has 2 user-selectable (per channel) current or voltage inputs and 2 voltage outputs. It has 2 current-loop inputs with a normal rating of -20 to 20mA at a 250 Ohm impedance and an input accuracy of +/- 0.642% at a drift rate of 79 ppm/5 degrees Celsius. Its two input points also have voltage ratings of -10 to 10 Volts DC with an impedance of 1M Ohm and a 10 Volt DC full-scale resolution of 305.176 ? V per LSB.
The 1746-NIO4V is an analog I/O combination module. This module features Two (2) input channels and Two (2) output channels. The input channels features compatibility with differential voltage and current inputs that are individually configurable. For current input configuration, accepted signal range is -20 to +20 mA with a resolution of 16-bit with repeatability of ±1 LSB and non-linearity of 0.01%. It uses Delta-Signa modulation conversion method. When configured for voltage input, the accepted voltage signal range is -10 to +10V dc - 1 LSB with resolution of 305.176 µV per LSB.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Manufacturer	Automation
Module Type	Analog combination module
Series	SLC500
Part Number/Catalog No.	1746-NIO4V
Brand
No. of inputs	Two (2) Differential Voltage / Current inputs
Current Input range	-20 to 20 mA
Current input resolution	1.22070 µA per LSB
Voltage Input range	-10 to +10V dc - 1 LSB
Voltage input resolution	305.176 µV per LSB
No. of Outputs	Two (2) non-isolated voltage outputs
Output Voltage range	-10 to +10 volts
Output voltage resolution	1.22070 mV per LSB
Backplane Current at 5.1 Volts	0.55 mA
Backplane Current at 24 Volts	115 mA
Inputs	2
Outputs	2
Backplane Current (5 Volts)	55 milliamps
Backplane Current (24 Volts)	115 milliamps
Bandwidth	10 Hertz
Update Time	512 microseconds
Resolution	16 bits in, 14 bits out
Step Response	60 milliseconds in, 2.5 milliseconds out
Mounting	Rack mount
