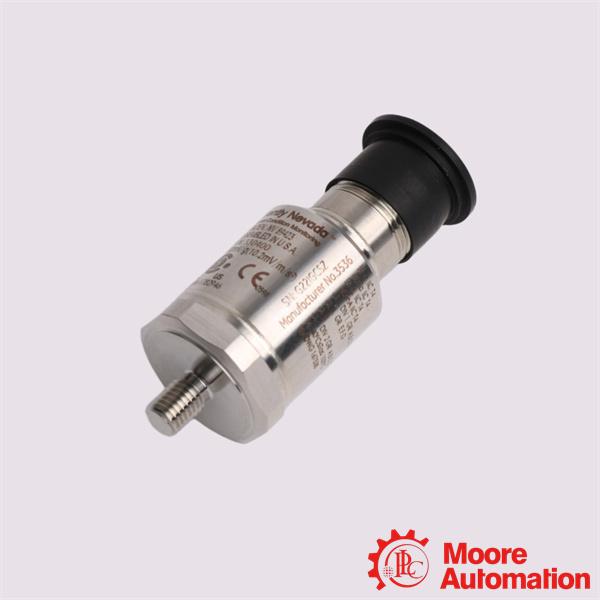

Bently Nevada 16710-50 177230-01-01-CN Seismic Transmitter
| Mfr. Part Number: |
16710-50 177230-01-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 177230 Seismic Transmitter is a simple, loop-powered device that can be quickly and easily installed. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:

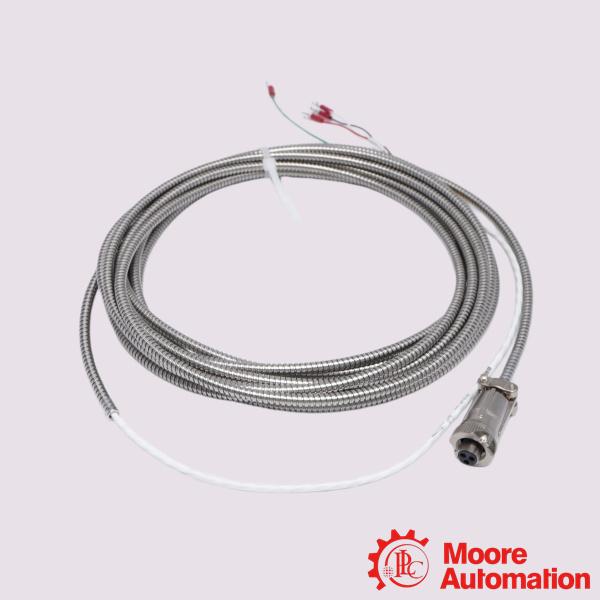

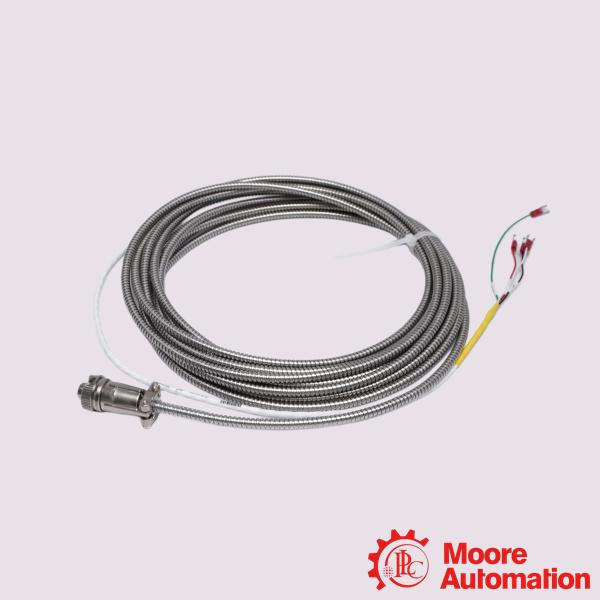

The Bently Nevada 177230-01-01-CN is a loop-powered seismic velocity transmitter to provide continuous vibration data directly to control systems. It is commonly bundled with the 16710-50 interconnect cable, which acts as a 3-wire interfaces for signal connection. The 177230 Seismic Transmitter is a simple, loop powered device that can be quickly and easily installed. It can be integrated into your programmable logic controller (PLC) or controls system linked to a plant asset condition monitoring solution. Its simple design reduces training, maintenance, and service costs.
Application:
Oil & Gas and Petrochemical Plants: Monitoring secondary electric motors, small auxiliary reciprocating compressors, and transfer pumps handling fluids and chemical feeds.
Power Generation Facilities: Tracking casing vibrations on mid-sized cooling water pumps, draft fans, ventilation blowers, and lubrication skid motors.
Water and Wastewater Treatment: Safeguarding high-duty water distribution pumps, intake pumps, and large aeration fans.
Pulp, Paper, and Steel Mills: Monitoring heavy-duty exhaust fans, process pumps, conveyor drive motors, and secondary rollers where bearing failure can stall assembly lines.
Frequently Asked Questions (FAQ)
Q:How is the transmitter mounted?
A:It is typically mounted directly onto the machine casing using a threaded mounting stud. The mounting surface must be flat and clean to ensure accurate vibration transmission.
Q:How is this device powered?
A:The transmitter is strictly loop-powered. It operates using the power supplied directly by the 4–20 mA control loop, eliminating the need for a standalone external power supply.
Q:Can it be used in wet or humid environments?
A:Yes. The unit supports a relative humidity rating of up to 100% non-submerged. It must be properly sealed at the cable connection port using an appropriate conduit or the Bently Nevada 16710 cable connector assembly to ensure protection against moisture ingress.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：16710-50 177230-01-01-CN |
|
Agency Approval Option |
None |
|
Mounting Thread Option |
M8 X 1 integral stud |
|
Measurement Range |
0 – 12.7 mm/s (0 – 0.5 in/s) |
|
Frequency |
10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
|
Excitation Voltage |
12 to 30 Vdc (Current limited to 40 mA) |
|
Settling Time |
Less than 15 seconds within 2% of final value |
|
Transverse Sensitivity |
Less than 5% of sensitivity |
|
Output Signal |
4 to 20 mA Current Loop from Pin A to Pin B |
|
Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
