in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
,6.8x2.7x2.4cmWeight:
0.12kgCountry of Origin: :
USADescription:

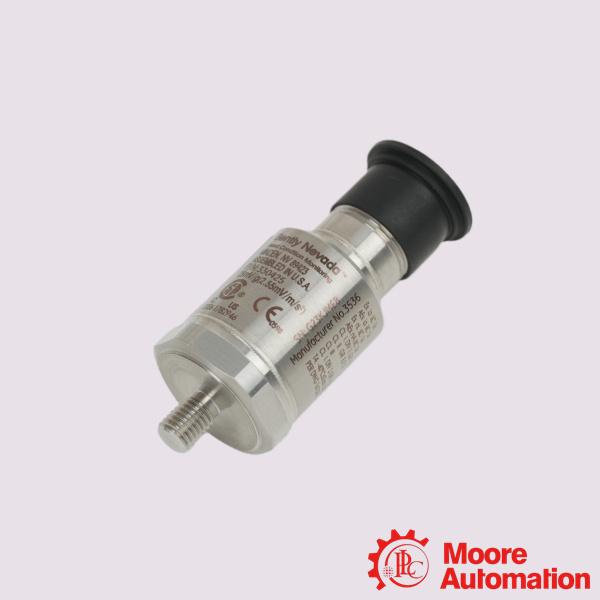

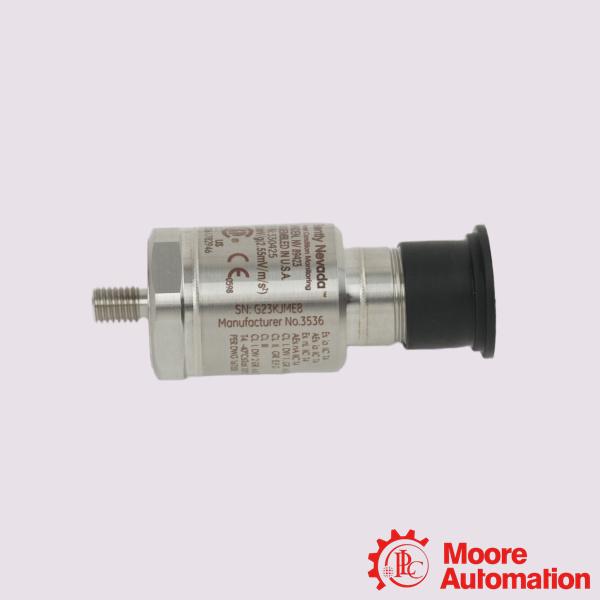

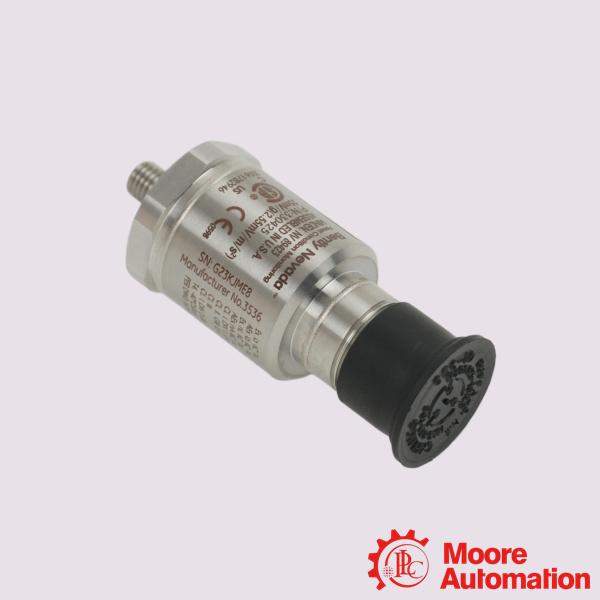

Bently Nevada 16710-30 330400-02-00 Accelerometer Acceleration Transducer
| Mfr. Part Number: |
16710-30 330400-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
These accelerometers are intended for critical machinery applications where casing acceleration measurements are required. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330400-02-00 is an industry-grade Accelerometer Acceleration Transducer paired with the 16710-30 armored interconnect cable, primarily used for critical machinery casing vibration measurements. These accelerometers are intended for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. The 330400 is designed to address the requirements of American Petroleum Institute Standard 670 for accelerometers. It provides an amplitude range of 50 g peak and a sensitivity of 100 mV/g. The 330425 is identical except it provides a larger amplitude range (75 g peak) and a sensitivity of 25 mV/g.
Application:
Oil & Gas (Refineries & Offshore Platforms): Used on critical extraction and processing machinery where hydrocarbon exposure and explosive atmospheres require strict API 670 standards.
Power Generation: Monitored via the Bently Nevada 3500 system to track the health of primary turbine-generator trains.
Petrochemical & Chemical Processing: Resisting aggressive chemical vapors and high ambient processing temperatures.
Mining & Metal Mills: Withstanding severe mechanical abrasion and heavy EMI from large frequency converters or massive electric motors.
Frequently Asked Questions (FAQ)
Q:Can the 16710-30 cable be used with the 330425 sensor?
A:Yes. The 16710 cable series is fully compatible with both the 330400 and 330425 accelerometer lines. The 330425 is the higher-range variant (75 g peak, 25 mV/g sensitivity).
Q:Do I need external power for the 330400-02-00 accelerometer?
A:No, the transducer does not require a standalone external power supply if it is connected to a compatible Bently Nevada Monitoring System. The monitor rack natively injects the required -24 Vdc constant current across the interconnect cable to drive the sensor's internal charge amplifier.
Q:Can I use a regular unarmored cable instead of the 16710-30?
A:You can use an unarmored equivalent if the environment is benign. However, the armored variant is highly recommended for physical protection against sharp bends, hot surfaces, flying debris, and mechanical crush hazards common around heavy rotating machinery.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：16710-30 330400-02-00 |
|
Agency Approval Option |
None |
|
Mounting Thread Option |
M8 X 1 integral stud |
|
Sensitivity |
10.2 mV/m/s2 (100 mV/g) ±5% |
|
Amplitude Linearity |
±1% to 490 m/ s2 (50 g) peak |
|
Broadband Noise Floor (10 Hz to 15 kHz) |
0.039 m/s2 (0.004 g) rms |
|
Input Voltage |
-24 ± 0.5 Vdc. |
|
Bias Current |
2 mA nominal. |
|
Output Bias Voltage |
-8.5 ± 0.5 Vdc |
|
Grounding |
Case isolated |
|
