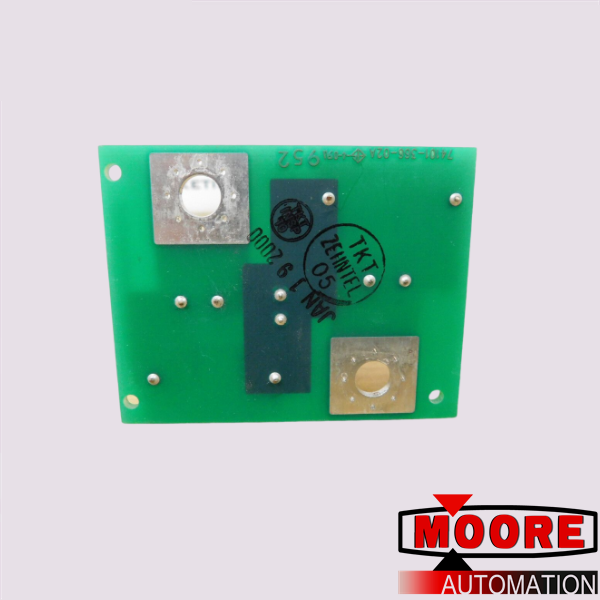

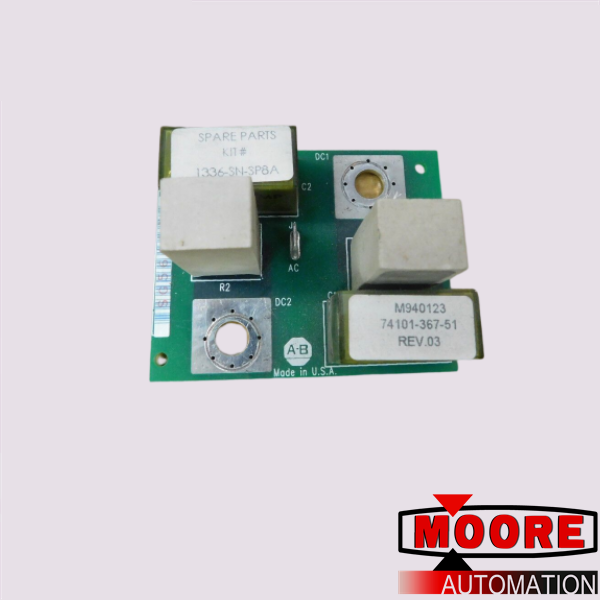

1336-SN-SP8A 74101-367-51 | | PCB board

Brand/ Manufacturer:
Dimensions:
9.4cm*7cm*7.2cm
Weight:
0.3kg
Country of Origin: :
United States
Description:
PCB board

Inquiry now

Mfr. Part Number:	1336-SN-SP8A 74101-367-51

Manufacturer:

Description:	The 1336-SN-SP8A PCB or converter snubber board runs with 230 Volts AC, 460 Volts AC, and 575 Volts AC voltage ratings, and 150 to 250 Horsepower output ratings.

Full Description:	The 1336-SN-SP8A PCB converter snubber board assembly consists of 3 snubber boards, a copper mounting plate, and stand-off screws for installation. The 1336-SN-SP8A converter snubber board is suitable for E-Frame drives with 230 Volts AC

plcsale@mooreplc.com + 86 18030235313 dddemi33 2851195473

Brand	/ Automation
Series	1336 PCB Boards
Part Number	1336-SN-SP8A
Description	PCB Converter Snubber Board
Voltage	230 Volts AC, 460 Volts AC, 575 Volts AC

The 1336-SN-SP8A Printed Circuit Board or PCB is also known as a converter snubber board. It is a stand-alone SCR converter snubber board assembly. This converter snubber board is located on the converter assembly of the drive, and it serves as a replacement converter snubber board for the 1336 Plus, Force, Impact, and Plus II drives. It is compatible with the E-Frame drives.

The 1336-SN-SP8A PCB converter snubber board assembly consists of 3 snubber boards, a copper mounting plate, and stand-off screws for installation. The 1336-SN-SP8A converter snubber board is suitable for E-Frame drives with 230 Volts AC, 460 Volts AC, and 575 Volts AC input voltage ratings. It is also compatible with the 1336 Plus, Force, Impact, and Plus II drives that have nominal power ratings that range from 150 Horsepower to 250 Horsepower. The 1336-SN-SP8A converter snubber board is backward-compatible and it can serve as a replacement part for previous converter snubber board versions.

The 1336-SN-SP8A converter snubber board is installed close to the SCR module within the 1336 drive’s heat-sink. To install the 1336-SN-SP8A converter snubber board, first access the SCR assembly (check the troubleshooting guide for the 1336 IMPACT-6.2, 1336 FORCE-6.2, or 1336 PLUS-6.2 drives), then remove the screws holding the heat-sink. Align the bus bar holes with the copper plate that is provided, and fasten the converter snubber board to the bus bar. Attach the heat-sink while following steps in the reverse order of the removal process, and turn on the power.
