1326AB-B520E-21 | AC Voltage

in stock#

Brand/ Manufacturer:
Dimensions:
2.2 cm x 12.4 cm x 12.6 cm
Weight:
0.1 kg
Country of Origin: :
Switzerland
Description:
1326AB-B520E-21 AC Voltage

Inquiry now

Mfr. Part Number:	1326AB-B520E-21

Manufacturer:

Description:	1326AB-B520E-21 AC Voltage

Full Description:	1326AB-B520E-21 AC Voltage The 1326AB-B520E-21 has a 460/380V AC Voltage, a 149 mm Frame Diameter, and a 3000 rpm Rated Motor Speed.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for . The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

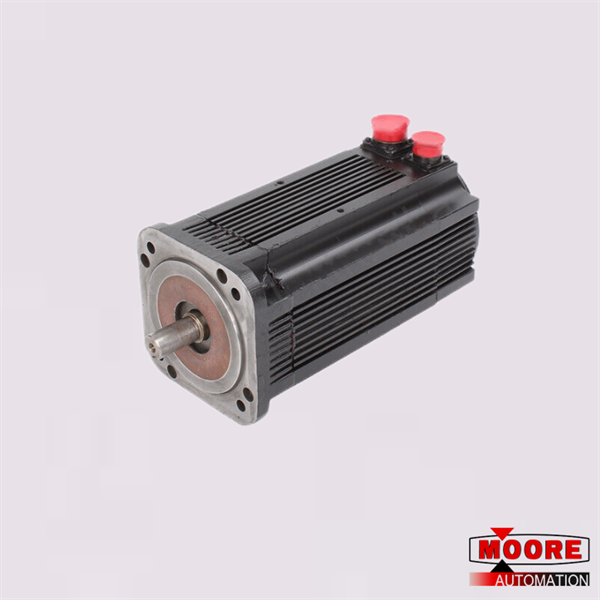

The 1326AB-B520E-21 has a 460/380V AC Voltage, a 149 mm Frame Diameter, and a 3000 rpm Rated Motor Speed. It also contains a 13 Nm System Continuous Torque and a 2.9 kW Motor Rated Output.
This servo motor has an armature voltage rating of 380/460 Volts AC with temperature specifications of 40 degrees Celsius ambient temperature, 100 degrees Celsius case temperature, and 80 degrees Celsius motor winding temperature. This servomotor has an output power of 2.9 kilowatts rated speed 3000 and 2500 RPM, respectively. The electrical and mechanical time constant are 6.2 milliseconds and 9.3 milliseconds, respectively. The continuous stall torque ratings with AM04, AM07, AM50, and AM75 axis modules are 78, 115, 115, and 115 pounds on an inch, respectively. The peak stall torque with the AM04, AM07, AM50, and AM75 axis modules is 157, 260, 345, 345 pounds on an inch, respectively.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Brand
Part Number/Catalog No.	1326AB- B520E-21
Product Type	Servo Motor
Voltage	460/380V AC
Frame Diameter	149 mm
Rated Motor Speed	3000 rpm @ 460VAC; 2500 @ 380VAC
Flange and Shaft Series	IEC Metric Flange with Keyway
Motor Rated Torque	13.1 Nm
Motor Rated Output	2.9 kW
Standard Option	N/A
System Continuous Torque	13.1 Nm
System Peak Stall Torque	39.3 Nm
