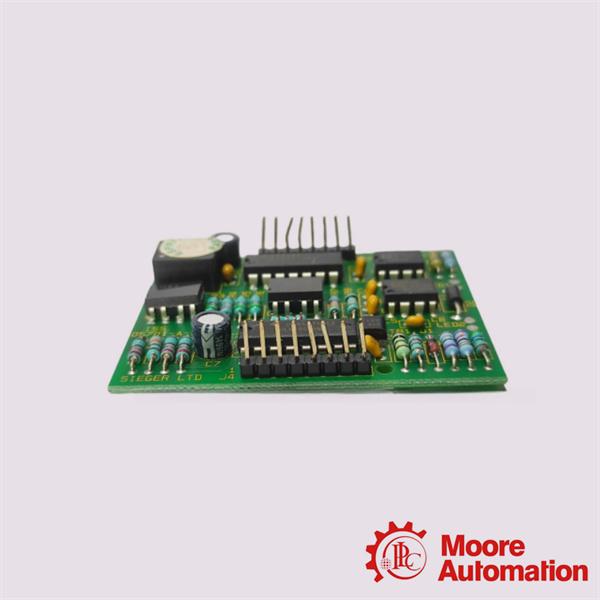

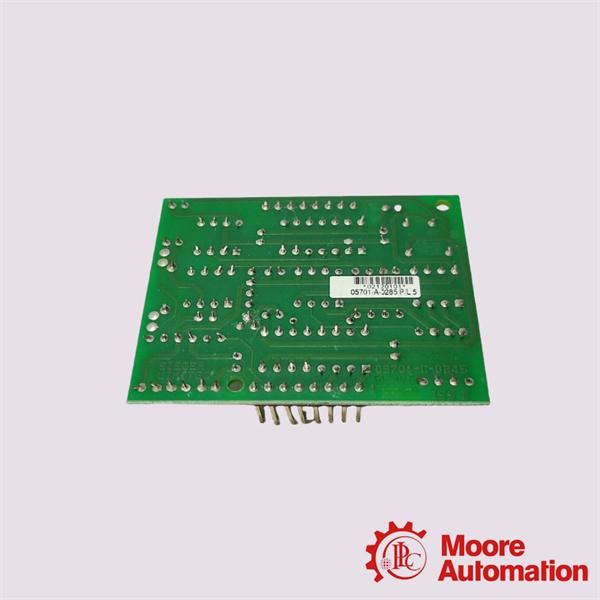

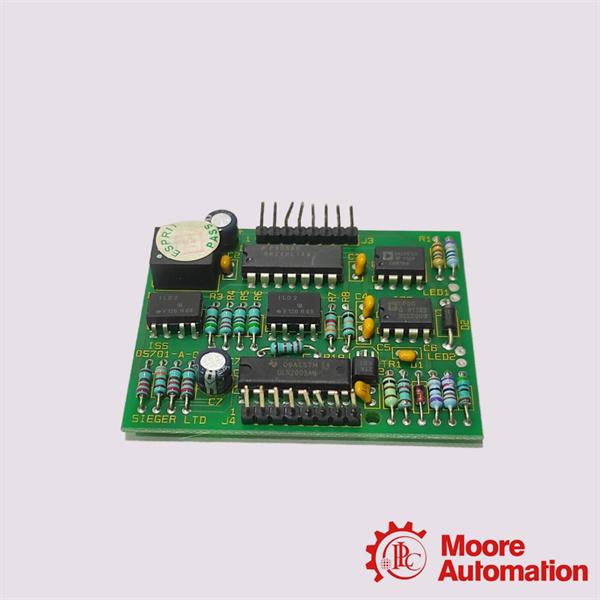

05701-A-0285 | HONEYWELL Analogue Output Module

in stock#

Brand/ Manufacturer:
HONEYWELL
Dimensions:
12.7 cm x 5.1 cm x 12.7 cm
Weight:
0.1 KG
Country of Origin: :
USA
Description:
HONEYWELL 05701-A-0285 Analogue Output Module

Inquiry now

Mfr. Part Number:	05701-A-0285

Manufacturer:	HONEYWELL

Description:	HONEYWELL 05701-A-0285 Analogue Output Module

Full Description:	HONEYWELL 05701-A-0285 Analogue Output Module The Analogue Output Module provides an isolated current loop outputthat follows the sensor signal level. The output circuit is a passivecurrent control element that can be operated with loop voltages up to40V.

Status:	In stock Ready for shipment

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for HONEYWELL. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The Analogue Output Module provides an isolated current loop outputthat follows the sensor signal level. The output circuit is a passivecurrent control element that can be operated with loop voltages up to40V. The recommended connections are shown below:The analogue output can be configured for 0 - 20mA or 4 - 20mA output modes. Check the configuration sheet supplied with the systemto determine the factory configured operating mode. The operatingmode can be reconfigured easily using a computer attached to theEngineering Port. Contact Honeywell Analytics or your local agent formore information.The analogue output can be connected to voltage input device (eg.chart recorders) by including an external sense resistor in series withthe loop and connecting the device input in parallel with the resistor.ie. Use a 100 ohm resistor and select an input range of 2V on the chartrecorder.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

General
Manufacturers	HONEYWELL
Brand	HONEYWELL
Part Number/Catalog No.	05701-A-0285
Condition	New and Original with One year Warranty
