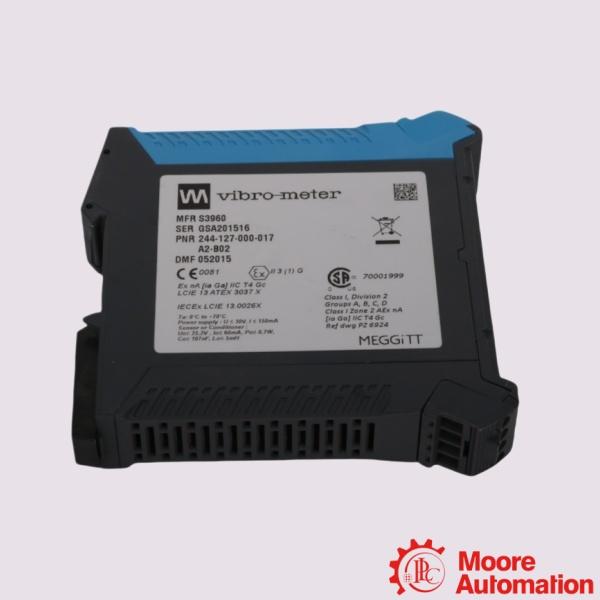

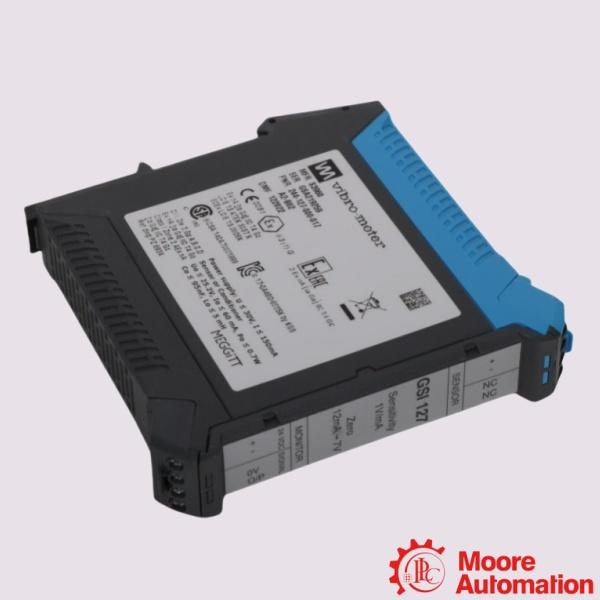

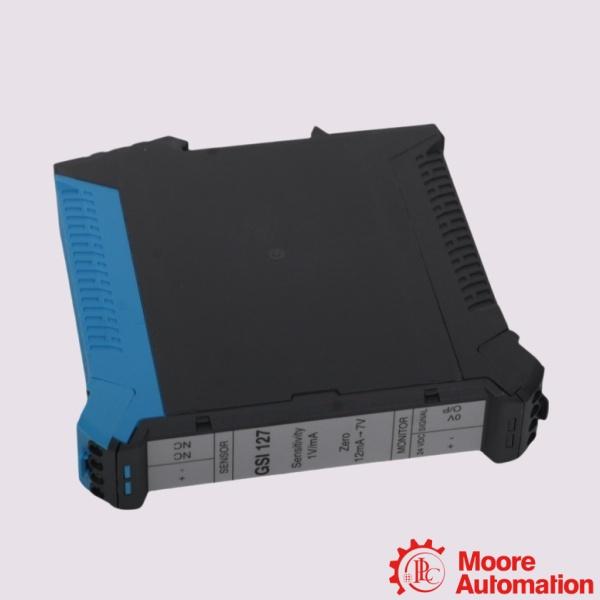

Vibro-Meter S3960 GSI 127 244-127-000-017 A1-B02 galvanic separation unit

Description

The Vibro-Meter S3960 GSI127 244-127-000-017 A1-B02 is a GSI127 galvanic separation unit designed to provide electrical isolation between vibration sensors and monitoring systems. It supplies power to compatible signal conditioners and sensors with either current or voltage outputs while ensuring reliable signal transmission in industrial condition monitoring systems. The unit features 4 kVRMS galvanic isolation between the sensor side and monitor side, 50 VRMS isolation between the power supply and output (floating output), high frame-voltage rejection, and supports both µA-to-mV transfer for long-distance current signal transmission and V-to-V transfer for short-distance voltage signal transmission. It is compatible with standard IEPE vibration sensors and is available in Ex-certified versions for hazardous-area applications.

Parameter

Model: S3960 GSI 127 244-127-000-017 A1-B02 galvanic separation unit
Temperature Operating: 0 to 70°C (32 to 158°F)
Temperature Storage: −40 to 85°C (−40 to 185°F)
Shock acceleration: 6 g peak
Input voltage range: 18 to 30 VDC
Output voltage dynamic range(with 10 kΩ load): 2 to 20 VDC
Output impedance: 20 Ω, protected against short-circuits
Output signal sensitivity drift with temperature: ≤50 ppm/°C

Frequently asked questions

Q:What is the Vibro-Meter S3960 GSI127 244-127-000-017 A1-B02?
A:The S3960 GSI127 244-127-000-017 A1-B02 is a galvanic separation unit designed to provide electrical isolation and sensor power supply in Vibro-Meter vibration monitoring systems, ensuring reliable and interference-free signal transmission.

Q:Is the S3960 GSI127 suitable for hazardous areas?
A:Yes. Ex-approved versions are available for installation in potentially explosive atmospheres, subject to the appropriate certification and system configuration.

Q:What type of signals does this unit support?
A:It supports both current-output and voltage-output sensors and signal conditioners, with transfer functions optimized for different transmission distances.

Application areas

As a high-precision galvanic separation unit (safety barrier), it is primarily used in industrial condition monitoring chains for power isolation, signal transformation, and ground noise suppression.

• Power Generation & Energy: Widely used in thermal, gas turbine, wind, and hydro power plants for 24/7 continuous vibration safety monitoring of critical generation assets.
• Petroleum & Natural Gas: Deployed in non-hazardous (safe) areas like control rooms or standard electrical cabinets to perform long-term condition monitoring on oil and gas transport and processing units.
• Chemical & Heavy Industries: Applied in the utility workshops of large chemical plants, paper mills, mining operations, and metallurgical industries to ensure the continuous operation of critical rotating production equipment.
