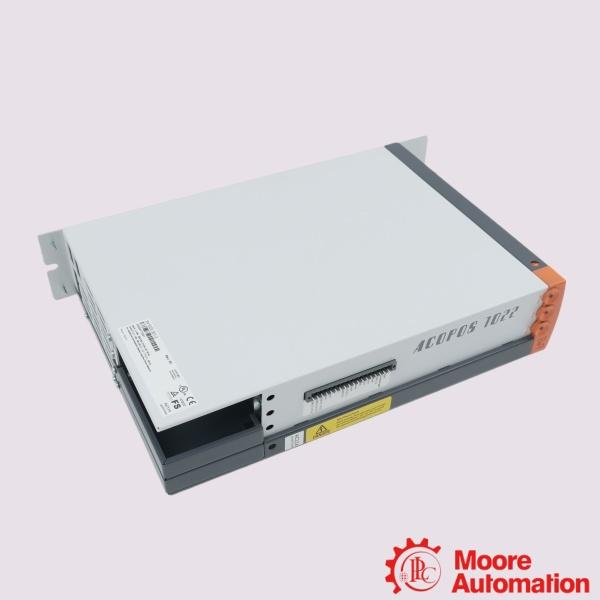

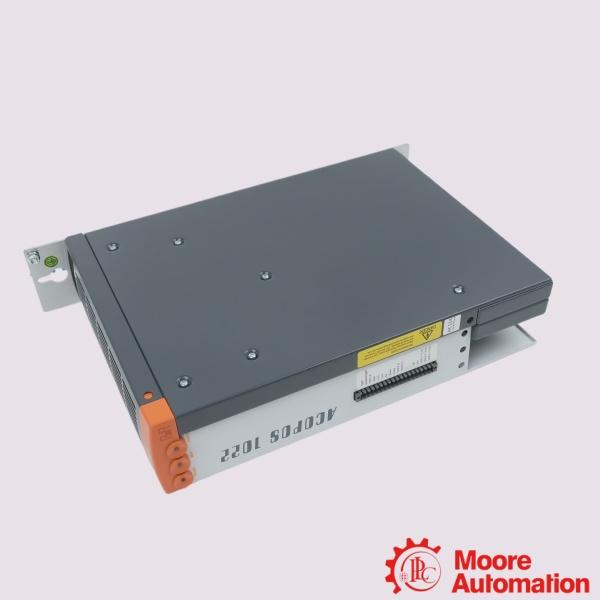

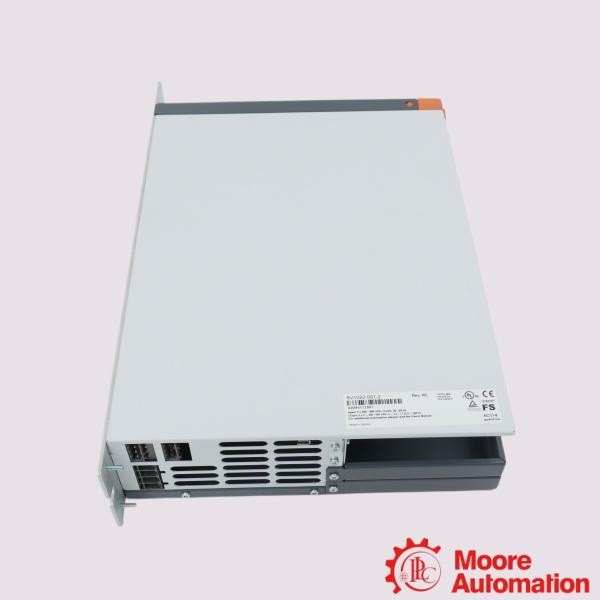

B&R 8V1022.001-2 AC servo motor BSH Straight connectors

Description

The B&R 8V1022.001-2 is an ACOPOS servo drive module used for precise motion control in B&R automation systems. It provides control of servo motors within automated machinery and supports integration into B&R control architectures through the ACOPOS platform. The module is designed for applications requiring accurate positioning, dynamic response, and coordinated movement of machine axes. With its compact design and standardized connection concept, the 8V1022.001-2 can be integrated into existing B&R automation solutions and used together with compatible ACOPOS components. The servo drive supports reliable communication between the motion controller and the connected motor system, enabling controlled operation of industrial motion applications. It is suitable for use in machine automation environments where precise drive control and synchronized axis movements are required.

Parameter

Model: 8V1022.001-2 AC servo motor BSH Straight connectors
Supply voltage max: 480 V
Continuous stall current: 13.2 A
IP degree of protection: IP65 standard IP67 with IP67 kit
Holding brake: Without
Maximum continuous power: 4.2 W
Maximum permanent current: 44.1 A
Feedback type: Single turn SinCos Hiperface

Frequently asked questions

Can the B&R 8V1022.001-2 be installed in an IT power system?
No, the B&R 8V1022.001-2 is strictly designed for standard TN or TT grid configurations and should not be connected directly to ungrounded IT power systems or grounded TN-S systems without proper isolation.

Does the B&R 8V1022.001-2 support third-party motor integration?
Yes, the B&R 8V1022.001-2 provides extensive support for various feedback systems and can be integrated with third-party motors provided the electrical characteristics and encoder interfaces are configured via the appropriate plug-in modules.

What maintenance considerations apply to the B&R 8V1022.001-2?
Maintenance should be carried out according to B&R ACOPOS documentation. Before replacing or servicing the unit, the applicable safety instructions and system requirements should be .

Application areas:
Electronic SMT Insertion: Coordinates micro-positioning tables for automated printed circuit board assembly tools.
Pharmaceutical Blister Packagers: Governs synchronized indexing mold wheels during low-power cavity thermoforming.
Automotive Label Die-Cutting: Feeds raw paper roll stock smoothly through dynamic flying-shear knife stations.
Precision Registration Systems: Adjusts print cylinder cross-alignment on multi-station flexographic printers.
