Woodward 8200-203 ProTech 203 Overspeed Protection System

Frequently asked questions
Q:Is Woodward 8200-203 suitable as a replacement unit for existing ProTech 203 systems?
A:Yes. The 8200-203 is one of the ProTech 203 models listed by Woodward and can be used as a replacement component for compatible installations according to the applicable system documentation.

Q:Which diagnostic information can Woodward 8200-203 provide?
A:Separate LEDs indicate overspeed trips, MPU or wiring failures, and CPU faults, while digital displays present the actual speed from each magnetic pickup and the highest detected speed.

Q:Does Woodward 8200-203 support hazardous industrial environments?
A:8200-203 features an enclosure approved for Type 4 and Type 4X environments in North America and carries an IP54 enclosure rating for European installations.

Description

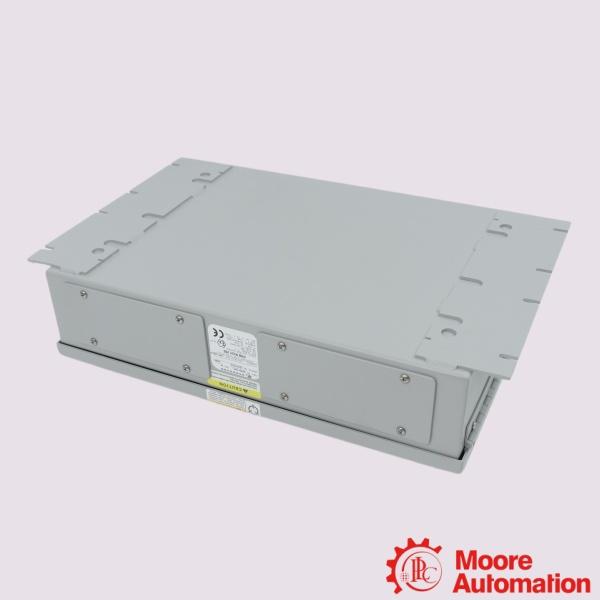

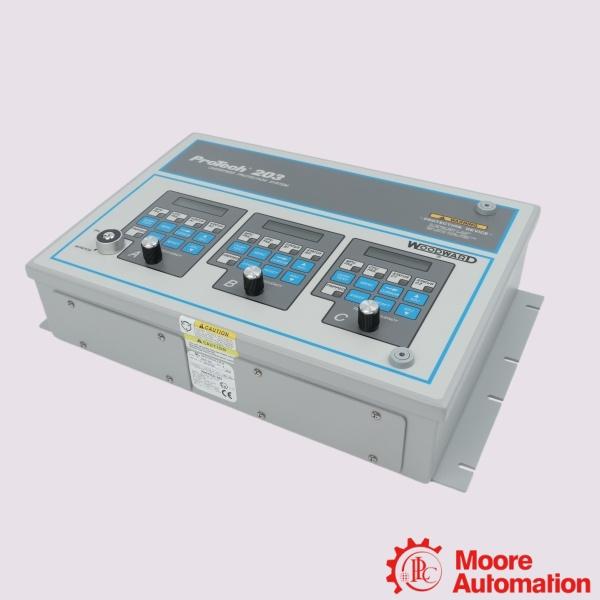

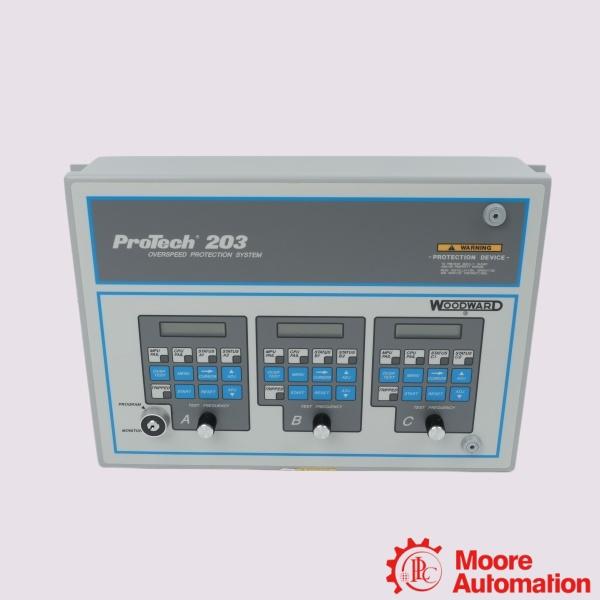

The Woodward 8200-203 is a ProTech 203 Overspeed Protection System used for monitoring and protecting prime movers against overspeed conditions. The unit consists of three independent speed-sensing modules, each with its own power supply and processing circuit. The system receives speed signals from magnetic pickups, performs individual speed calculations, and uses a two-out-of-three voting structure for overspeed trip operation. The 8200-203 is a de-energize-to-trip model with a 120 Vac/dc power supply input. Each sensing unit operates independently to monitor prime mover speed and provides trip relay outputs when an overspeed condition is detected. The system includes front-panel LED indicators, digital displays, remote reset functions, key lock operation, and built-in test functions for system monitoring and maintenance. The Woodward ProTech 203 8200-203 supports continuous overspeed monitoring for turbine and rotating equipment protection applications. Its modular three-channel configuration allows individual speed-sensing units to be checked or serviced while maintaining operation through the remaining channels. The unit is applied in industrial safety systems where independent overspeed detection and shutdown protection are required.

Parameter

Model: 8200-203 ProTech 203 Overspeed Protection System
Frequency Range: 100 Hz to 32 kHz
Trip-Point Frequency Range: 250 Hz to 25 kHz
Operating Temperature: –25 to +60 °C (–13 to +140 °F)
Sample Time: Speed is sampled every 5 ms
Circuit Input Impedance: 2 kΩ
Accuracy: ±(0.05% x Trip Point in Hz +2 Hz)

Application areas

• Centrifugal & Axial Compressors: Deployed in petrochemical plants to protect massive air-separation or cracked-gas compressor trains.
• Blast Furnace Induced Draft Fans: Governs maximum rotational limits on massive chemical processing ventilation hubs to eliminate structural fatigue.
• Commercial Vessel Main Engines: Installed inside chassis control bays to block accidental high-speed piston or crankshaft destruction on large-bore marine engines.
