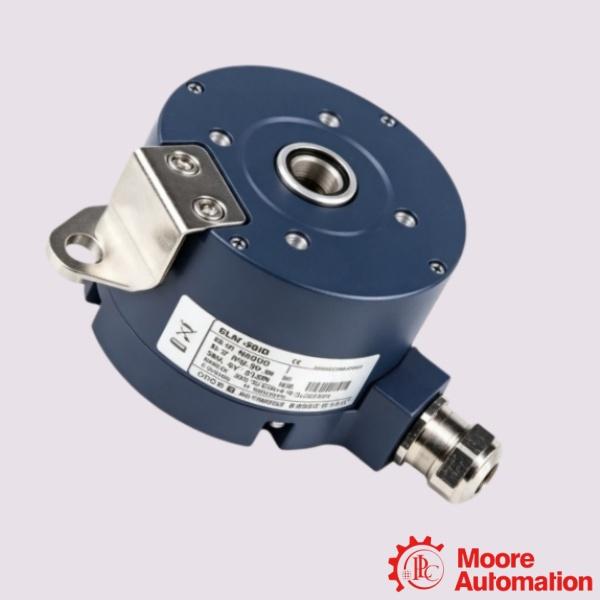

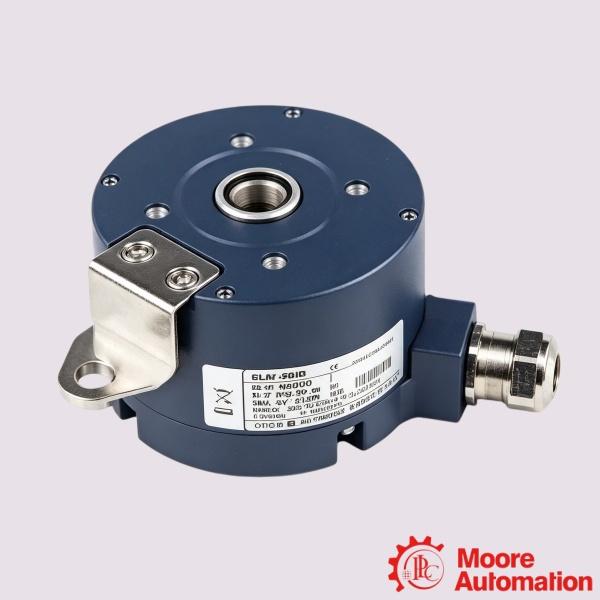

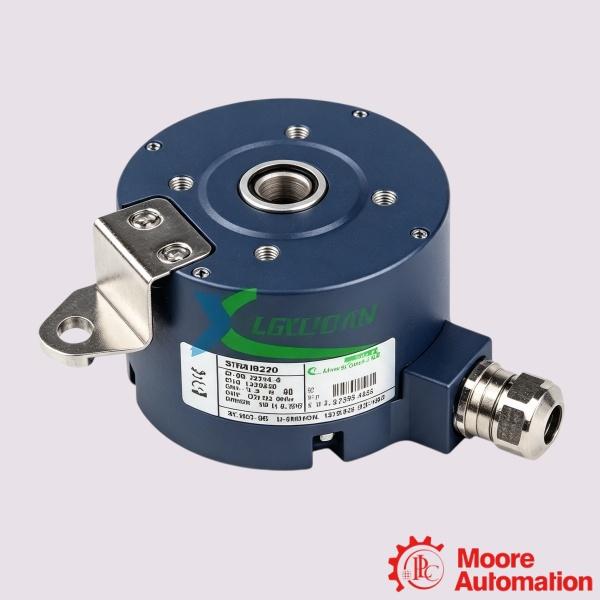

Leine Linde 729798-01 Heavy-duty Hollow Shaft Encoder

Description

The 729798-01 is part of the Type XHI series and is manufactured on the proven Model 861 platform, which has been widely used in industrial motion control applications requiring durability and precision. It is supplied with a Ø16 mm blind hollow shaft, allowing direct installation on compatible motor shafts or driven equipment while minimizing additional mechanical components. The 86 flange configuration supports straightforward integration with a broad range of industrial machinery.  The 729798-01 is intended for these conditions by combining a rugged mechanical structure with an insulated shaft design that helps reduce bearing current issues and unnecessary wear. This makes it well suited for equipment operating in steel production, mining, paper manufacturing, marine systems, and other heavy industrial processes where reliability is essential and unexpected downtime can interrupt production. The 729798-01 operates from a 9–30 VDC power supply and provides HTL output signals, delivering reliable digital pulse transmission in installations with long cable runs or electrically noisy environments. Electrical connection is made through a radial cable outlet fitted with an M20 cable gland for Ø8–11 mm cables, providing secure cable routing and dependable sealing. The encoder supports six output channels, allowing incremental position feedback together with complementary signals for improved transmission reliability. For applications requiring additional condition monitoring, an Advanced Diagnostic System is available as an option, enabling encoder status monitoring and predictive maintenance to help reduce unplanned equipment stoppages.

Parameter

Model: 729798-01 Heavy-duty Hollow Shaft Encoder
Operating temperature -20 °C to +85 °C
Ingress protection class: IP67 (IP66 at shaft inlet)
Vibration: ≤ 20 g, 55-2000 Hz
Shock: ≤ 400 g, 3.5 ms
Shaft load max: 500 N / 1200 N
Incremental output load (max): ± 40 mA
Cable length max: 350 m at 100 kHz
Rotational speed max: 6000 rpm

Frequently asked questions

What supply voltage is required for the 729798-01?
The unit operates from a 9–30 VDC power supply, making it compatible with a wide range of industrial control equipment.

Is diagnostic monitoring available for the 729798-01?
Yes. An Advanced Diagnostic System can be provided as an optional feature to support condition monitoring and predictive maintenance.

What output interface does the LEINE LINDE 729798-01 provide?
The encoder uses a High Current HTL (HCHTL) output interface, offering strong signal transmission for industrial automation systems and long cable installations.

Application areas:
High Shock Resistance: Withstands mechanical shock up to 1500 m/s² and vibration up to 200 m/s² in heavy machinery.
Wind Power Gen-sets: Generator speed measurement and pitch control systems exposed to severe outdoor climates.
Large Electrical Motor Drives: Closed-loop speed regulation for high-power AC/DC industrial motors.
