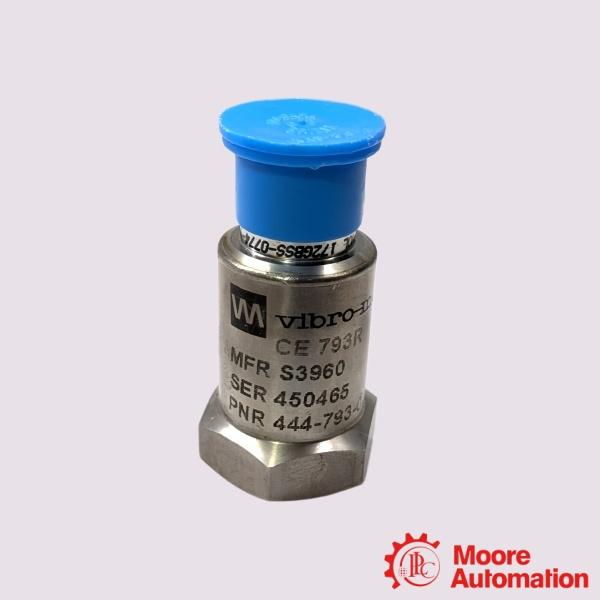

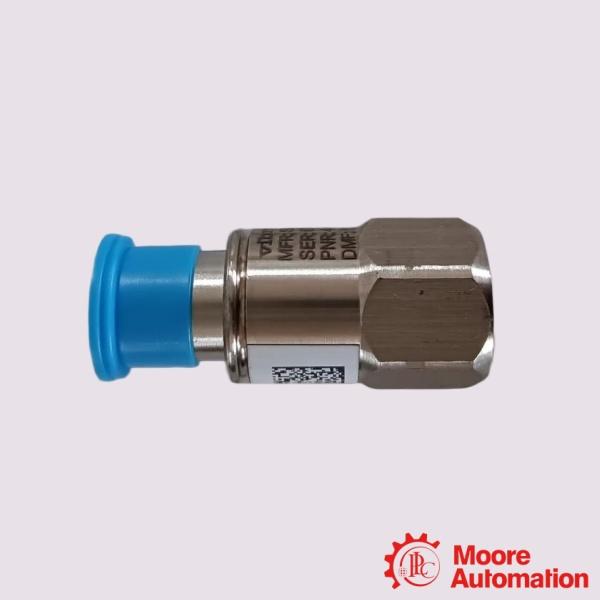

Vibro-Meter S3960 444-680-000-511 general purpose vibration sensor

Brand/ Manufacturer:
Vibro-Meter
Dimensions:
5.3 x 2.2 x 1.9cm
Weight:
0.9kg
Country of Origin: :
Switzerland
Description:
Vibro-Meter S3960 444-680-000-511 general purpose vibration sensor

Inquiry now

Part Number:	S3960 444-680-000-511

Manufacturer:	Vibro-Meter

Description:	S3960 444-680-000-511 is a general-purpose vibration sensor

Full Description:	This sensor features a 100 mV/g output sensitivity, isolated grounding, shear-mode sensing, and a hermetically sealed construction

Moore Automation Limited is not affiliated with or a distributor for Vibro-Meter. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Sales manager: Tiffany Guan plcsale@mooreplc.com + 86 18030235313 2851195473

Description

The Vibro-Meter S3960 444-680-000-511 is a piezoelectric accelerometer with integrated electronics designed for reliable vibration measurement on industrial machinery operating in harsh environments. It uses a 2-wire constant-current power supply with a 100 mV/g output sensitivity, features isolated grounding and internal shielding to minimize electrical interference and ground loops, and employs shear-mode sensing to eliminate errors caused by thermal transients. With a frequency response of 1 Hz to 9 kHz (±10%), an operating temperature range of −50 °C to +120 °C, and a hermetically sealed construction, it provides stable, low-noise performance for continuous machinery condition monitoring.

Parameter

Model: S3960 444-680-000-511 general purpose vibration sensor
Dynamic Range: ±80 g
Temperature Range: −50 °C to +120 °C
Transverse Sensitivity: < 5%
Supply Current: 0.5 mA to 8 mA
Supply Voltage: 18 VDC to 30 VDC
Frequency Response: 1 Hz to 9 kHz (±10%)
Output Sensitivity : 100 mV/g

Frequently asked questions

Q:What is the Vibro-Meter S3960 444-680-000-511?
A:The Vibro-Meter S3960 444-680-000-511 (CE680 M511) is a piezoelectric accelerometer with integrated electronics designed for continuous vibration monitoring of industrial machinery operating in harsh environments.

Q:What power supply does the Vibro-Meter S3960 444-680-000-511 require?
A:The accelerometer uses the industry-standard 2-wire constant-current power supply and operates with a 2–10 mA constant current source and 18–30 VDC supply voltage.

Q:What is the operating temperature range?
A:The CE680 M511 is designed for medium-temperature industrial applications with a continuous operating temperature range of −50 °C to +120 °C.

Application areas

The Vibro-Meter S3960 444-680-000-511 is a low-noise piezoelectric accelerometer. It is widely used for absolute vibration severity monitoring of machinery across various harsh industrial environments,include:

Power Generation & Utilities: Used in auxiliary workshops of thermal, gas turbine, and hydro power plants to perform continuous condition monitoring on critical rotating machinery.
Heavy Manufacturing & Pulp & Paper: Providing continuous asset protection in high-vibration and high-humidity environments, such as dryer bearings in paper mills, rolling mills in metallurgical plants, and large crushers in cement plants.
Petrochemical & Refining: Installed at large crude/refined oil pumping stations and refinery draft fans within non-hazardous general industrial sites.
