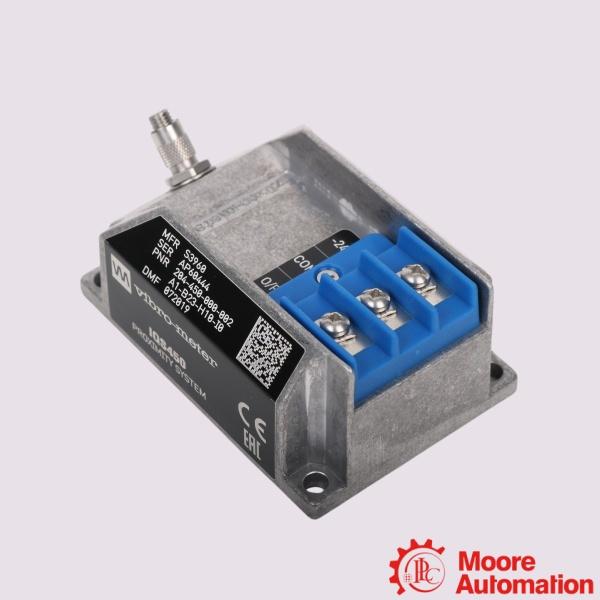

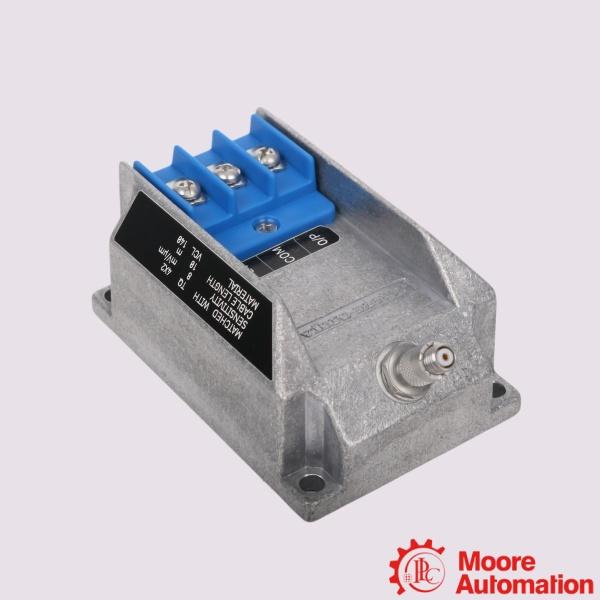

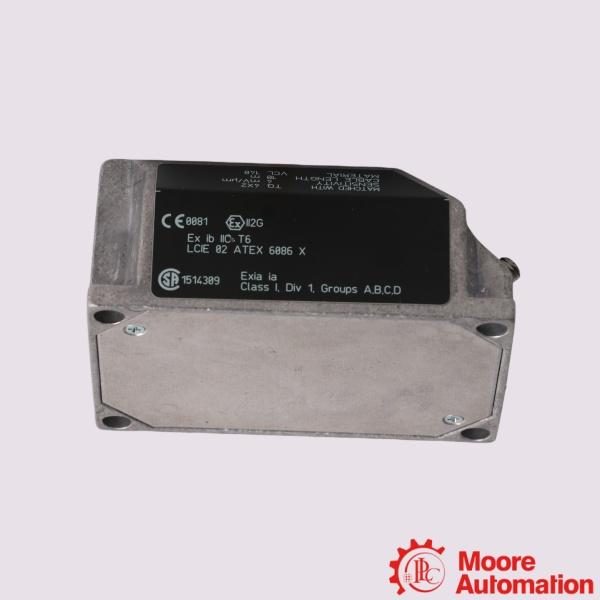

Vibro-Meter IQS450 S3960 204-450-000-002-A1-B23-H5-I0 Eddy Current Signal Conditioner

Description

The Vibro-Meter IQS450 S3960 204-450-000-002-A1-B23-H5-I0 is an eddy-current signal conditioner designed to work with the TQ42x proximity transducer and EA402 extension cable for accurate non-contact measurement of shaft vibration, axial position, and displacement in rotating machinery. It provides the excitation signal required by the transducer and converts the measured gap into a stable analog output for machinery protection and condition monitoring systems. This version offers a 4 mm linear measuring range, 4 mV/μm sensitivity, DC to 20 kHz frequency response, and a 5 m system length, making it suitable for continuous monitoring of critical equipment such as steam turbines, gas turbines, compressors, pumps, and generators.

Parameter

Model: IQS450 S3960 204-450-000-002-A1-B23-H5-I0 Eddy Current Signal Conditioner
System Length: 5 m
Linear Range: 4 mm
Sensitivity: 4 mV/µm (4 V/mm)
Frequency Response: DC (0 Hz) to 20,000 Hz (20 kHz)
Environment: Standard
Operating Temp: −40 °C to +85 °C
Output Impedance: 500 Ω
Output Inductance: 100 μH

Frequently asked questions

Q:What is the Vibro-Meter IQS450 S3960 204-450-000-002-A1-B23-H5-I0?
A:The S3960 GSI127 244-127-000-017 A1-B02 is a galvanic separation unit designed to provide electrical isolation and sensor power supply in Vibro-Meter vibration monitoring systems, ensuring reliable and interference-free signal transmission.

Q:What measuring range does the A1-B23-H5-I0 configuration provide?
A:This configuration provides a 4 mm linear measuring range with a nominal sensitivity of 4 mV/μm, making it suitable for applications requiring a wider measurement range.

Q:What is the frequency response of the IQS450 system?
A:The system provides a DC to 20 kHz (-3 dB) frequency response, enabling accurate measurement of both static shaft position and dynamic vibration.

Application areas

The Vibro-Meter IQS450 S3960 204-450-000-002-A1-B23-H5-10 features a large 4 mm linear measuring range (B23) and a sensitivity of 4 mV/μm. Within the industrial monitoring chain, it is responsible for providing high-frequency, high-voltage excitation to the TQ42x proximity transducer and converting the micro-gap variations captured by the probe into a highly linear analog voltage output.

• Conventional & Combined-Cycle Power Generation: Widely deployed inside the central control cabinets of heavy thermal, gas turbine, and large hydro power plants, focusing on protecting the axial safety of critical turbomachinery.
• Oil, Gas & Petrochemical Transmission: Configured within the control rooms of refineries, natural gas pipeline booster stations, and major ethylene plants as a core pre-conditioning unit for online Machinery Protection Systems (MPS).
• Heavy Industrial Utilities: Applied in the high-voltage switchgear rooms of large steel mill blast furnace blowers, paper mill power workshops, and major air separation units.
