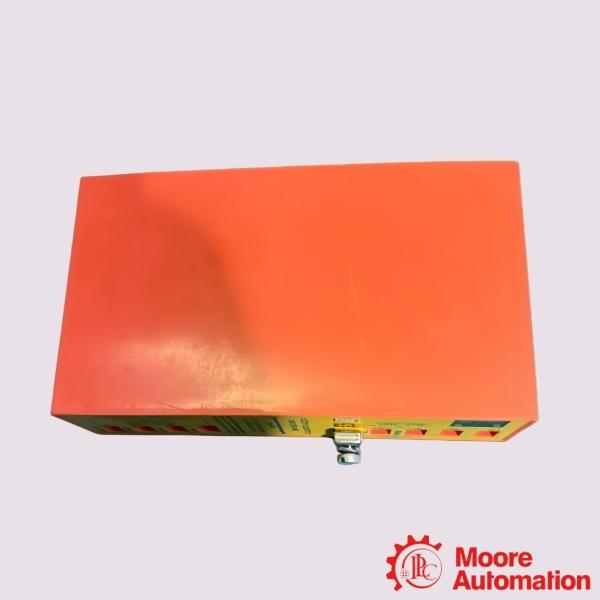

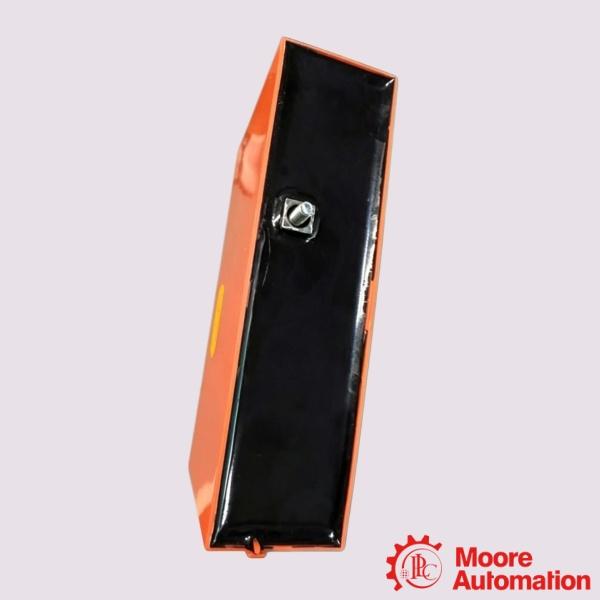

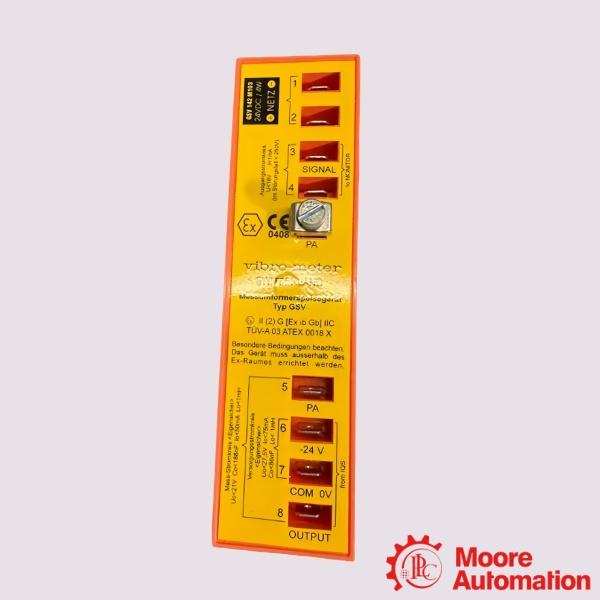

Vibro-Meter GSV142 244-142-000-103 Transmitter Power Supply and Safety Barrier module

Parameter
Model: GSV142 244-142-000-103 Transmitter Power Supply and Safety Barrier module
Input Voltage: 24 V DC (18 ~ 30 V DC)
Rated Current (Loaded): ≤ 80 mA (at 24 V DC)
Power Consumption: ≤ 2.0 W
Frequency Response: DC ~ 20 kHz (-3 dB)
Operating Temperature: -20 °C ~ +60 °C (-4 °F ~ +140 °F)
Storage Temperature: -40 °C ~ +85 °C (-40 °F ~ +185 °F)
Mounting Type: Standard 35mm DIN Rail
Max. Safety Voltage: 250 V AC / DC
Max. Output Current : 93 mA

Description

The Vibro-Meter GSV142 244-142-000-103 is a transmitter power supply and safety barrier module designed for use with Vibro-Meter proximity measurement systems. It supplies power to the signal conditioner while providing intrinsic safety isolation and reliable signal transmission to the monitoring system. Its rugged industrial design ensures stable operation and dependable performance in continuous machinery monitoring applications, including installations in hazardous areas.

Frequently asked questions

Q:What is the Vibro-Meter GSV142 244-142-000-103?
A:The GSV142 244-142-000-103 is a transmitter power supply and safety barrier module designed for Vibro-Meter machinery monitoring systems. It supplies power to compatible field devices while providing intrinsic safety and reliable signal transmission between hazardous and safe areas.

Q:What is the primary function of the GSV142 module?
A:Its primary function is to provide a stable power supply for connected transmitters or signal conditioners while acting as an intrinsic safety barrier that protects monitoring equipment and supports safe installation in hazardous locations.

Q:Which systems is the GSV142 compatible with?
A:The GSV142 is intended for use with Vibro-Meter proximity measurement and machinery condition monitoring systems that require a compatible transmitter power supply and safety barrier interface.

Application areas

The Vibro-Meter GSV142 244-142-000-103 is deployed in sectors where continuous machinery protection and condition monitoring are critical to prevent catastrophic failures.

• Gas & Steam Turbines: Monitoring shaft vibration, axial displacement, and thermal expansion in high-speed turbines.
• Nuclear Power Plants: Providing intrinsically safe signal isolation for secondary loop cooling pumps and main turbine monitoring.

• Aggressive Fluid Pumps: Supplying safe power to proximity probes monitoring the shaft seals and bearings of chemical transfer pumps.
• LNG Liquid Pumps & Expanders: Monitoring cryogenic machinery used in LNG transport and storage terminals.
