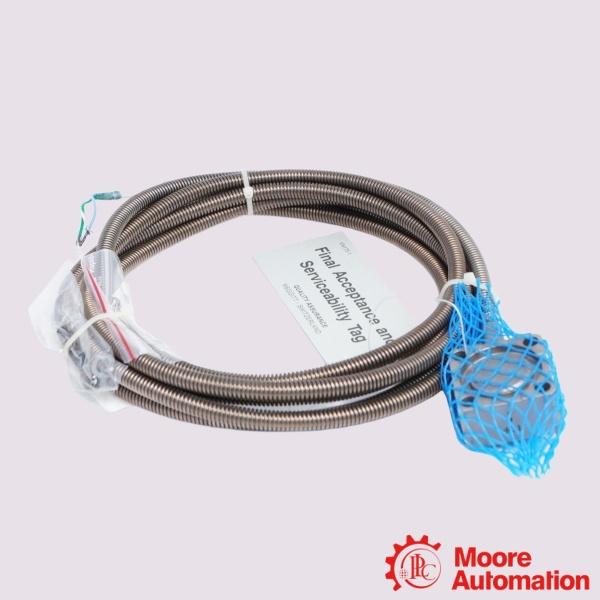

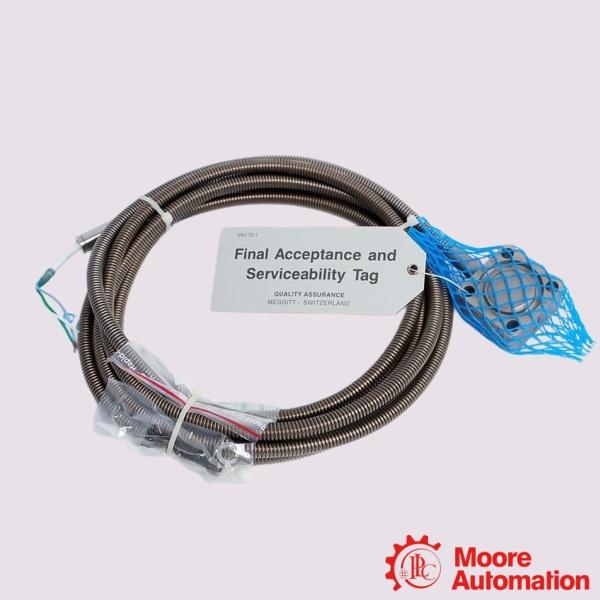

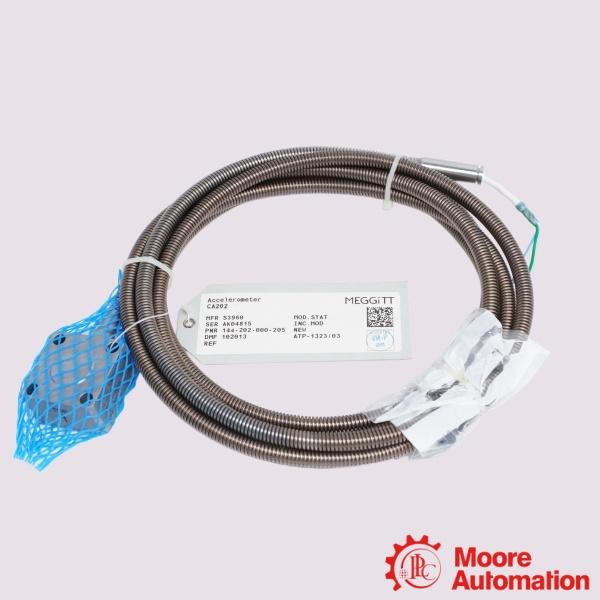

Vibro-Meter CA202 144-202-000-205 heavy-duty ⁠piezoelectric accelerometer

Parameter
Model: CA202 144-202-000-205 heavy-duty ⁠piezoelectric accelerometer
Compatible Converter: Vibro-Meter IPC70x series
Frequency Response: 0.5 Hz to 6,000 Hz (6 kHz)
Charge Sensitivity: 100 pC/g
Integral Cable Length: 3 m
Operating Temp: −55°C to +260°C
Dynamic measurement range: 0.01 to 400 g peak
Overload capacity (spikes): Up to 500 g peak
Transverse sensitivity: ≤3%
Resonant frequency: >22 kHz nominal

Description

The Vibro-Meter CA202 144-202-000-205 is a heavy-duty piezoelectric accelerometer designed for continuous vibration monitoring of critical rotating machinery in harsh industrial environments. It incorporates a symmetrical shear-mode polycrystalline sensing element with internal case insulation, providing high measurement stability while minimizing the effects of electrical interference, base strain, and thermal variations. The sensor delivers a charge output of 100 pC/g, offers a frequency response of 0.5 Hz to 6 kHz, and measures vibration over a dynamic range of 0.01 g to 400 g peak. Its hermetically sealed austenitic stainless-steel housing and integral low-noise cable protected by a flexible stainless-steel hose ensure reliable operation in environments with high temperatures, moisture, dust, and mechanical stress. The CA202 144-202-000-205 is the standard version with a 3 m integral cable and is intended for use with Vibro-Meter IPC70x series charge converters.

Frequently asked questions

Q:What is the Vibro-Meter CA202 144-202-000-205?
A:The Vibro-Meter CA202 144-202-000-205 is a heavy-duty piezoelectric accelerometer designed for continuous vibration monitoring and measurement of critical rotating machinery in harsh industrial environments.

Q:What applications is the CA202 144-202-000-205 designed for?
A:It is used for vibration monitoring of gas turbines, steam turbines, compressors, pumps, generators, motors, and other rotating equipment in machinery protection and condition monitoring systems.

Q:What is the sensitivity of the CA202 144-202-000-205?
A:The sensor has a nominal sensitivity of 100 pC/g (±5%), providing accurate and stable charge output for vibration measurement.

Application areas

The Vibro-Meter CA202 144-202-000-205 is designed for long-term vibration monitoring in harsh industrial environments, particularly where high temperatures and reliable machinery protection are required. Typical application areas include:

• meIndustrial Generators: Tracks casing vibrations. The internal case insulation is crucial here, as it blocks massive electromagnetic noise and prevents ground loop interference.
• Large Process Pumps: Tracks absolute bearing frame vibrations in refineries to forecast mechanical seal degradation and impeller faults.

• Industrial vibration monitoring: in power generation, oil & gas, petrochemical, and process industries.
