Product Description:

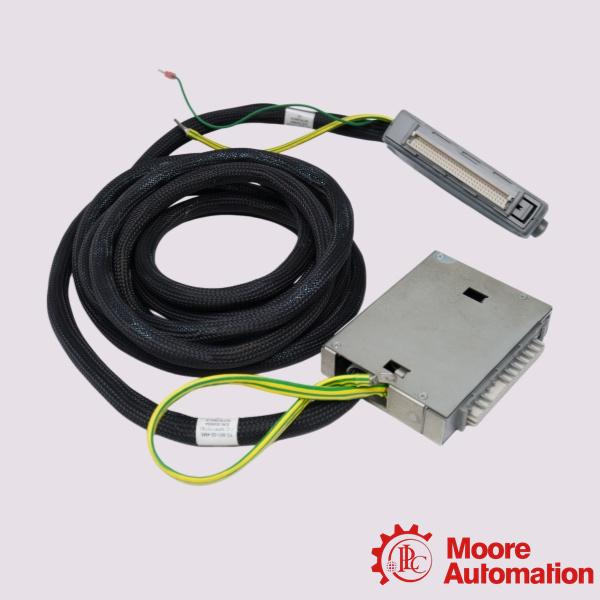

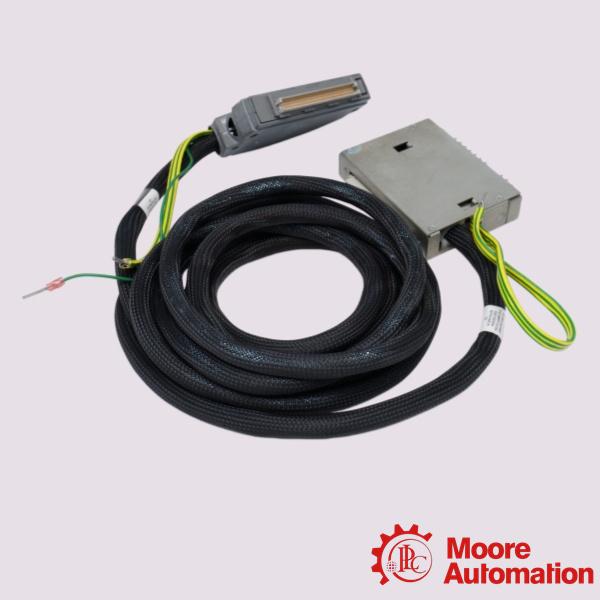

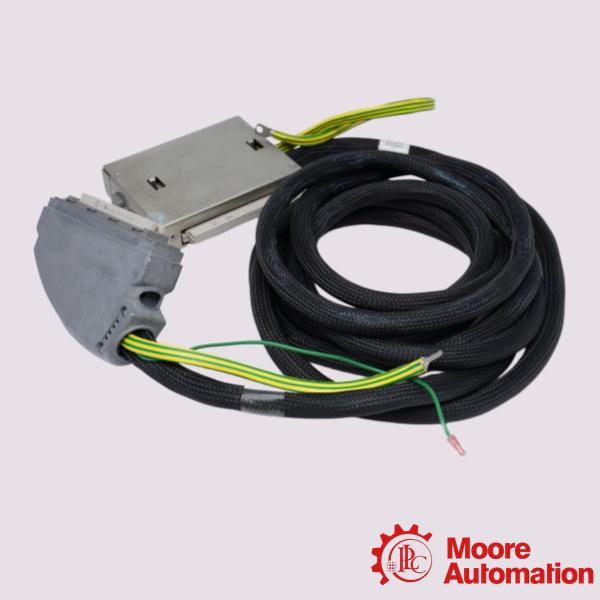

The ICS TRIPLEX TC-505-02-4M5 is a I/O Companion Slot SmartSlot Cable for the Trusted Triple Modular Redundant (TMR) safety system. It is used to transmit safety-critical signals between 40-channel I/O modules (such as digital or analog output/input modules) and Field Termination Assemblies (FTAs).

Three multi-core cables are used for this application. The chassis end of the multi-core cableis fitted with a 96-way type ‘C’ connector housed in a single-width hood (TC-500). The nonchassis end of multi-core 1 is fitted with a 96-way type ‘R’ connector housed in asingle-width hood enabling connection to an FTA. The non-chassis end of multi-core 2 isfitted with a 5-way Weidmuller BLZF 3.5 series connector enabling the cable to beterminated at a T8290 Output Power Distribution Unit. This cable is used for field powerreturn. The non-chassis end of multi-core 3 is fitted with a 6-way AMP plug used to connectpower to the field from a T8290 or T8297 and is made up of five individual 2.5 mm wirescontained within Rilgain sleeving.

Application:

Power Generation Turbine Panels: Applied in gas turbine and steam turbine control cabinets for high-integrity I/O communication and monitoring networks.
Petrochemical Processing Units: Installed in refinery automation systems to support reliable signal routing in hazardous and continuous-operation environments.
Oil & Gas Compression Stations: Utilized in compressor control and emergency shutdown systems requiring stable multi-channel communication cabling.
Industrial Process Automation Cabinets: Integrated into large-scale PLC and DCS installations for organized high-density field wiring connections.

Frequently Asked Questions (FAQ)

Q: Can TC-505-02-4M5 be installed in environments with continuous machine vibration?
A: Yes, the cable assembly is designed for industrial environments where moderate vibration and mechanical movement are present.

Q: Is TC-505-02-4M5 shielding included to reduce electrical interference in control cabinets?
A: The assembly is intended for industrial signal transmission applications where shielding and signal integrity are important for stable communication.

Q: Does TC-505-02-4M5 support long-term continuous operation in process industries?
A: The cable is designed for continuous-duty industrial applications requiring stable and reliable interconnection performance.
