Product Description:

The ICS TRIPLEX TC-501-02-8M5 is an industrial Trusted TMR I/O SmartSlot Cable manufactured by Rockwell Automation (under the ICS Triplex brand). It connects digital or analog input modules to Field Termination Assemblies (FTAs) or internal terminal blocks within critical safety systems.

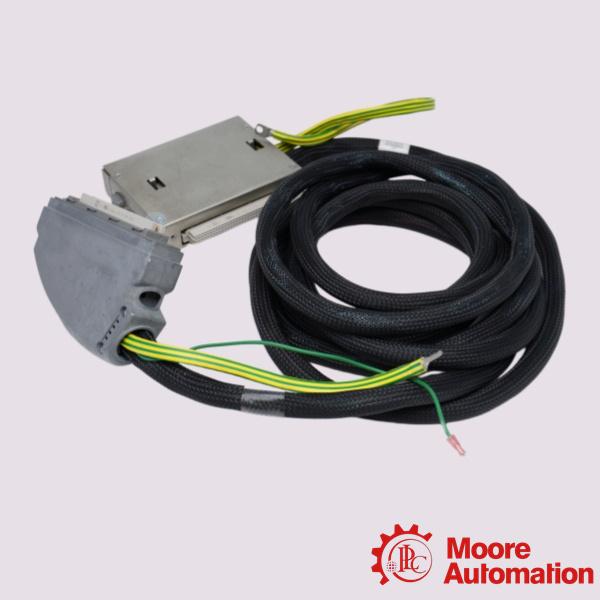

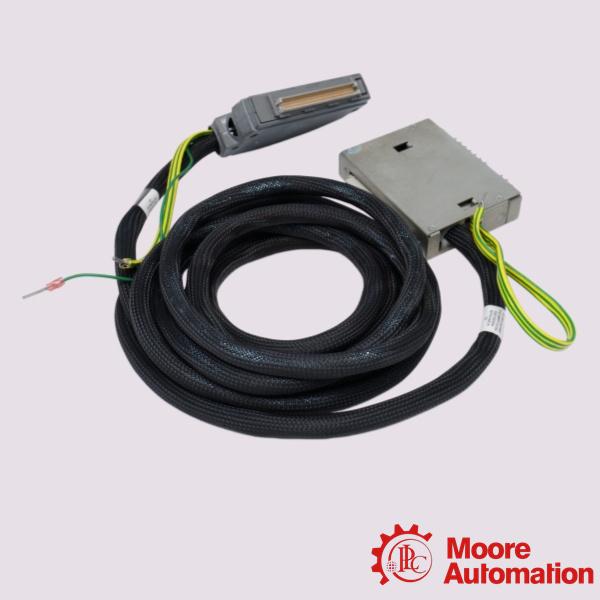

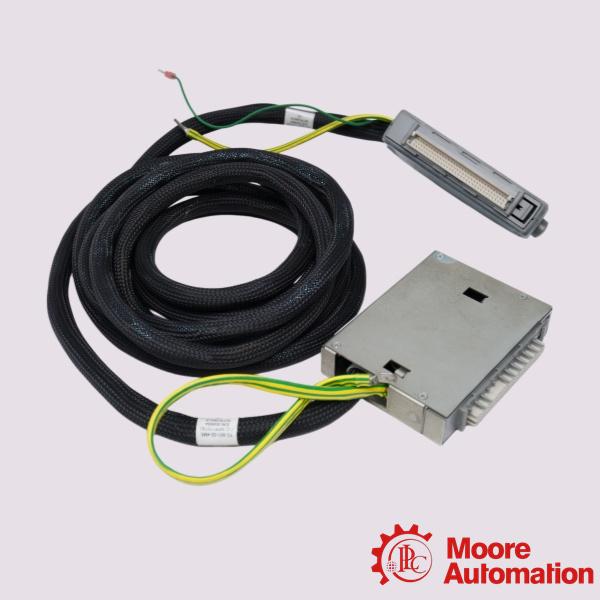

This type of Trusted I/O SmartSlot Cable is designed for use with analogue or digital inputmodules and is suitable for connecting input signals from an internal FTA to the module.The chassis end of the multi-core cable is fitted with a 96-way type ‘C’ connector housed in asingle-width hood (type TC-500). The other end of the cable is fitted with a 96-way type ‘R’connector housed in a single-width hood enabling the cable to be connected to an FTA.The multi-core cable is stripped back 1.5 m at both ends, then shrouded in nylon Rilgainsheathing. The ends of the sheathing are heated or fitted with over sleeving to help preventfraying.

Application:

Power Generation Turbine Panels: Applied in gas turbine and steam turbine control cabinets for high-integrity I/O communication and monitoring networks.
Petrochemical Processing Units: Installed in refinery automation systems to support reliable signal routing in hazardous and continuous-operation environments.
Oil & Gas Compression Stations: Utilized in compressor control and emergency shutdown systems requiring stable multi-channel communication cabling.
Industrial Process Automation Cabinets: Integrated into large-scale PLC and DCS installations for organized high-density field wiring connections.

Frequently Asked Questions (FAQ)

Q: Does the TC-501-02-8M5 support high-density signal transmission?
A: Yes, it is designed with 40 available channels for multi-signal industrial communication requirements.

Q: Is the TC-501-02-8M5 intended for low-voltage industrial systems?
A: Yes, the assembly is commonly used in 24 VDC control architectures with a maximum allowable voltage of 60 VDC.

Q: Is the TC-501-02-8M5 intended for fixed installation applications?
A: Yes, the cable is generally used as a fixed industrial interconnect within control panels and equipment racks.
