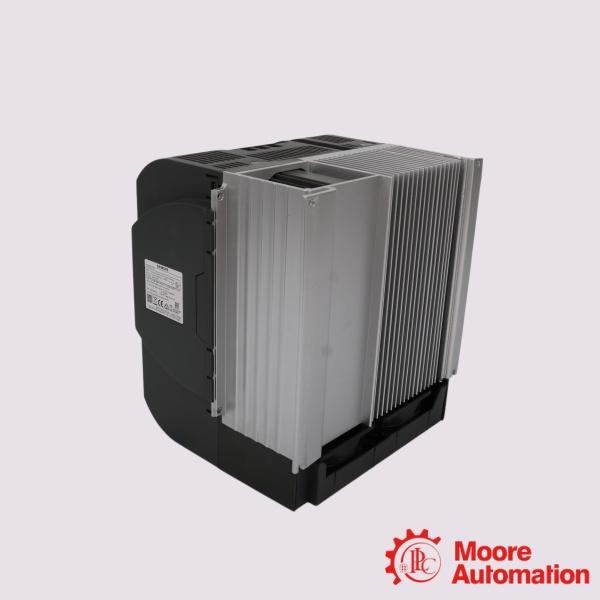

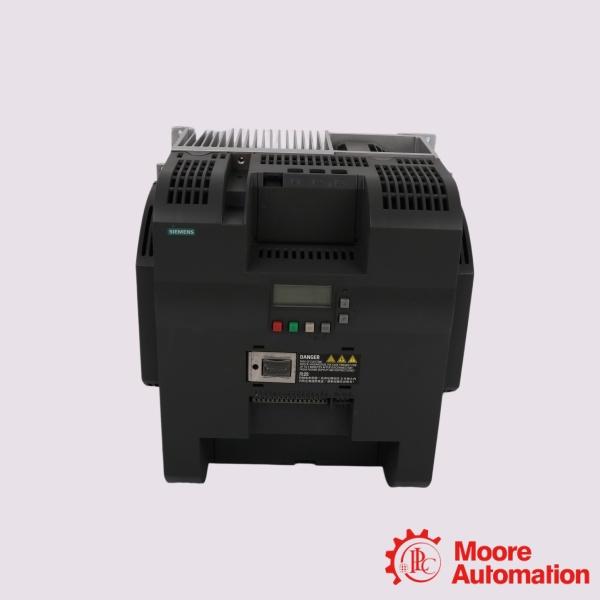

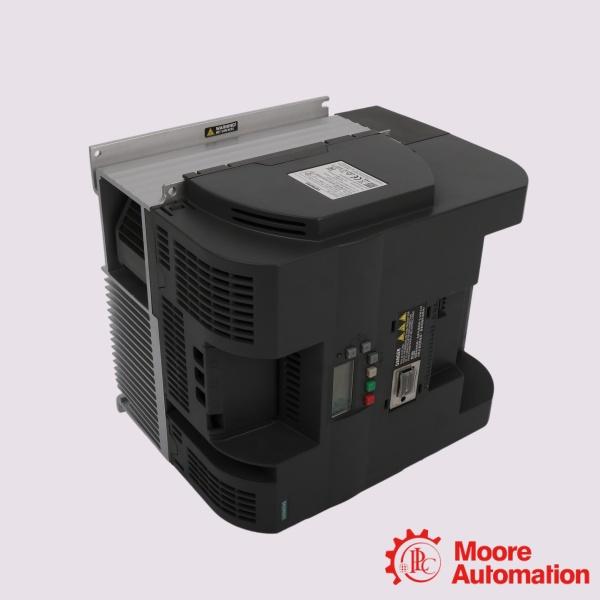

Siemens 6SL3210-1PE31-8AL0 SINAMICS G120 PM240-2 Power Module

Parameter

Model: 6SL3210-1PE31-8AL0 SINAMICS G120 PM240-2 Power Module
Enclosure / IP Rating: IP20 / UL open type
Number of Phases: 3-phase AC
Line Voltage Supply: 380 V-480 V AC
Line Voltage Tolerance: -20% to +10%
Line Frequency Range: 47 Hz-63 Hz
Rated Output Voltage: 400 V IEC / 480 V NEC
Output Frequency Range: 0 Hz-550 Hz (for V/f or Vector control)
Operating Temp. (LO): -20 °C to +40 °C (-4 °F to 104 °F)
Operating Temp. (HO): -20 °C to +50 °C (-4 °F to 122 °F)

Description

The Siemens 6SL3210-1PE31-8AL0 is a SINAMICS G120 PM240-2 Power Module designed for operation with compatible SINAMICS G120 Control Units. It is rated for a three-phase 380–480 V AC supply and delivers a 75 kW output with an output current of 145 A in low-overload applications. The module features an integrated braking chopper, supports high and low overload operating modes, and has an IP20 degree of protection for installation in control cabinets. It also includes a Built-in Class A line filter, supports Safe Torque Off (STO) through the connected Control Unit, and is designed for use in variable-speed drive applications such as pumps, fans, compressors, conveyors, and other industrial machinery.

Frequently asked questions

What is the Siemens 6SL3210-1PE31-8AL0?
The 6SL3210-1PE31-8AL0 is a SINAMICS G120 PM240-2 Power Module with a built-in Class A line filter and an integrated braking chopper, designed for use with compatible SINAMICS G120 Control Units.

Does the 6SL3210-1PE31-8AL0 include a Control Unit?
No. This model is supplied without a Control Unit or operator panel and must be used with a compatible SINAMICS G120 Control Unit.

What are the main features of the 6SL3210-1PE31-8AL0?
Key features include a 380–480 V AC input, 75 kW (HO) / 90 kW (LO) output rating, built-in Class A line filter, integrated braking chopper, IP20 protection, and compatibility with SINAMICS G120 Control Units.

Application areas:
Industrial Boiler Feed Pumps: Works with medium-sized industrial boilers to dynamically adjust line pressure and fluid flow via closed-loop sensor tracking.

Factory & Mine Forced Ventilation Fans: Used in deep underground shafts, enclosed production floors, or major highway tunnels to provide reliable, high-volume air extraction.

Chain & Scraper Conveyors: Withstands persistent friction resistance and heavy transient impact loads under severe industrial environments.
