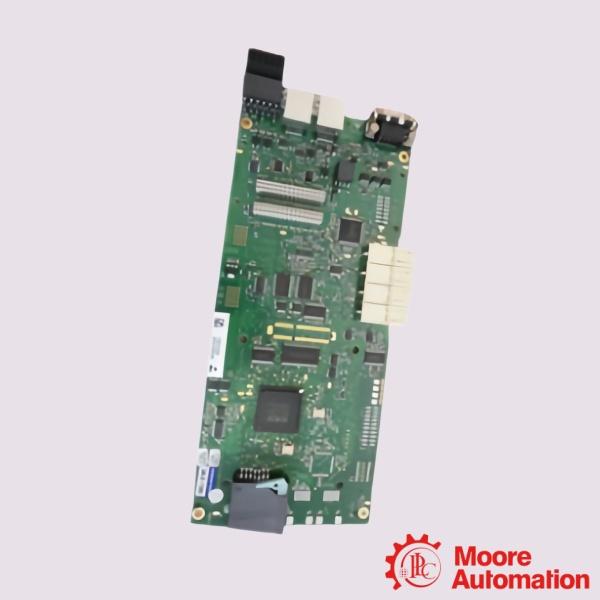

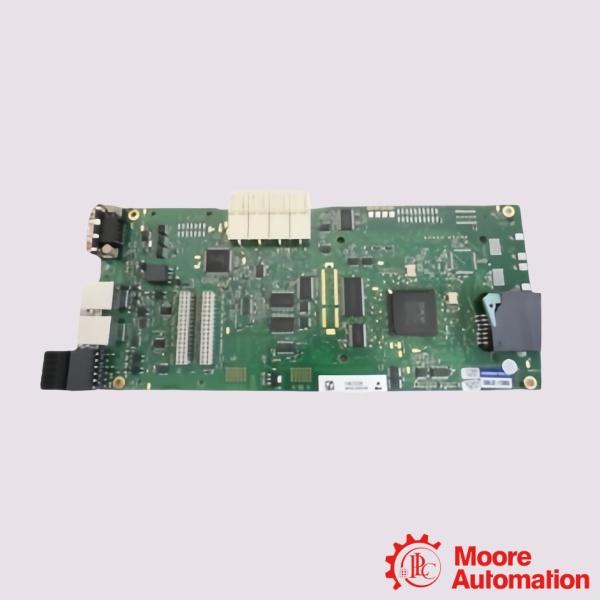

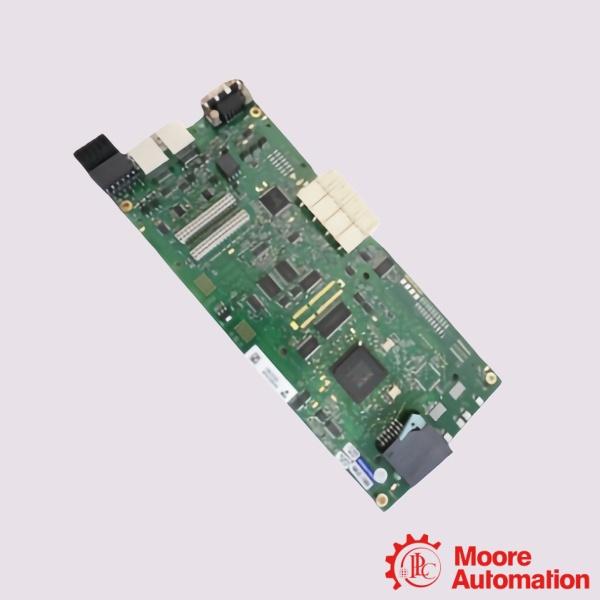

Siemens A5F00133580-014 C98043-A7100 CUD Control Unit Board

Parameter

Model: A5F00133580-014 C98043-A7100 CUD Control Unit Board
Internal Processing Base Power: 24 VDC (±15% tolerance range via converter rail)
Discrete Input Capacities: 8x Standard Digital Inputs (Configurable)
Discrete Output Capacities: 4x Bidirectional Digital Inputs/Outputs
Analog Command Channels: 2x Analog Outputs (Non-isolated)
Firmware Slot Capability: 1x Dedicated CompactFlash Card Slot
Digital High-Level Voltage: 15 V to 30 V DC (Typical load current: ~6 mA)
Analog Input Range: -10 V to +10 V DC

Description

The Siemens A5F00133580-014 C98043-A7100 is a CUD Control Unit Board used in the SINAMICS DCM DC Converter system. The control unit handles the main control functions of the converter and works together with other SINAMICS DCM components to manage drive operation and system communication. The C98043-A7100 control board is installed as part of the SINAMICS DCM control electronics assembly. It processes control tasks, manages internal system functions, and provides the hardware platform required for converter control operations. The board is identified by its CUD hardware designation, which is used for matching compatible firmware versions within the SINAMICS DCM system. The A5F00133580-014 version is used as a replacement control unit component for existing SINAMICS DCM installations. The CUD module works with the DC converter hardware to support commissioning, parameter configuration, monitoring, and maintenance activities during the operation of DC drive systems. The Siemens C98043-A7100 Control Unit Board is applied in industrial DC drive systems where SINAMICS DCM converters are used for motor control applications. It is commonly found in industrial equipment requiring controlled DC motor operation, including manufacturing systems and process-related drive installations.

Frequently asked questions

What types of signals can the C98043-A7100 process?
The C98043-A7100 Control Unit supports evaluation of analog and binary inputs and outputs, motor temperature sensor signals such as KTY84 / PTC / PT100 / NTC, and pulse encoder evaluation functions

Is the A5F00133580-014 C98043-A7100 a complete SINAMICS DCM drive?
No. The A5F00133580-014 C98043-A7100 is a control unit component used inside a SINAMICS DCM system. It operates together with other converter hardware modules.

What is the main function of the C98043-A7100 Control Unit?
The C98043-A7100 CUD handles processor-based control functions for SINAMICS DCM systems. It is involved in open-loop and closed-loop control tasks, signal processing, and communication with other converter components.

Application areas:
Cranes, Hoists, and Material Handling: Integrated into the drive electronics of high-capacity container cranes, shipyard gantry hoists, and heavy industrial winches to execute stable, dynamic hoisting control loops.

General Manufacturing Automation: Functions within complex factory production lines where vintage or high-torque DC motor infrastructure is utilized for machine tool spindles or high-inertia extrusion machinery.

Metal and Rolling Mills: Deployed in steel and aluminum processing facilities to manage heavy-duty DC motors driving roll stands, coilers, uncoilers, and wire drawing machinery requiring precise torque and speed control.
