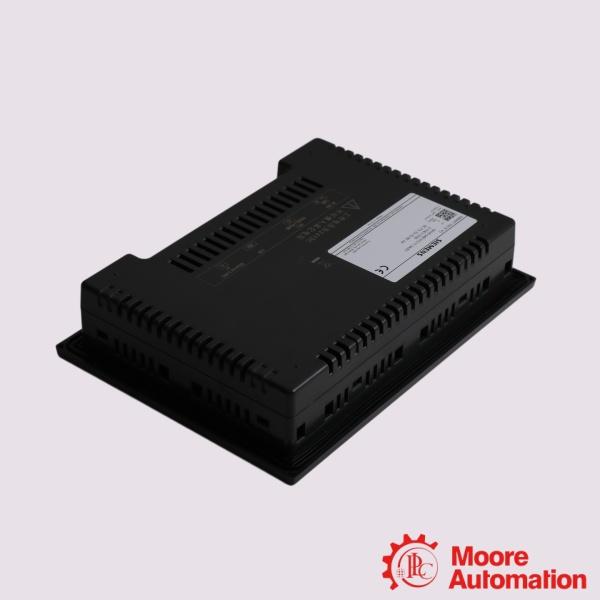

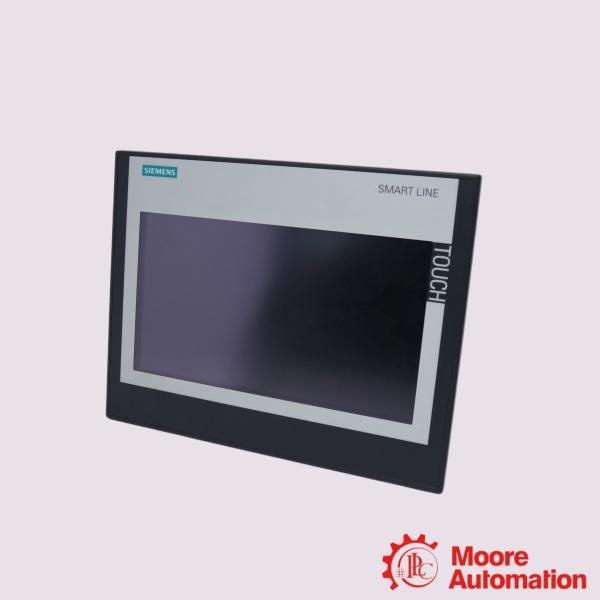

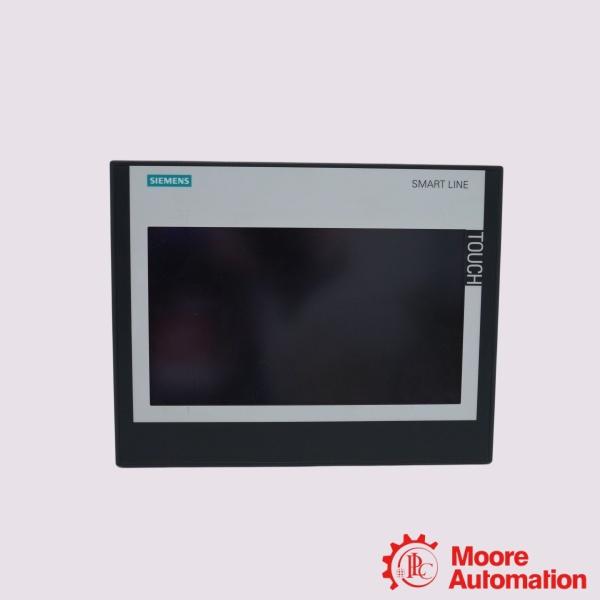

Siemens 6AV6648-0EC11-3AX0 SIMATIC HMI SMART 700 IE V5 operator panel

Description

The Siemens 6AV6648-0EC11-3AX0 is a SIMATIC HMI SMART 700 IE V5 operator panel designed for monitoring and controlling industrial automation equipment. It features a 7-inch widescreen TFT display with 16 million colors and a touchscreen interface for operator interaction. The panel is equipped with an Ethernet (RJ45) port, RS-232/RS-422/RS-485 serial communication interfaces, and a USB Type-A host interface for peripheral devices and data transfer. It also includes an integrated real-time clock (RTC) and is configured using WinCC flexible SMART V5 software. Designed for installation in industrial control systems, the panel provides a compact operator interface for machine operation, process visualization, parameter setting, and status monitoring.

Parameter

Model: 6AV6648-0EC11-3AX0 SIMATIC HMI SMART 700 IE V5 Operator Panel
Screen Diagonal: 7.0 in (approx. 17.78 cm)
Number of Colors: 16 Million Colors (True Color display)
Rated Supply Voltage: DC 24 V (Standard industrial voltage)
Permissible Range: DC 19.2 V-28.8 V
Housing Protection Front: IP65 (When correctly mounted into a control cabinet panel)
Storage Temp: -20 to +60 °C
Operating Temp (Landscape): 0 to 50 °C

Frequently asked questions

What is the Siemens 6AV6648-0EC11-3AX0?
The 6AV6648-0EC11-3AX0 is a SIMATIC HMI SMART 700 IE V5 operator panel designed for machine operation, monitoring, and visualization in industrial automation systems.

Does the 6AV6648-0EC11-3AX0 include a USB interface?
Yes. It includes a USB Type-A host interface for connecting supported USB devices.

Which software is used to configure the 6AV6648-0EC11-3AX0?
The panel is configured using WinCC flexible SMART V5 engineering software.

Does the 6AV6648-0EC11-3AX0 include a real-time clock?
Yes. The panel includes an integrated Real-Time Clock (RTC) for time-related functions.
