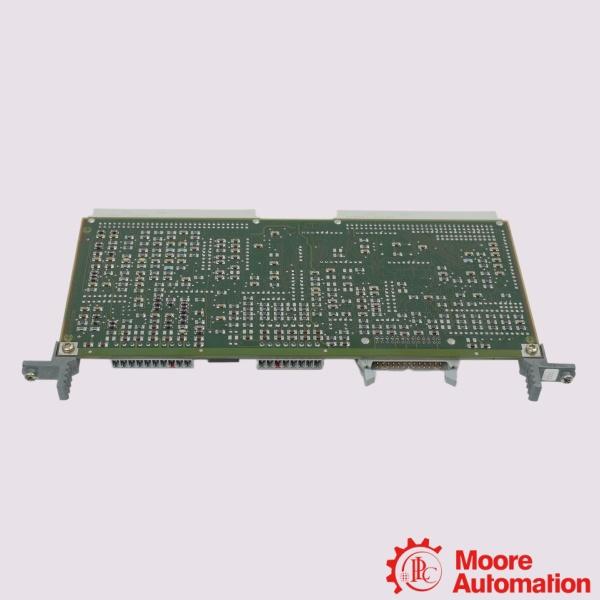

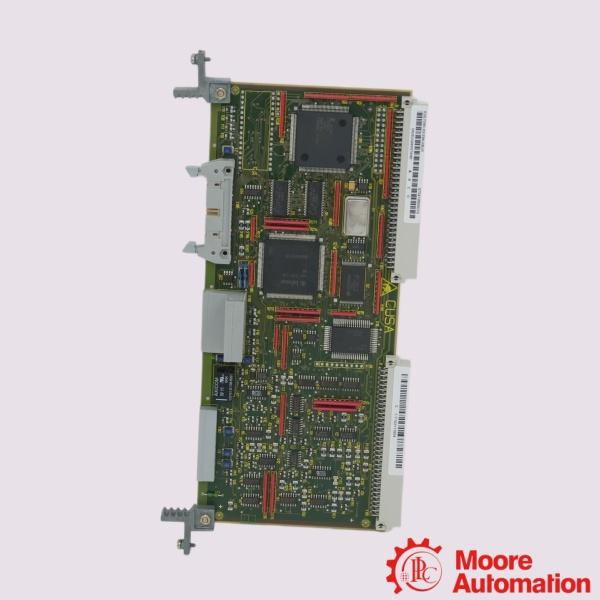

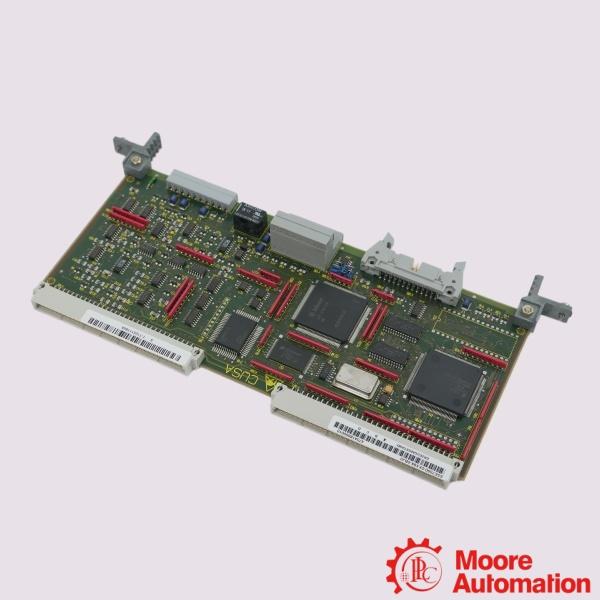

Siemens 6SE7090-0XX84-0BJ0 PROFIBUS-DP Communication Module

Description

The module uses a 9-pin D-sub connector for bus connection and supports cyclic as well as acyclic data exchange. Parameter access through PROFIBUS is available using the standard PROFIdrive profile. The module includes diagnostic functions for PROFIBUS communication, including bus status indication and fault information recording. It supports PROFIBUS DP-V1 functions for additional data exchange and is compatible with different MASTERDRIVES versions and firmware releases. The module is used for communication tasks in industrial drive systems where PROFIBUS-based control and monitoring are required. The 6SE7090-0XX84-0BJ0 supports network configurations with up to 32 slave devices and complies with the PROFIBUS standard EN 50170. It allows remote diagnostics and drive monitoring through the PROFIBUS network.

Parameter

Model: 6SE7090-0XX84-0BJ0 PROFIBUS-DP Communication Module
Transmission Rate: Up to 12 Mbit/s
Connector: 9-pin D-sub (RS-485)
Configuration: Operator panel or STARTER software
Supported Data Rates: 9.6 kbit/s up to 12 Mbit/s (Automatic detection)
Max. Station Capacity: Up to 32 slave devices per bus segment without repeaters
Pollution Degree: Pollution degree 2 acc. to IEC 664-1 (Non-condensing)

Frequently asked questions

What type of data exchange is supported by 6SE7090-0XX84-0BJ0?
The module supports PROFIBUS-based data communication, including process data exchange and parameter access through the drive communication interface. PROFIdrive-related functions are used for drive parameter communication.

What communication protocol does Siemens 6SE7090-0XX84-0BJ0 support?
The module supports the PROFIBUS-DP communication protocol. It is used for cyclic data exchange and supports PROFIBUS communication functions required for drive control applications.

What is the advantage of using the original Siemens 6SE7090-0XX84-0BJ0 module?
The original Siemens communication module matches the hardware and communication requirements specified for compatible SIMOVERT MASTERDRIVES systems and maintains the original PROFIBUS interface configuration.

Application areas:

High-Speed Textile Looms: Synchronizes auxiliary warp beam and take-up drive parameters to minimize fabric defects during continuous weaving cycles.
Multi-Tier Plastic Calendering: Syncs motor velocities across multiple heated steel roller arrays to maintain absolute polymer sheet gauge uniformity.
Flexographic Printing Cylinders: Eliminates web registration drifts by executing high-speed acyclic register corrections directly over the fieldbus layer.
