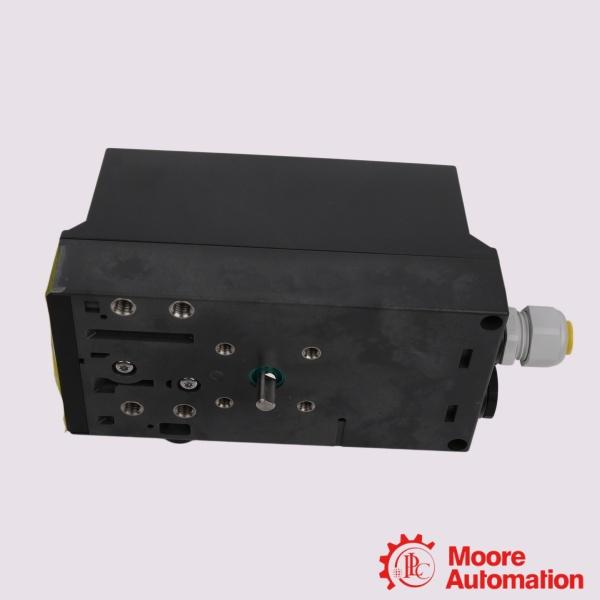

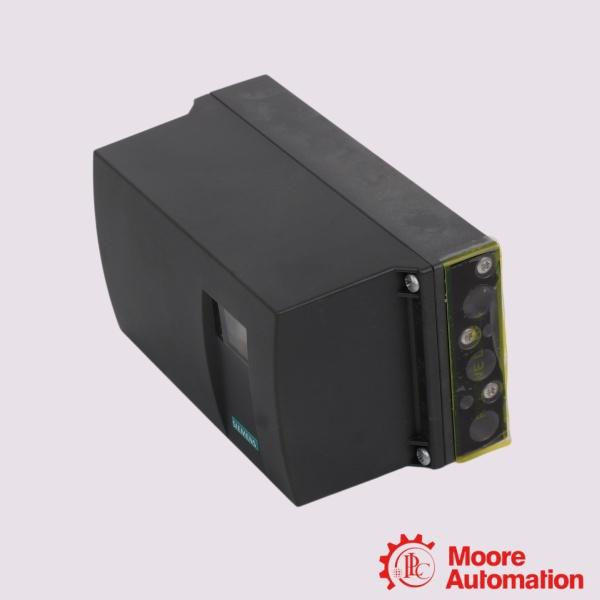

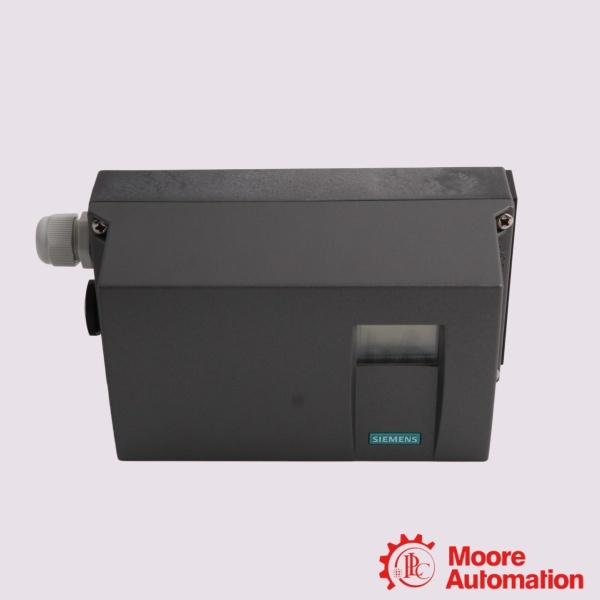

SIEMENS 6DR5020-0NG13-0AA0 SIPART PS2 smart electropneumatic positioner

Description

The Siemens 6DR5020-0NG13-0AA0 is a SIPART PS2 smart electropneumatic positioner used for controlling the position of pneumatic linear and part-turn actuators. The device receives a 4 to 20 mA control signal and adjusts the actuator position according to the input value. It is used in valve automation systems where accurate position control of pneumatic actuators is required. The 6DR5020-0NG13-0AA0 is configured for double-acting actuators and uses a polycarbonate enclosure. The positioner includes non-contacting position detection (NCS), which is used for measuring actuator travel without mechanical contact between the sensing elements. The electrical connection uses an M20 x 1.5 thread and the pneumatic connection uses a G 1/4 thread. This SIPART PS2 version includes a Digital I/O Module (DIO) configuration, providing one digital input and three digital outputs. The digital outputs can be used for position limit monitoring and fault indication functions within the valve control system. The device can be integrated into automation systems for monitoring and controlling pneumatic valves in industrial processes.

Parameter

Model: 6DR5020-0NG13-0AA0 SIPART PS2 smart electropneumatic positioner
Electrical Connection: 2-wire system
Control Signal Input: 4 to 20 mA DC
Minimum Required Operational Current: ≥ 3.6 mA
Enclosure Protection Certification: IP66 / NEMA 4X
Actuator Travel Tracking Mode: Non-Contacting Sensor (NCS)
Operating Ambient Temperature Scope: -30 °C to +80 °C (-22 °F to +176 °F)

Frequently asked questions

Which actuator types can be used with the 6DR5020-0NG13-0AA0?
The 6DR5020-0NG13-0AA0 is used with pneumatic linear actuators and part-turn actuators. The device configuration supports double-acting actuator applications.

Is the 6DR5020-0NG13-0AA0 suitable for explosion protection applications?
No. The 6DR5020-0NG13-0AA0 is listed as a version without explosion protection. Explosion-protected versions are available under different SIPART PS2 order numbers.

Does the 6DR5020-0NG13-0AA0 include a Digital I/O Module?
Yes. This version includes the Digital I/O Module (DIO) option. The DIO module provides one digital input and three digital outputs, which can be used for status and limit monitoring functions.

Application areas:

Chemical and Petrochemical Processing: Manages dosing, blending, and product transfer valves where precise fluid and gas control profiles are required to maintain strict process temperatures and flow rates.
Water and Wastewater Treatment Plants: Deployed on water treatment lines, sand filter controls, and sludge treatment blocks to operate large double-acting butterfly and gate valves regulating intake and backwash loops.
Food, Beverage, and Clean Utilities: Controls standard modulating valves on clean-in-place (CIP) steam supply lines, mixing vessels, and continuous pasteurization heat exchangers where explosive hazards are absent.
