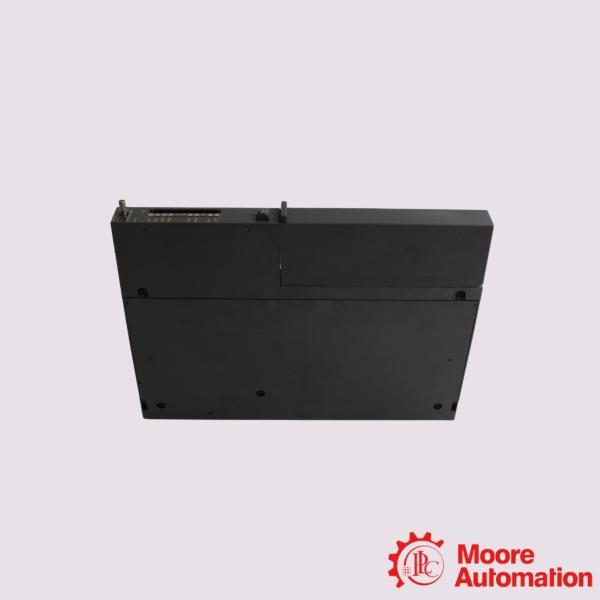

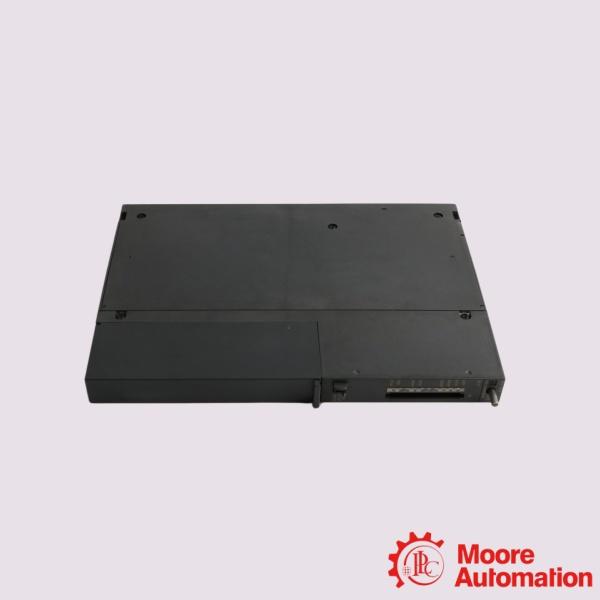

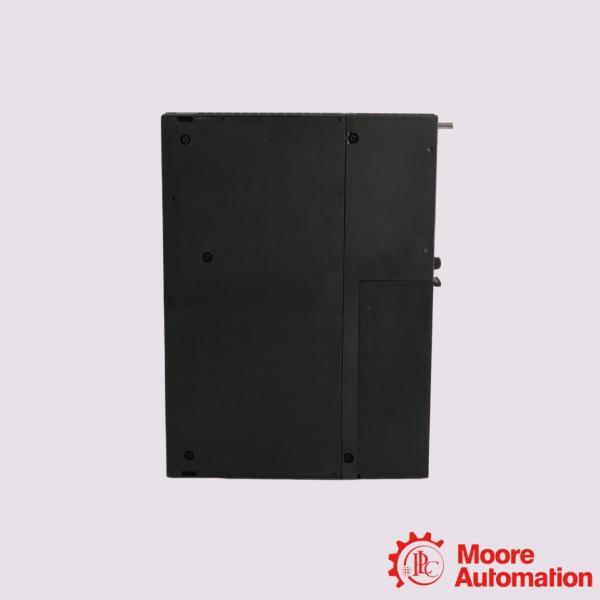

Siemens 6ES7412-2XJ05-0AB0 SIMATIC S7-400 Central Processing

Description

The Siemens 6ES7412-2XJ05-0AB0 is a SIMATIC S7-400 CPU 412-2 central processing unit designed for high-performance industrial automation and distributed control applications. It features 512 KB of integrated work memory, consisting of 256 KB for program code and 256 KB for data, providing reliable execution of automation tasks within the S7-400 platform. The CPU is equipped with two integrated communication interfaces: an MPI/DP interface supporting transmission rates up to 12 Mbit/s, and a dedicated PROFIBUS DP interface for distributed I/O and network communication. It supports Configuration in RUN (CiR), enabling system modifications without stopping CPU operation, and is programmed using STEP 7 V5.3 SP2 or later. Powered through the S7-400 backplane bus, the CPU has a typical 5 V DC backplane current consumption of 0.9 A and a maximum of 1.1 A, with up to 300 mA at 24 V DC supplied through the backplane. The processor supports up to 2,048 timers and 2,048 counters, offers integrated diagnostic functions, and is compatible with SIMATIC memory cards up to 64 MB for load memory expansion. Designed for installation in SIMATIC S7-400 automation systems, the CPU provides dependable processing performance and communication capabilities for demanding industrial control applications.

Parameter

Model: 6ES7412-2XJ05-0AB0 SIMATIC S7-400 Central Processing
Load Memory Expansion: Up to 64 MB (via SIMATIC memory cards)
Maximum Transmission Rate: Up to 12 Mbit/s
Typical Current Consumption (5 V DC): 0.9 A
Backplane Supply Current (24 V DC): Up to 300 mA
Power loss, typ: 4.5 W
Power loss, max: 5 W
Input current from interface 5 V DC max: 90 mA At each DP interface

Frequently asked questions

Q:What is the Siemens 6ES7412-2XJ05-0AB0?
A:The Siemens 6ES7412-2XJ05-0AB0 is a SIMATIC S7-400 CPU 412-2 central processing unit designed for industrial automation systems. It features 512 KB of integrated work memory (256 KB for code and 256 KB for data) and includes MPI/DP and PROFIBUS DP communication interfaces.

Q:How much memory does the CPU 412-2 provide?
A:The CPU includes 512 KB of integrated work memory, divided into 256 KB for program code and 256 KB for data. It also supports SIMATIC memory cards for expanding the load memory up to 64 MB.

Q:What communication interfaces are available on the 6ES7412-2XJ05-0AB0?
A:The CPU is equipped with two integrated communication interfaces: one MPI/DP interface supporting data rates up to 12 Mbit/s and one dedicated PROFIBUS DP interface for distributed I/O communication.

Application areas

The Siemens 6ES7412-2XJ05-0AB0 is primarily deployed in large-scale, continuous industrial automation and distributed control systems (DCS) where downtime is highly critical.The primary application areas include:

• Power Generation & Energy Management: Deployed in auxiliary control suites within thermal, hydro, and gas power plants (such as demineralized water treatment, coal handling, and cooling tower networks) or plant-wide electrical power distribution systems.
• Water & Wastewater Treatment: Controls large-scale municipal wastewater or water purification facilities, coordinating distributed pump stations, dosing rooms, and sedimentation tanks across several kilometers.
• Chemical & Petrochemical Support Units: Utilized in auxiliary chemical production sectors that require intense process continuity (though non-safety critical), such as material tank farms and industrial gas supply grids.
