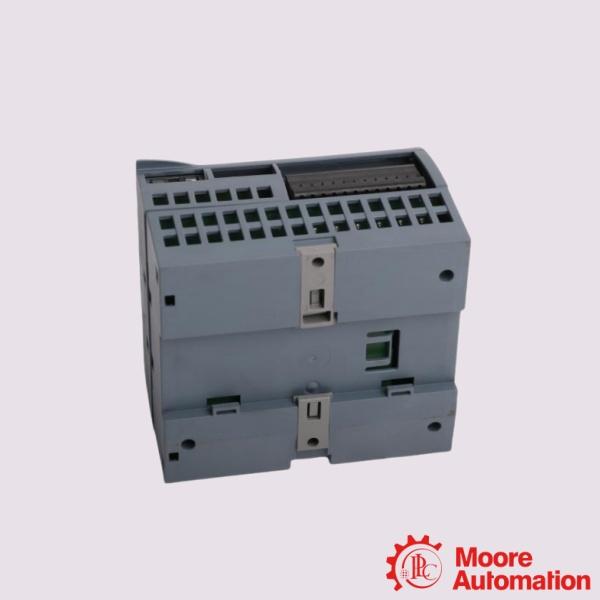

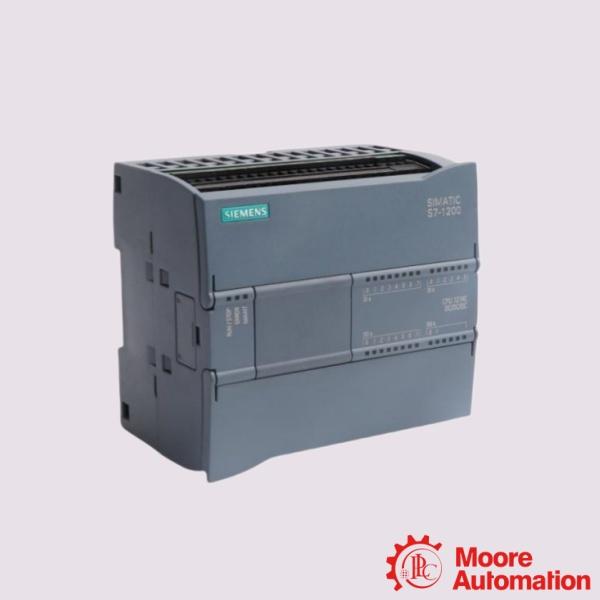

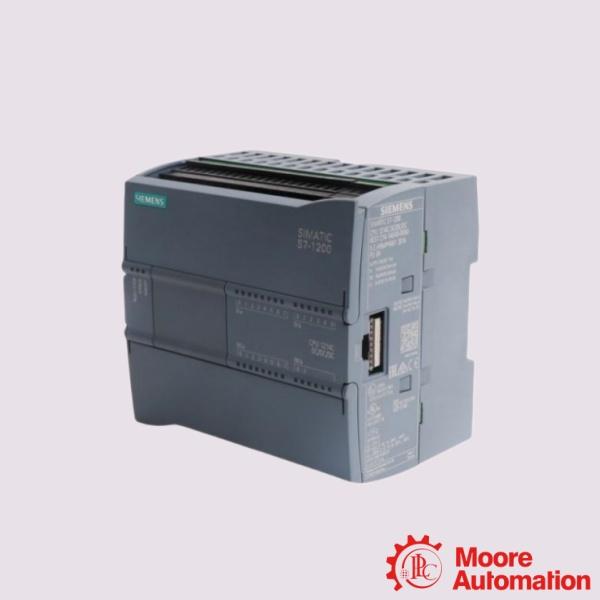

Siemens 6ES7214-1AG40-0XB0 VERSION 4.2 S7-1200 CPU 1214C compact programmable logic controller

Parameter
Model: 6ES7214-1AG40-0XB0  VERSION 4.2 compact programmable logic controller
Permissible range, lower limit (DC): 20.4 V
Permissible range, upper limit (DC): 28.8 V
Current consumption (rated value): 500 mA; CPU only
Operating Temp (horizontal): -20°C to +60°C
Analog Inputs: 2 (0-10V, 10-bit)
Digital Outputs: 10 (4 PTO at 100 kHz)

Description

The Siemens 6ES7214-1AG40-0XB0  VERSION 4.2 is a SIMATIC S7-1200 CPU 1214C compact programmable logic controller (PLC) designed for compact automation applications requiring integrated control, communication, and signal processing capabilities. It features a DC/DC/DC configuration with a 24 V DC power supply, integrated 14 digital inputs (24 V DC), 10 digital transistor outputs (24 V DC), and 2 analog inputs (0–10 V DC), providing a flexible onboard I/O structure for machine automation and industrial control systems. The CPU 1214C provides 150 KB program/data memory and supports expansion with additional signal modules, communication modules, and technology modules to meet different application requirements. It operates within a supply voltage range of 20.4 to 28.8 V DC and supports SIMATIC Memory Card expansion for program storage and data management. The CPU integrates PROFINET interface communication for programming, HMI connection, and communication with other automation devices, enabling efficient integration into modern industrial networks.Designed as part of the SIMATIC S7-1200 automation family, the 6ES7214-1AG40-0XB0 provides a compact and scalable solution for industrial control applications, offering reliable processing performance, integrated I/O capability, and flexible system expansion options for machine builders and automation projects.

Frequently asked questions

Q:What is the Siemens 6ES7214-1AG40-0XB0 VERSION 4.2?
A:The Siemens 6ES7214-1AG40-0XB0 is a SIMATIC S7-1200 CPU 1214C featuring a 24 V DC power supply, 14 digital inputs, 10 digital transistor outputs, 2 analog inputs (0–10 V), and an integrated PROFINET interface for industrial automation applications.

Q:What onboard I/O does the 6ES7214-1AG40-0XB0 VERSION 4.2 provide?
A:The CPU includes 14 digital inputs (24 V DC), 10 digital outputs (24 V DC transistor), and 2 analog voltage inputs (0–10 V DC), allowing it to control and monitor a wide range of field devices without additional I/O modules.

Q:What applications is the 6ES7214-1AG40-0XB0 VERSION 4.2suitable for?

A:The CPU is suitable for machine automation, packaging equipment, conveyor systems, material handling, water treatment, HVAC, process control, and general factory automation, where compact design, integrated I/O, and flexible expansion are required.

Application areas

The Siemens 6ES7214-1AG40-0XB0 VERSION 4.2 primary application areas include:

• Food & Beverage Processing: Controls modular mixing skids, automated slicing systems, small bottling lines, and temperature-controlled smoking/baking chambers.
• Water & Environmental Utilities: Deployed in compact wastewater treatment stations, pumping blocks, chemical dosing skids, and reverse osmosis purification units.
• Renewable Energy Systems: Integrates into solar tracking arrays, small wind turbine pitch systems, and localized battery storage monitoring enclosures.
