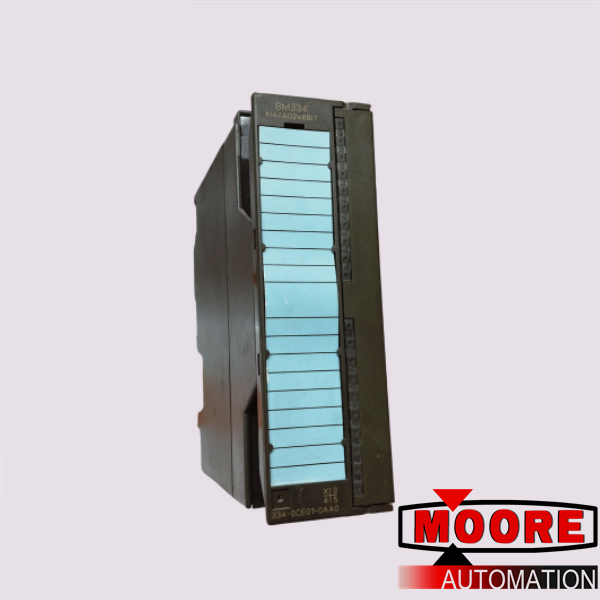

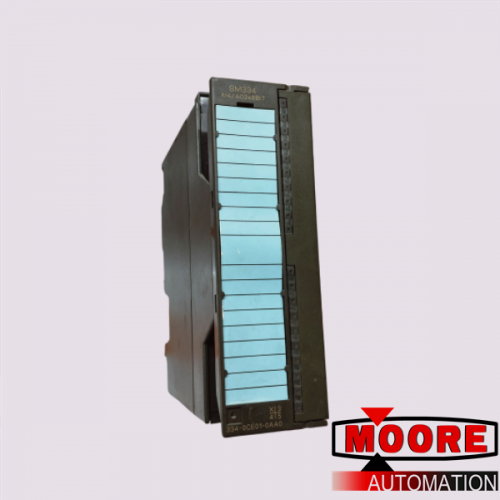

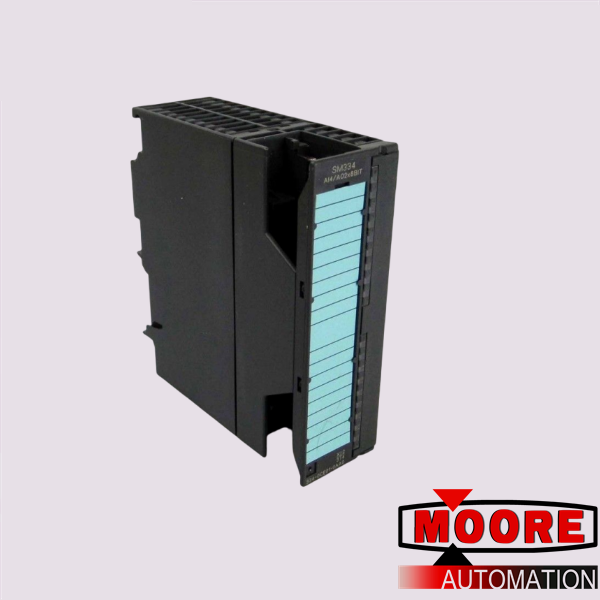

SIEMENS 6ES7334-OCE01-0AA0 Analog module SM 334

Brand/ Manufacturer:
Siemens
Dimensions:
8.2cm*6.6cm*5cm
Weight:
0.3kg
Country of Origin: :
Germany
Description:
Analog module SM 334

Inquiry now

Mfr. Part Number:	6ES7334-OCE01-0AA0

Manufacturer:	SIEMENS

Description:	SIMATIC S7-300, Analog module SM 334, Non-isolated 4 AI/2 AO, 1x 20-pole, Removing and inserting possible with active backplane bus
Full Description:	Analog Current/Voltage Inputs, 0-10V or 0 to 20mA, 8-Bit Resolution, (2) Analog Current/Voltage Outputs, 0-10V or 0 to 20mA, 8-Bit Resolution, 20-Pin
Status:	In stock ready to ship

plcsale@mooreplc.com +8618030235313 dddemi33 2851195473

Load voltage L+ Rated value (DC)	24 V
Input current from load voltage L+ (without load), max.	110 mA
from backplane bus 5 V DC, max.	55 mA
Power loss Power loss, typ	3 W
Analog inputs Number of analog inputs	4
Number of analog inputs for voltage measurement	4
permissible input voltage for voltage input (destruction limit), max	20 V
permissible input current for current input (destruction limit), max.	40 mA
Cycle time (all channels) max.	5 ms
Input resistance (0 to 10 V)	100 kΩ
Input resistance (0 to 20 mA)	50 Ω
Analog outputs Number of analog outputs	2
Voltage output, short-circuit protection	Yes
Voltage output, short-circuit current, max	11 mA
Current output, no-load voltage, max.	15 V
Load impedance (in rated range of output) with voltage outputs, min	5 kΩ
with voltage outputs, capacitive load, max.	1 µF
with current outputs, max	300 Ω
with current outputs, inductive load, max.	1 mH
Cable length Cable length, shielded, max.	200 m
Resolution with overrange (bit including sign), max.	8 bit
Settling time for resistive load	0.3 ms
for capacitive load	3 ms
for inductive load	0.3 ms
Voltage, relative to input area, (+/-)	0.9 %
