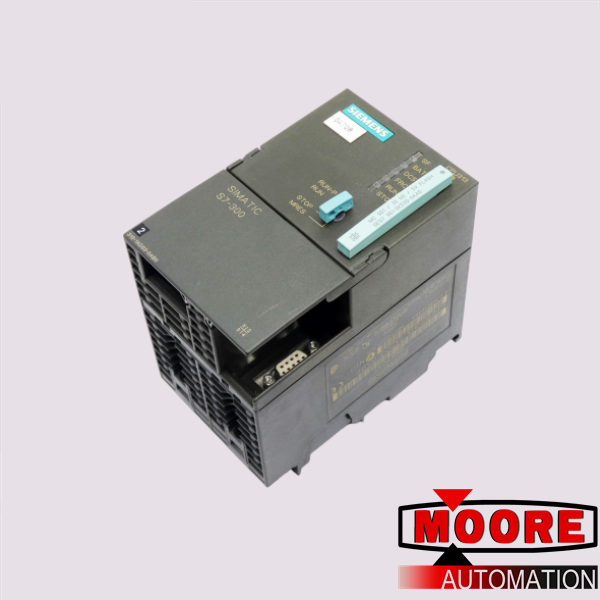

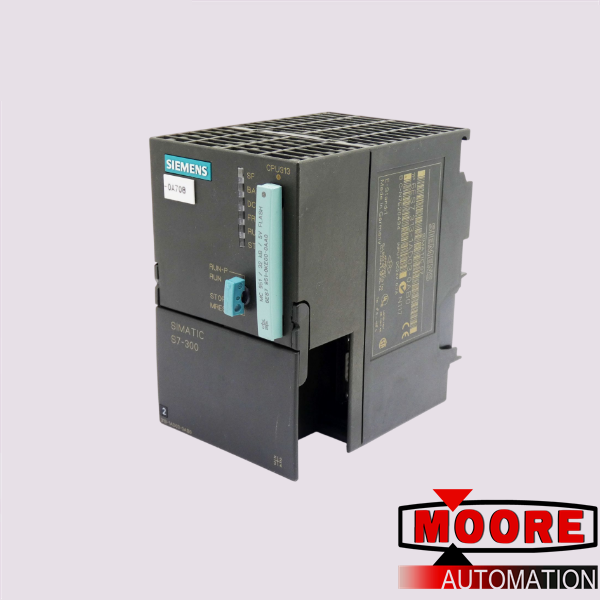

SIEMENS 6ES7313-1AD03-0AB0 CPU 313 Processor Module

Brand/ Manufacturer:
Siemens
Dimensions:
8.2cm*6.6cm*5cm
Weight:
0.3kg
Country of Origin: :
Germany
Description:
CPU 313 Processor Module

Inquiry now

Mfr. Part Number:	6ES7313-1AD03-0AB0

Manufacturer:	SIEMENS

Description:	SIMATIC S7-300, CPU 313 Central processing unit with integr. Power supply 24 V DC, work memory 12 KB
Full Description:	Rated value (DC): 24 V DC permissible range, lower limit (DC) : 20.4 V permissible range, upper limit (DC) : 28.8 V
Status:	In stock ready to ship

plcsale@mooreplc.com +8618030235313 dddemi33 2851195473

Rated value (DC)	24 V DC
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Inrush current, typ.	8 A
Power loss, typ.	8 W
Work memory integrated	12 kbyte; 12 KB / 4K instructions RAM
Load memory expandable FEPROM	Flash-EPROM
expandable FEPROM, max	4 Mbyte
integrated RAM, max	20 kbyte
CPU processing times for bit operations, typ.	0.6 µs
for bit operations, max.	1.2 µs
for word operations, typ	2 µs
for fixed point arithmetic, typ.	3 µs
for floating point arithmetic, typ.	60 µs
for timer/counter operations, typ.	15 µs
CPU-blocks Number, max.	127
CPU-blocks Size, max.	8 kbyte
S7 counter Number	64
S7 times Number	128
Time range — lower limit	10 ms
Time range — upper limit	9 990 s
Flag Number, max	256 byte
Retentivity available	MB 0 to MB 255
Address area I/O address area Inputs	128 kbyte
Address area I/O address area Outputs	128 kbyte
