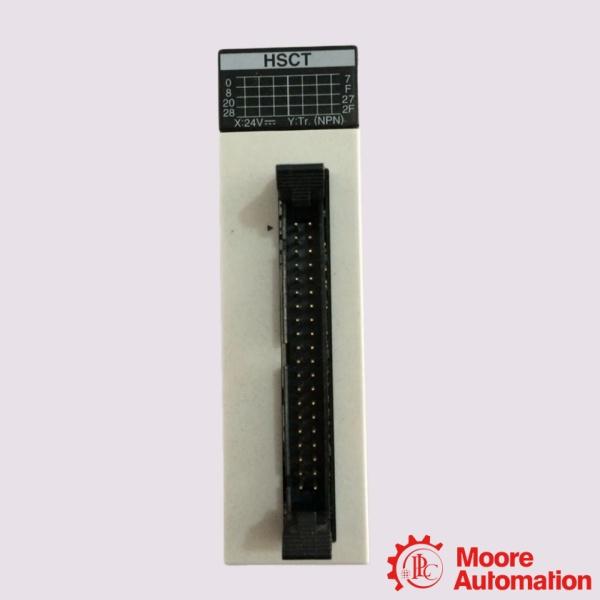

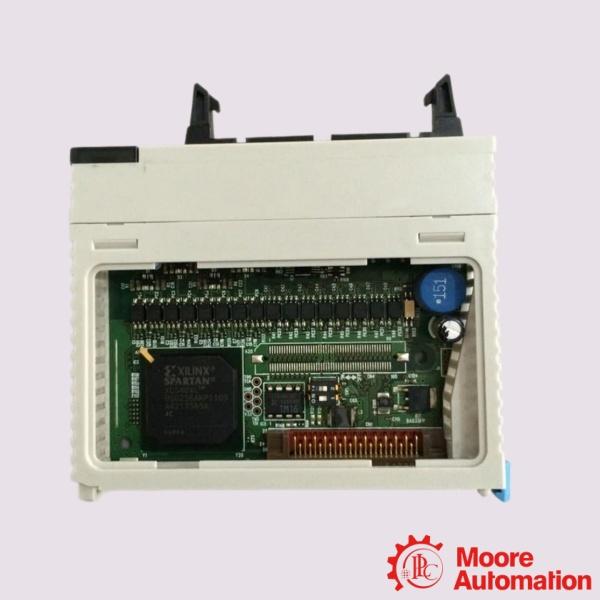

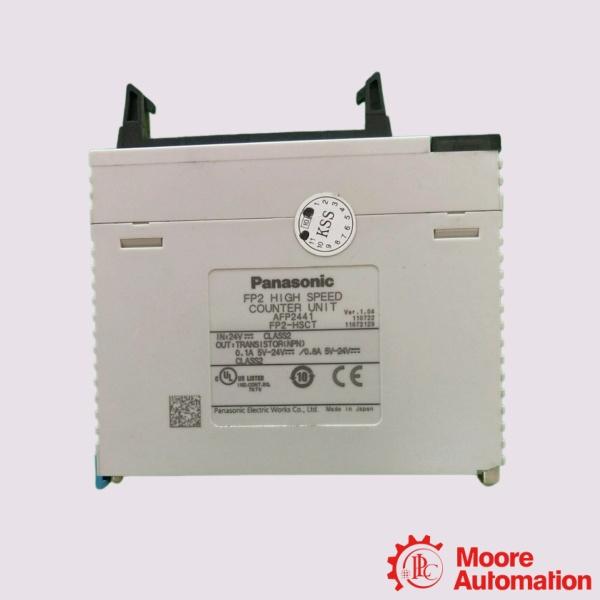

Panasonic AFP2441 High Speed Counter Unit

Description

Installed in an FP2 PLC system, the AFP2441 handles pulse inputs from high-speed devices such as encoders and sensors. Four separate counting channels are available, with a maximum input frequency of 200 kHz. The module records counts within a 32-bit signed range, covering values from -2,147,483,648 to +2,147,483,647 for precise measurement and control tasks.The unit provides three selectable input modes—phase difference (quadrature), individual input, and direction input—allowing it to interface with incremental encoders and various pulse-generating devices. The AFP2441 operates with 24 VDC optically isolated inputs, features configurable input response times, 8 comparison outputs, interrupt functions, and selectable multiplication factors of 1×, 2×, and 4× for enhanced counting resolution. Its high-speed processing capability makes it suitable for applications requiring precise pulse counting, speed measurement, positioning, and encoder feedback in industrial automation systems. As part of the FP2 platform, the AFP2441 has been discontinued by Panasonic and is recommended to be replaced with solutions based on the FP7 series where appropriate.

Parameter

Model: AFP2441 High Speed Counter Unit
Counting Speed: Maximum 200 kHz
Comparison Outputs: 8 independent comparison outputs
Number of Channels: 4 independent high-speed counter channels
Rated Output Voltage: 5 to 24 VDC
Max. Output Current: 0.1 A per point (for 12 points) / 0.8 A per point (for 4 points)

Frequently asked questions

Which PLC series is the AFP2441 compatible with?
The AFP2441 is an FP2 high-speed counter unit used with Panasonic FP2 PLC systems. It is installed as an intelligent unit when high-speed pulse counting functions are required.

What type of signals can be handled by the AFP2441?
The AFP2441 accepts pulse inputs from devices such as encoders and sensors. Three input modes are available: direction input, individual input, and two-phase input.

Can this power supply handle battery testing applications?
Yes. The MCH-K3010D-III is often used when a controlled DC output is needed for battery checks and charging experiments. Users can adjust the voltage and current settings based on the requirements of the battery being tested.

Application areas:
Encoder Feedback Integration: It connects directly to incremental rotary encoders mounted on conveyor belts, CNC spindles, or multi-axis robots. Utilizing the 1×/2×/4× multiplication factors on quadrature (A/B phase) signals, it tracks the exact physical location of moving parts.
Over-speed & Jam Protection: It uses hardware interrupt functions to process frequency drops immediately. If a conveyor jams or a motor spins out of control, the module instantly flags the PLC CPU to execute emergency stop routines.
Packaging and Labeling Synchronicity: In rotary packaging machines or high-speed labeling lines, the unit measures exact web feeding distances. This ensures cutting blades and adhesive applicators land precisely on register marks without drifting during high-velocity runs.
