DGSL-12-30-PA | FESTO Mini Slides

Description

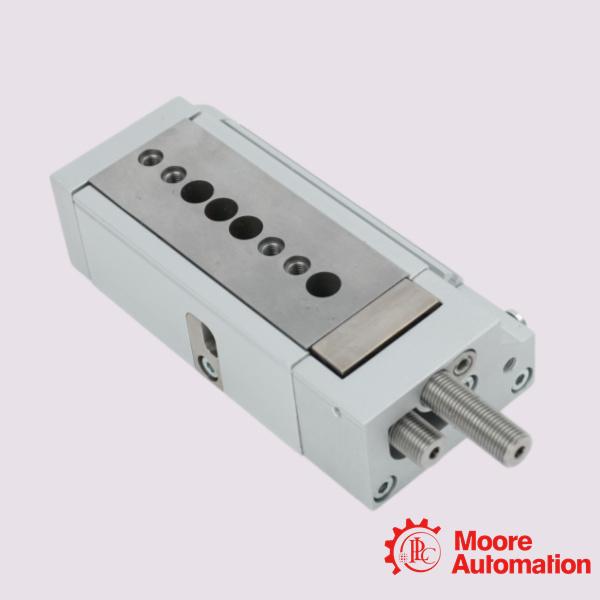

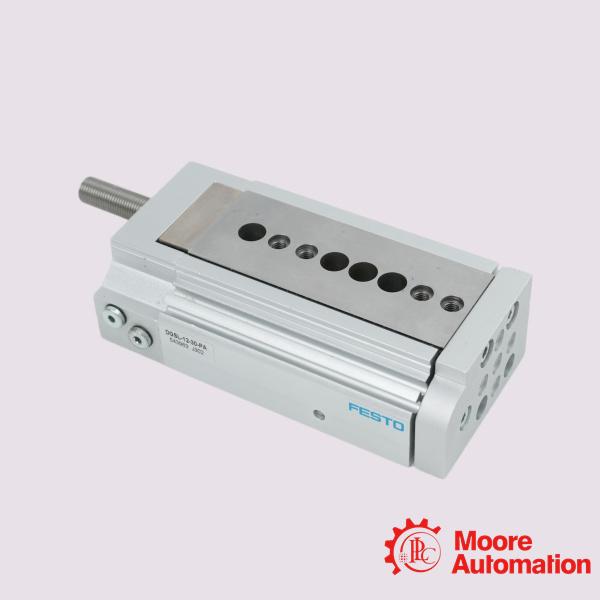

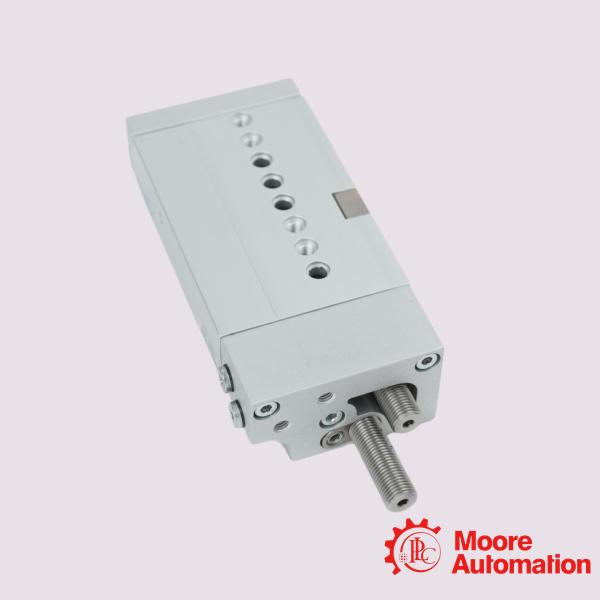

The Festo DGSL-12-30-PA is a compact mini slide with a 12 mm bore and a 30 mm stroke, designed for precise linear motion in applications where installation space is limited. It features an integrated guide and P-type cushioning to reduce impact forces at the end positions and support smooth operation. The unit provides high guiding accuracy and load-bearing capability, supports various mounting options, and includes sensor slots for use with SME/SMT proximity sensors for position detection.

Parameter

InStroke:30 mm
Adjustable end position range/length front :29 m
djustable end position range/length rear:25.5 mm
Piston diameter:16 mm
Operating mode, drive unit:Yoke
Cushioning:Elastic cushioning rings/plates at both ends
Operating pressure:0.1 MPa...0.8 MPa/1 bar...8 bar
Max. speed:0.8m/s
Repetition accuracy:0.3m

Frequently asked questions

What is the Festo DGSL-12-30-PA?
The DGSL-12-30-PA is a pneumatic mini slide actuator with a 12 mm bore and a 30 mm stroke. It features a ball bearing cage guide and double-acting operation for precise linear motion in compact automation systems.

What type of guide does the DGSL-12-30-PA use?
The actuator is equipped with a ball bearing cage guide, providing high guiding accuracy, smooth motion, and good load-carrying capability.

What does "-PA" mean in the model number DGSL-12-30-PA?
P indicates elastic buffering at both ends, preventing hard metal collisions upon reaching the destination. A indicates that the slide table has built-in magnetic transmission capabilities, and proximity sensors can be added for position detection.

Application areas:
Precision Pick-and-Place: High-speed picking, handling, and precise placement of microelectronic chips, SMD components, and resistors.
PCB Handling and Assembly: Precise positioning and transportation of circuit boards during testing, sorting, or final assembly processes.
Test tube and medicine bottle handling: In fully automated diagnostic instruments, glass test tubes and medicine bottles are grasped and transferred with minimal impact and smoothly.

Automotive sensor assembly: Precise positioning, pressing, or plugging of microelectronic sensors and connectors in automobiles.
