Product Description:

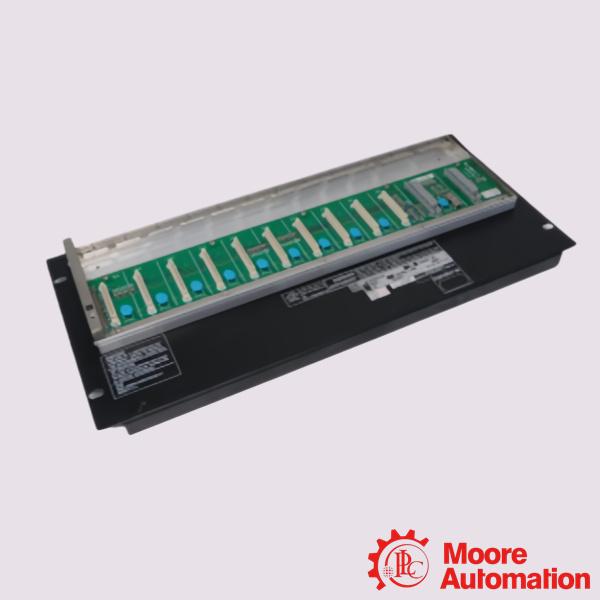

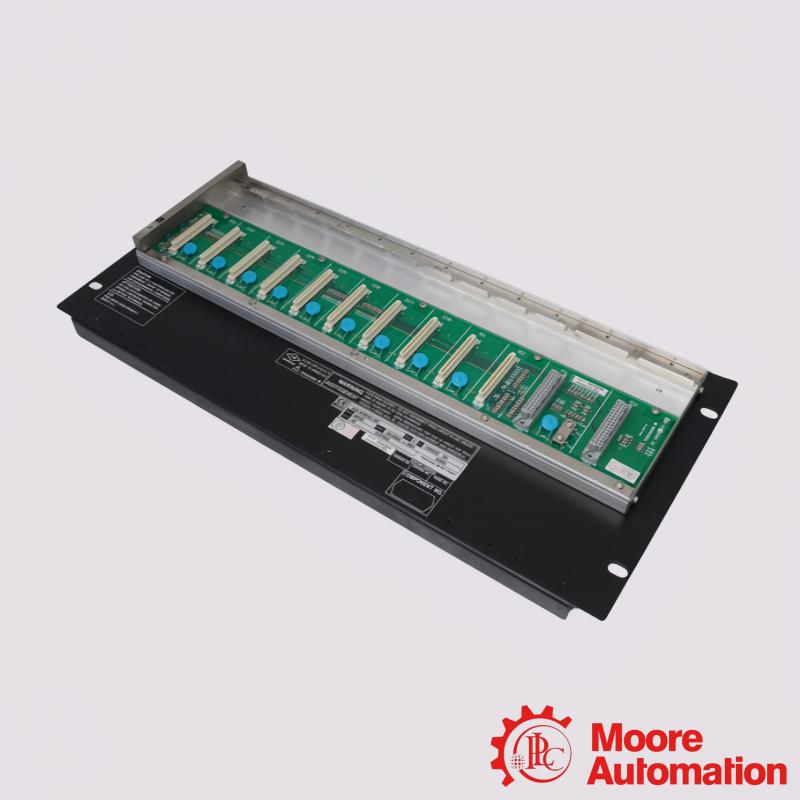

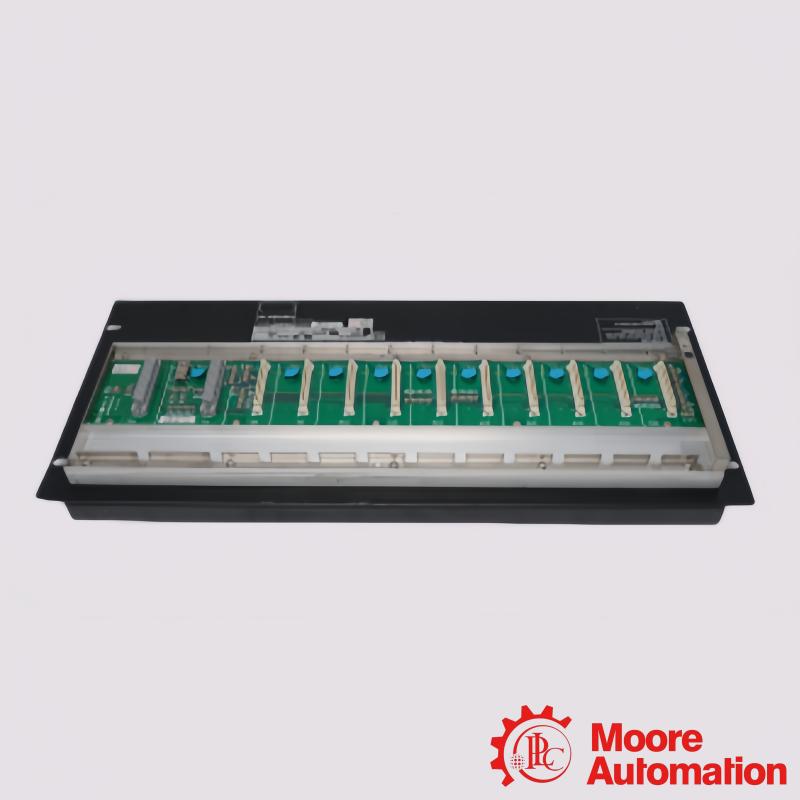

The Yokogawa ANB10D-425/CU2T is a dual-redundant ESB (Extended System Bus) node unit manufactured by Yokogawa Electric Corporation, primarily used in the Yokogawa CENTUM VP distributed control system (DCS). It serves as a crucial communication interface between the field control unit (FCU) and field I/O modules, responsible for transmitting analog and digital signals from the field to the control unit via the ESB bus, while simultaneously powering the FIO (Field Input/Output) modules plugged into it.

Frequently Asked Questions (FAQ)

Q:Are there specific installation restrictions?
A:Yes. Quantities and locations of specific I/O modules are limited by ambient heat dissipation. Additionally, installing modules with built-in intrinsic safety barriers requires a specialized insulating partition (Part No. T9083NA).
Q:What are its operating temperature limits?
A:The 9 slots accommodate up to 2 redundant power modules, making it ideal for fault-tolerant automation systems such as the SIMATIC S7-400H.The standard operating temperature ranges from -20°C to +60°C. The storage environment must stay between -40°C and +85°C.

Q:What is the difference between the /CU2T and /CU2N options?
A:The /CU2T variant includes a pre-packaged bus terminator, meaning it must be installed as the final physical node at the end of an ESB bus segment. The /CU2N variant features a connector unit without a terminator, utilized for daisy-chaining intermediate nodes along the bus.
