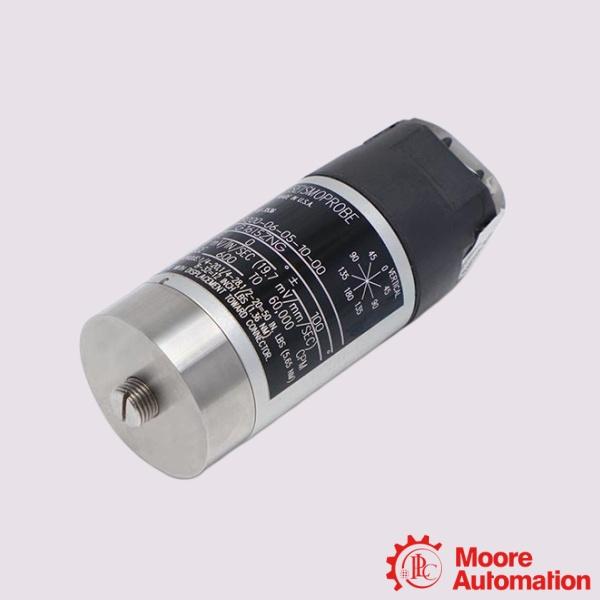

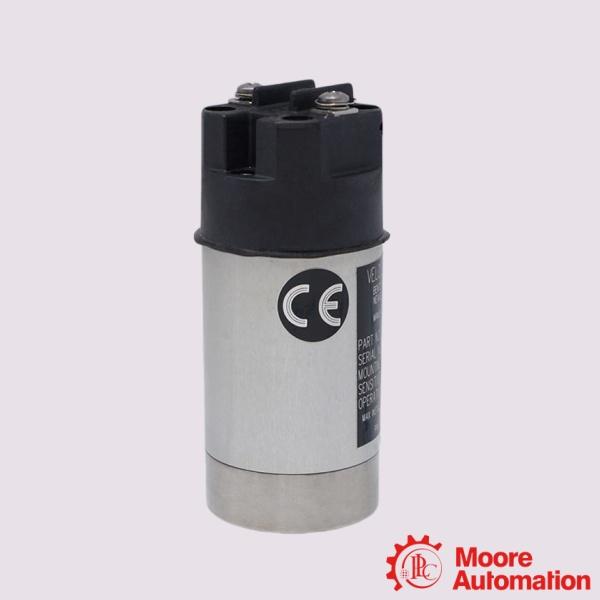

Bently Nevada 9200-09-01-06-00 two-wire Seismoprobe velocity transducer

Frequently asked questions
Q:Can the 9200-09-01-06-00 be used for continuous monitoring?
A:Yes. The 9200 series is designed for continuous monitoring applications as well as periodic vibration measurements when used with suitable test or diagnostic instruments.

Q:What measurement technology does the 9200-09-01-06-00 use?
A:The transducer uses moving-coil technology. It is a two-wire design that generates a voltage output directly proportional to the measured vibration velocity.

Q:What frequency range does the 9200 Seismoprobe Velocity Transducer support?
A:The 9200 series supports measurement from the selected minimum operating frequency up to 1 kHz (60,000 cpm) with a typical +0, -3 dB response.

Description

The Bently Nevada 9200-09-01-06-00 is a 9200 Seismoprobe Velocity Transducer designed to measure absolute vibration of bearing housings, machine casings, and structural components. It is a two-wire velocity transducer that uses moving-coil technology to provide an output voltage directly proportional to the measured vibration velocity. The Seismoprobe velocity transducer measures casing vibration without requiring external power. The moving-coil design provides a direct velocity output and is suitable for continuous monitoring applications as well as periodic vibration measurements performed with diagnostic instruments. The 9200-09-01-06-00 configuration includes a 0° mounting angle with a minimum operating frequency of 15 Hz, top mount connector without integral cable, isolated circular 1/4-28 UNF stud mounting base, and no agency approvals. The transducer is designed for installation on machinery structures where casing vibration measurement is required. The 9200 Seismoprobe Velocity Transducer provides a 20 mV/mm/s (500 mV/in/s) sensitivity when properly terminated and oriented at the calibration angle. It supports vibration monitoring applications on rotating equipment including turbines, compressors, pumps, motors, and other industrial machinery where casing vibration information is required.

Parameter

Model: 9200-09-01-06-00 two-wire Seismoprobe velocity transducer
Transducer Mounting Angle/Minimum Operating Frequency Option: 09-0 ±180, 15 Hz (900 cpm)
Connector/Cable Option: 01-Top Mount (no cable)
Mounting Base Option: 06-Isolated circular 1/4-20 UNC stud
Agency Approval Option: 00-No Approvals

Application areas

• Power Generation Facilities: Mounted on auxiliary plant assets, mid-sized utility steam/gas turbine components, and secondary pump assemblies.
• Oil & Gas Midstream/Downstream: Deployed on plant utility machines, fluid separation networks, and localized pipeline pumping complexes outside classified gas boundaries.
• Petrochemical Processing: Integrated into general refinery maintenance loops, mixing operations, and chemical processing zones where explosive atmospheres are not a hazard.
• General Heavy Manufacturing: Used inside pulp and paper mills, high-capacity water handling stations, and manufacturing plants with major rotating or reciprocating train structures.
