Product Description:

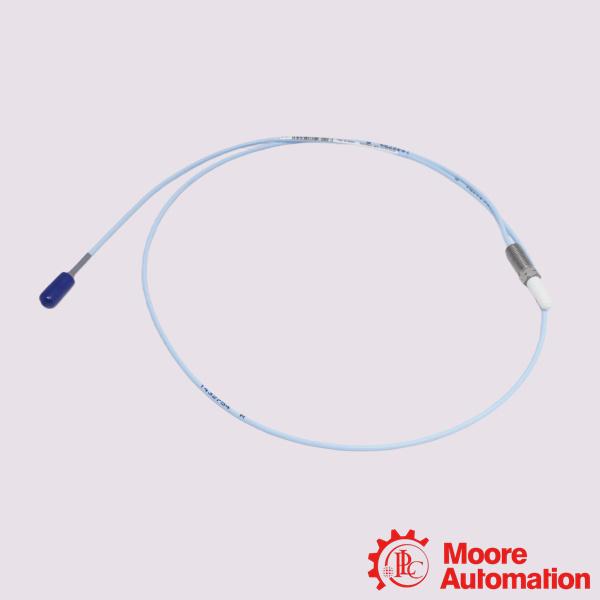

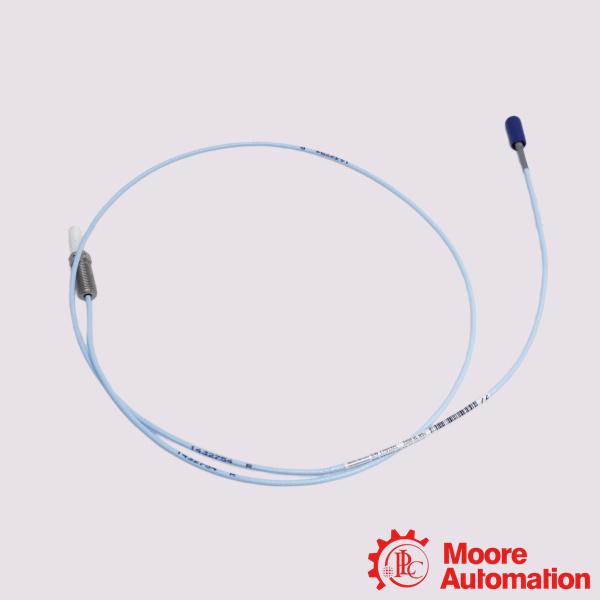

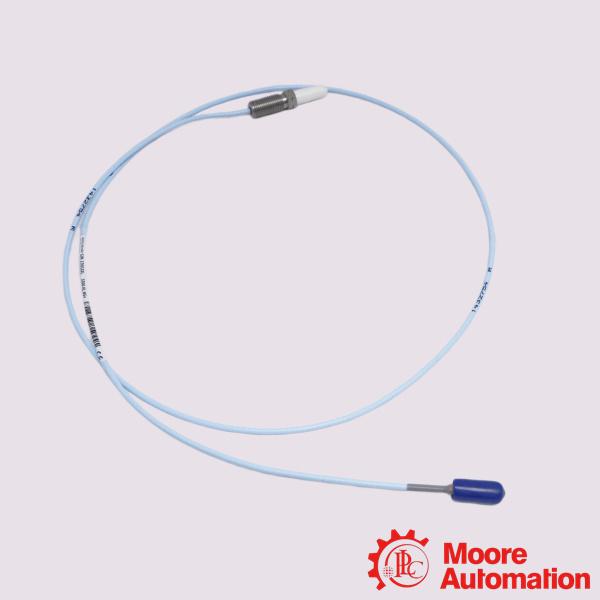

The Bently Nevada 330907-05-30-70-02-00 is a 3300 NSv reverse-mount proximity probe for critical machinery protection where tight space installation and small shaft targets restrict standard 5mm or 8mm sensors. It provides non-contacting vibration and position data, primarily tracking components in fluid-filmed bearing machines.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).

Frequently Asked Questions (FAQ)

Q:How do I prevent cross-talk when installing multiple probes?

A:Because of their tight operating environment, the electromagnetic fields emitted by nearby tips can interfere with each other. Maintain a minimum separation of 25 mm (1.0 in) for axial position configurations and 23 mm (0.9 in) for radial vibration configurations.
Q:Can I mix this probe with standard 3300 XL extension cables?
A:No. The 3300 NSv series uses specific narrow-measurement technology. To maintain rated accuracy and linear performance, you must use it exclusively with dedicated 3300 XL NSv Proximitor Sensors. Mixing it with standard 3300 XL 5mm/8mm components will result in severe scale factor errors.

Q:What is the primary purpose of the 3300 NSv system?
A:It is built for applications with tight spatial constraints, such as restricted counterbores, sideview, or rearview limitations where standard 5 mm or 8 mm probes cannot fit. It excels at measuring small targets, such as radial vibration on shafts under 51 mm (2 in) or axial position on flat targets under 15 mm (0.6 in).
