Bently Nevada 330102-00-16-90-11-05 3300 XL 8 mm Proximity Transducer System

Description

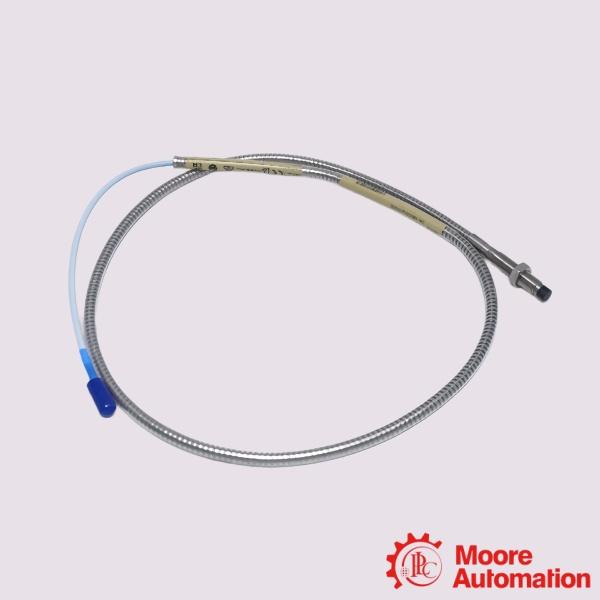

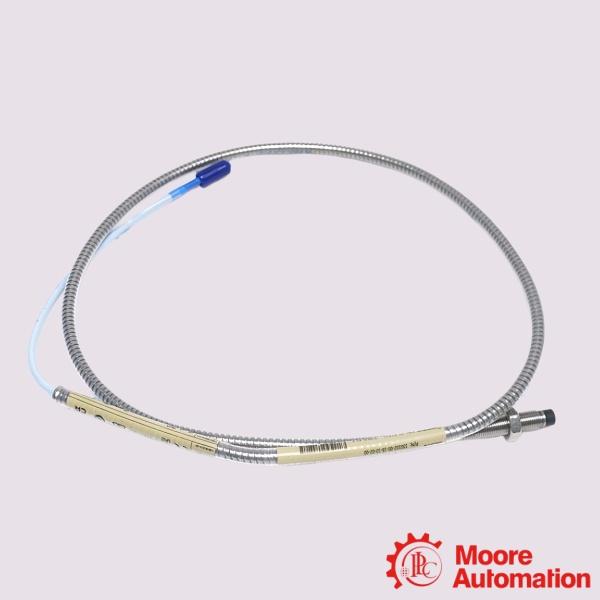

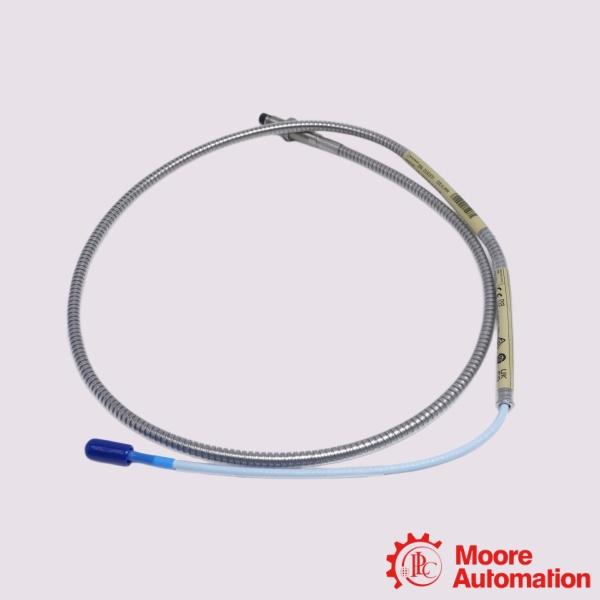

The Bently Nevada 330102-00-16-90-11-05 is an armored 3300 XL 8 mm probe featuring a 3/8-24 UNF thread with full stainless steel armor protection. This configuration specifies zero unthreaded length (00) 1.6 inches overall case length (16) and a total probe length of 9.0 meters (90). The 330102-00-16-90-11-05 uses FluidLoc cable with a miniature coaxial ClickLoc connector and factory-installed connector protector (11) and carries multiple hazardous area approvals (05). The FluidLoc cable on 330102-00-16-90-11-05 prevents oil and other liquids from leaking out of the machine through the cable interior. This feature is critical for turbine and compressor installations where probe cables pass through bearing housings containing lubricating oil.The armored construction uses flexible AISI 302 stainless steel with PFA outer jacket providing excellent resistance to crushing abrasion, and mechanical damage.

Parameter

Model: 330102-00-16-90-11-05 Proximity Transducer System
Unthreaded Length Option: 00-0.0 in
Overall Case Length Option: 16-1.6 in
Total Length Option: 90-9.0 metres (29.5 feet)
Connector and Cable-Type Optio: 11-Miniature coaxial ClickLoc connector with connector protector FluidLoc cable
Agency Approval Option: 05-CSA ATEX IECEx  Approvals

Frequently asked questions

Q:Does Bently Nevada 330102-00-16-90-11-05 include a connector protector？
A:Yes, the Bently Nevada 330102-00-16-90-11-05 does include a factory-installed connector protector out of the box It can enhanced environmental sealing against moisture dust and oil.

Q:What is the Bently Nevada 330102-00-16-90-11-05 ?
A:The Bently Nevada 330102-00-16-90-11-05 is a 9.0-meter high-precision 3300 XL 8 mm eddy-current proximity probe equipped with an integrated stainless steel armored cable.

Q:What is the 330102-00-16-90-11-05 recommended gap voltage during installation?
A:For proper linear operation the recommended physical installation gap is 1.27 mm (50 mils) which corresponds to a baseline gap voltage of approximately -10.0 VDC on standard monitors.

Application areas

The Bently Nevada 330102-00-16-90-11-05 is a 3300 XL 8 mm proximity probe designed for non-contact vibration shaft position and condition monitoring applications in critical rotating machinery,including:

• Severe Mechanical Abrasion Zones: The stainless steel armored jacket makes it perfect for heavy-duty industrial machinery where cables are exposed to physical impacts, sharp structural metal edges, or foot traffic during routine outages.
• High-Exposure Lubed Bearings: This probe is heavily deployed inside fluid-film journal bearings and thrust bearings. It is constantly submerged in or sprayed with pressurized synthetic or mineral lubricating oils.
• Direct-to-Rack Monitoring (No Junction Boxes) : The integrated 9.0-meter length is ideal for machines where the probe cable must route directly from the internal bearing housing all the way to a distant control cabinet or local transmitter panel without stopping at an intermediate junction box.
• Radial vibration measurement: Provides accurate non-contact measurement of shaft vibration for machinery condition monitoring.
