Bently Nevada 21000-16-10-00-054-04-02 21000 Proximity Probe Housing Assembly

Frequently asked questions
Q:What is the primary function of the Bently Nevada 21000-16-10-00-054-04-02?
A:The 21000-16-10-00-054-04-02 is a Proximity Probe Housing Assembly that provides external mounting, protection, and adjustment for a 3300 XL 8 mm proximity probe used in rotating machinery monitoring systems.

Q:What mounting thread does this housing use?
A:The "02" mounting option specifies a 3/4-14 NPT mounting thread for installation on compatible machinery.

Q:Why is the probe penetration dimension important?
A:The selected penetration length positions the probe at the required measurement location while maintaining the specified installation geometry for the housing assembly.

Description

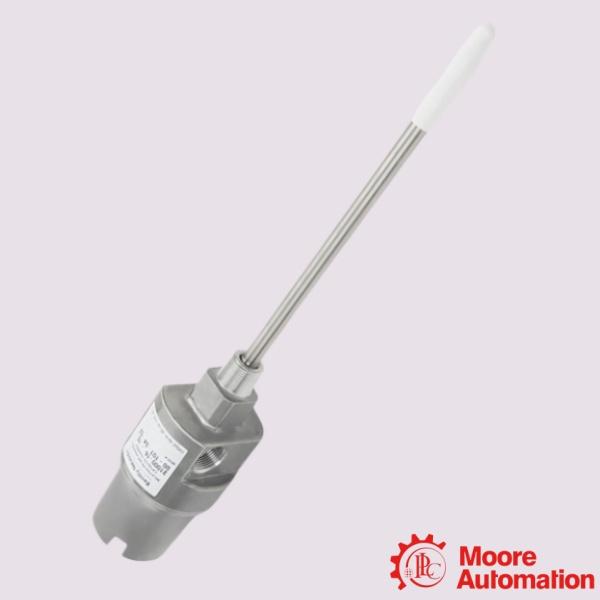

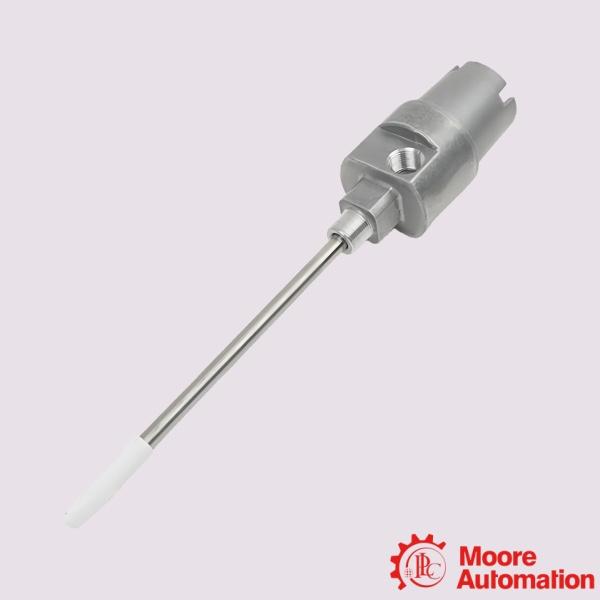

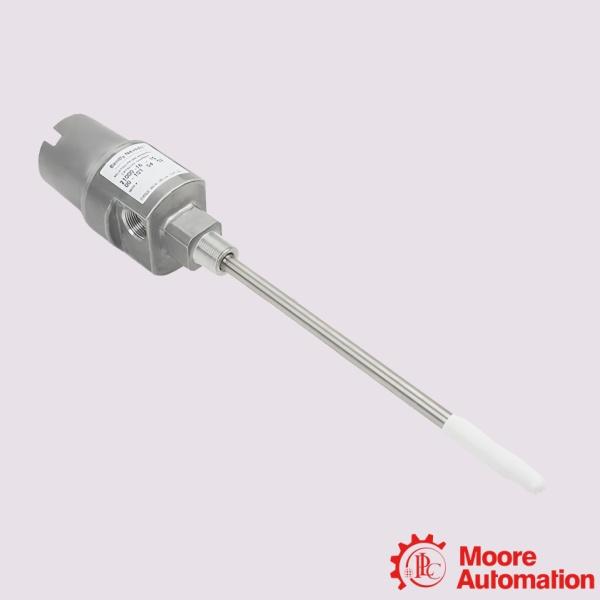

The Bently Nevada 21000-16-10-00-054-04-02 is a 21000 Proximity Probe Housing Assembly supplied with a 3300 XL 8 mm Proximity Probe for externally mounted shaft monitoring applications. The housing assembly provides a secure mounting location for the probe while protecting the installation from the surrounding operating environment. It also allows probe adjustment and replacement without disassembling the machine casing. The housing assembly features an aluminum body with a stainless steel probe sleeve and provides mechanical support for the installed proximity probe. The externally mounted design allows convenient access for probe positioning and maintenance while maintaining stable installation during machine operation. When installed with compatible Bently Nevada monitoring equipment, the 21000-16-10-00-054-04-02 supports non-contact measurement of shaft vibration, shaft position, and shaft displacement on rotating machinery.

Parameter

Model: 21000-16-10-00-054-04-02 21000 Proximity Probe Housing Assembly
Probe with Connector: 16-3300 XL 8mm probe
Probe Cable Length: 10-1.0 m (39 in)
Standoff Adapter (Option C Dimension): 00-00
Probe Penetration (Option D Dimension): 054-5.4 in
Fittings: 04-One 3/4-14 NPT plug only
Mounting Thread: 02-3/4-14 NPT

Application areas

• Oil and Gas Facilities–Installed on turbines, compressors, pumps, and other rotating equipment where continuous shaft monitoring is essential for reliable operation.
• Petrochemical Plants–Used on critical process machinery requiring non-contact shaft vibration and position measurement as part of plant condition monitoring programs.
• Power Generation Plants–Provides external probe installation for turbine-generator sets and auxiliary rotating equipment used in machinery protection systems.
