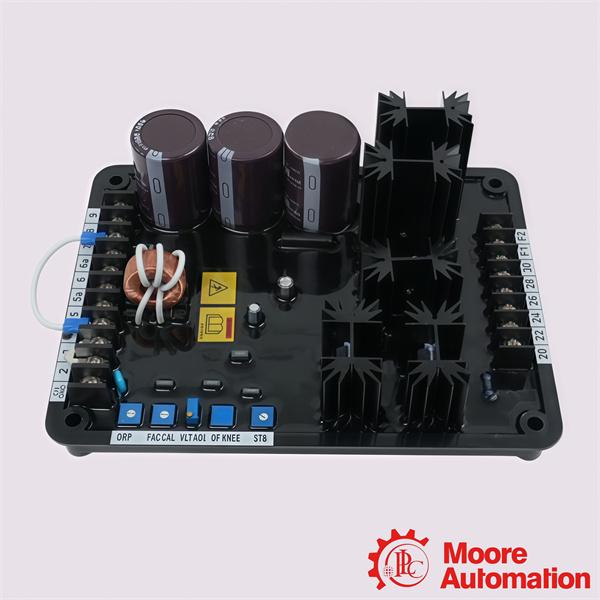

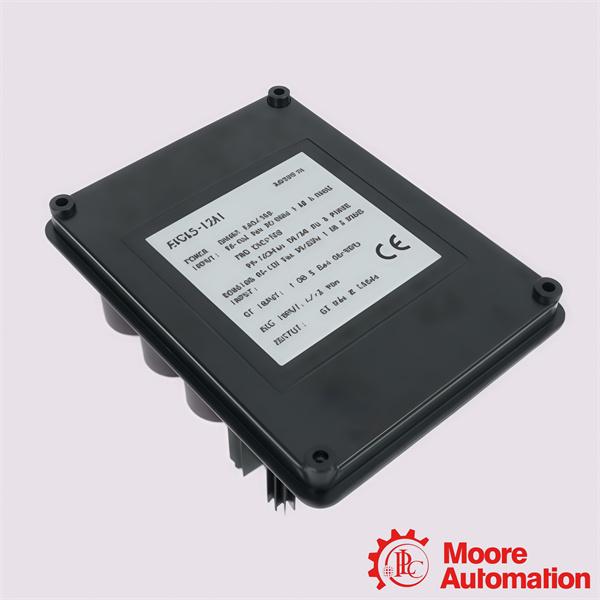

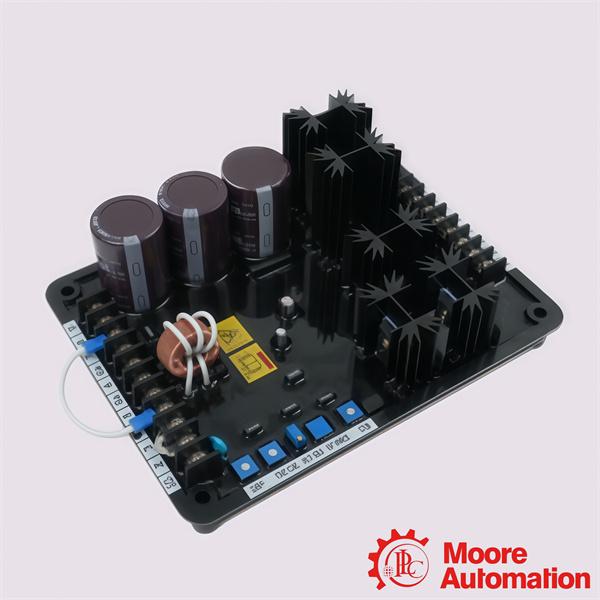

BASLER ELECTRIC AVC63-12A1 Voltage Regulator

in stock#

Brand/ Manufacturer:
BASLER ELECTRIC
Dimensions:
16.2x21.29x7.52cm
Weight:
1.13 kg
Country of Origin: :
USA
Description:
BASLER ELECTRIC AVC63-12A1 Voltage Regulator

Inquiry now

Mfr. Part Number:	AVC63-12A1

Manufacturer:	BASLER ELECTRIC

Description:	BASLER ELECTRIC AVC63-12A1 Voltage Regulator

Full Description:	The AVC63-12 and AVC125-10 regulate the level of excitation supplied to the field of a conventional, brushless, synchronous generator.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for BASLER ELECTRIC. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The AVC63-12 and AVC125-10 regulate the level of excitation supplied to the field of a conventional, brushless,synchronous generator.
Regulation is achieved by sensing the generator output voltage, converting it to a dc signal, and comparing the signal to a reference voltage. An error signal is developedand used to control the dc field power in order to maintain aconstant generator output.

Application:

Healthcare Facilities: Frequently used in hospitals to manage backup and emergency generator systems.
Manufacturing and Process Industries: Applied in manufacturing facilities and for industrial heating, electric welding, and primary transformer control for electrochemical processes.
Marine and Transportation: Common in marine vessel generator sets and mobile power units.
Power Plants: Used in emergency and stand-alone generator set applications, as well as for utility paralleling where reactive load sharing is required.

Frequently Asked Questions (FAQ)

Q:Generator won't build up voltage?
A:Residual voltage may be <12 Vac. Field flash with prime mover at rest: apply ≤24 Vdc through F1(+)/F2(–) with 1 Ω/volt series resistor for ~10s. Never flash while rotating.
Q:How to set underfrequency knee (UF KNEE)?
A:Run at nominal frequency, set VLT ADJ to nominal voltage.
Turn UF KNEE clockwise until voltage drops, then back slightly until it recovers.Jumper terminal 8→6a for 1 PU V/Hz; open for 2 PU.

Q:Is an Inrush Current Reduction Module (ICRM) required?
A:Yes, if you energize the unit from an active power source that is already running at full regulator input power rating. A Basler ICRM-15 is required to suppress severe inrush current and protect internal circuits.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: AVC63-12A1
Configuration	1-phase or 3-phase
Frequency	50 to 400 Hz
Voltage Range	90 to 153 Vac
Maximum Continuous Burden	1,092 VA
Configuration:	1-phase or 3-phase
Burden:	<1 VA per phase
Voltage Range	90 to 139 Vac
Nominal Frequency	50 or 60 Hz
Voltage Range:	±3 Vdc
Maximum Continuous Output	12 Adc at 63 Vdc
10 Second Forcing Output	24 Adc at 125 Vdc
Minimum Field Resistance	5.25 Ω
