8BVI0055HWD0.000-1| B&R Dual-axis inverter module

in stock#

Brand/ Manufacturer:
B&R
Dimensions:
39.5x26.3x5.35cm
Weight:
1.5 kg
Country of Origin: :
Austria
Description:

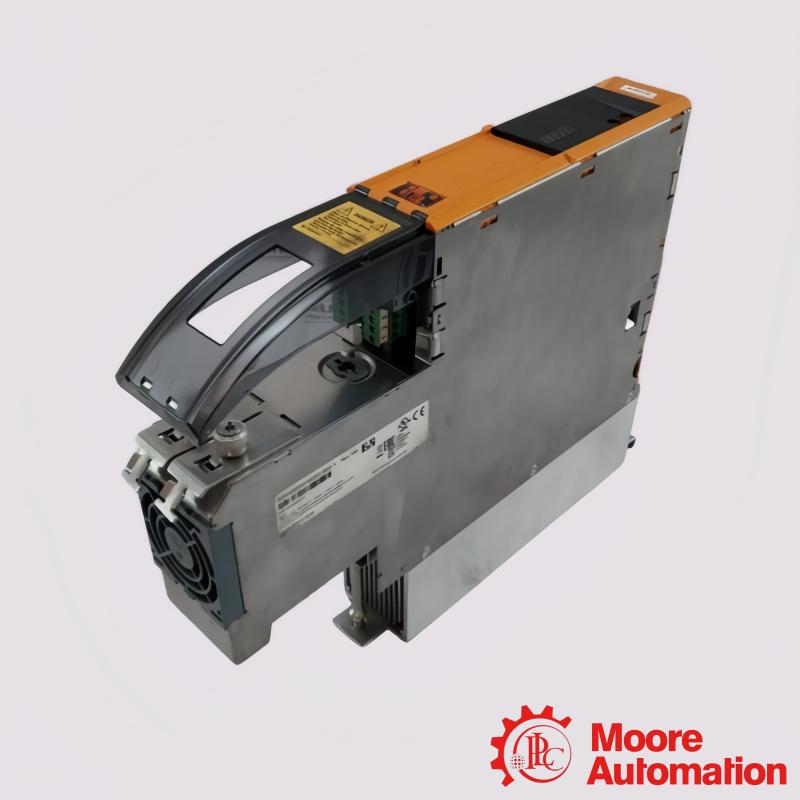

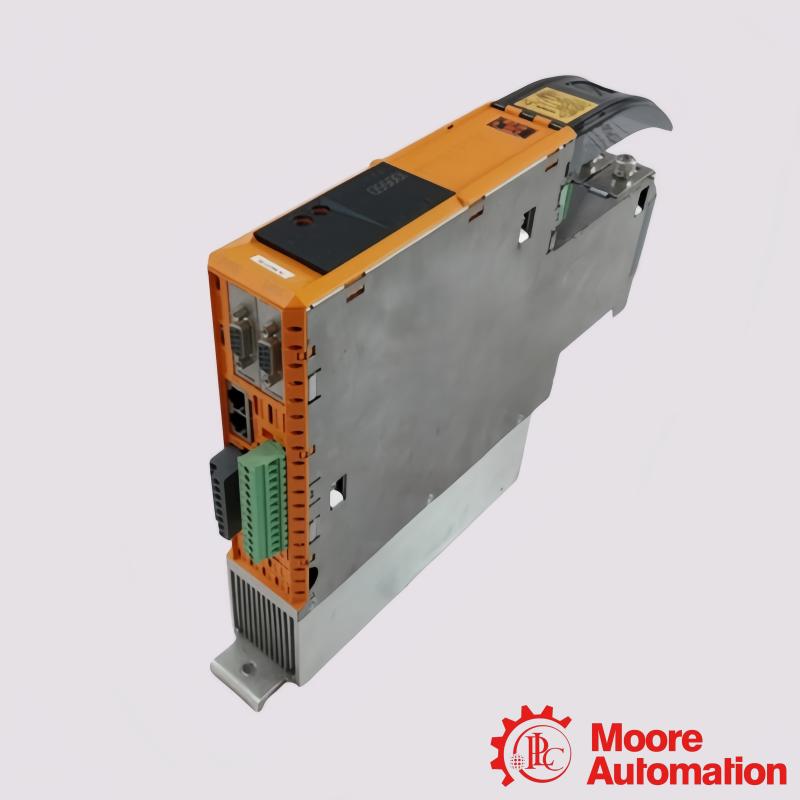

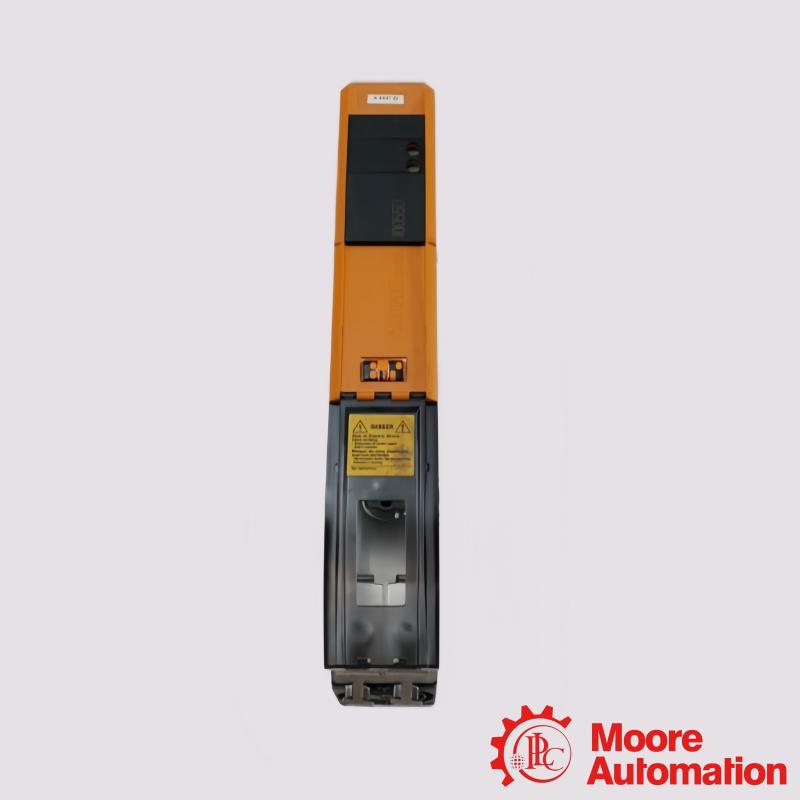

B&R 8BVI0055HWD0.000-1 Dual-axis inverter module

Inquiry now

Mfr. Part Number:	8BVI0055HWD0.000-1

Manufacturer:	B&R

Description:	B&R 8BVI0055HWD0.000-1 Dual-axis inverter module

Full Description:	Double-axis modules contain two complete standalone inverters within an inverter module.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for B&R. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

8BVI0055HWD0.000-1 is a dual-axis inverter module that integrates uncontrolled standby and safety stop functions, has built-in motor brake and temperature sensor connection interfaces, and is equipped with two ACOPOSmulti plug-in module slots. A single module contains two completely independent power inverters, capable of driving two motors simultaneously.

Application:

Robotics: Facilitating coordinated motion control for industrial robotic arms and complex robotic systems.
Material Handling: Used for accurate positioning in large-scale conveyor and automated sorting systems.
Machine Tooling: Controlling sensor-free induction motors, permanent magnet servo motors, and ultra-dynamic linear motors.
Manufacturing Series Machines: Its design allows for prewiring of complete switching cabinets, making it ideal for the mass production of industrial machines.

Frequently Asked Questions (FAQ)

Q:What type of module is 8BVI0055HWD0000-1? How many motors can it drive?
A:It is a dual-axis inverter module from the B&R ACOPOSmulti series, wall-mounted. A single module contains two completely independent power inverters, capable of driving two motors simultaneously.
Q:What are the rated current and output frequency limits of this module?
A:Under conditions of 750V DC bus voltage, 5kHz switching frequency, 40°C ambient temperature, and altitude <500m, the continuous current per axis is 7.6 Arms, and the peak current is 18 Arms. The upper limit of the electrical output frequency is 598 Hz; exceeding this frequency by 0.5s will trigger error 6060 and stop the operation.

Q:Which encoders and safety functions does the module support?
A:It supports EnDat (12-bit) and Resolver (6-bit) encoders, expandable via two ACOPOSmulti plug-in slots. For safety, it integrates uncontrolled standstill and safety stop functions, and uses OSSD signals to monitor line short circuits and cross-faults.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: 8BVI0055HWD0.000-1
Product Type	B&R ACOPOSmulti Dual-Axis Inverter Module
DC Bus Voltage	750 V DC
Switching Frequency	5 kHz (Nominal
Continuous Current	7.6 Arms/Axis
Peak Current	18 Arms/Axis
Output Frequency Limit	≤ 598 Hz
Communication Interface	POWERLINK Real-time Ethernet
Dimensions	Height 39.5 cm × Depth 26.3 cm × Width n × 5.35 cm
