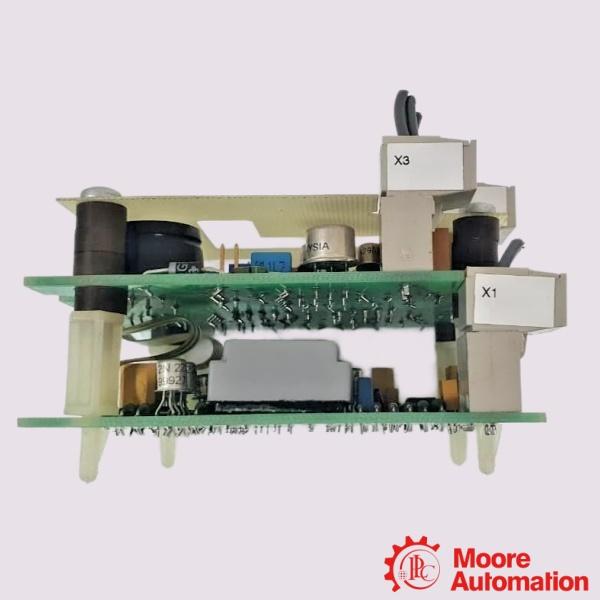

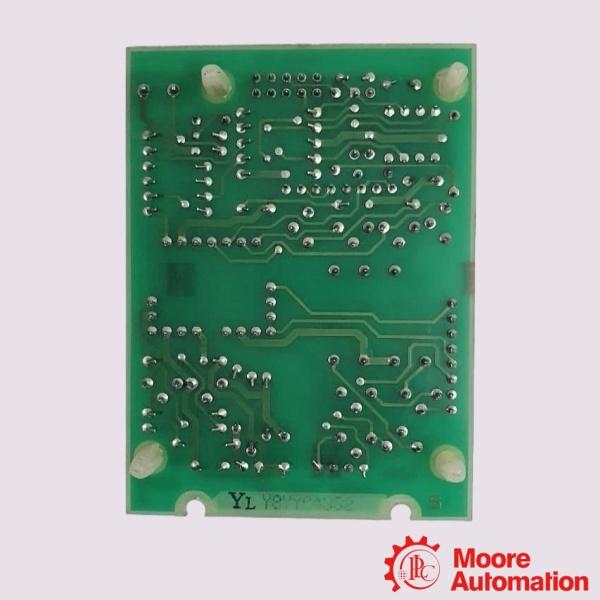

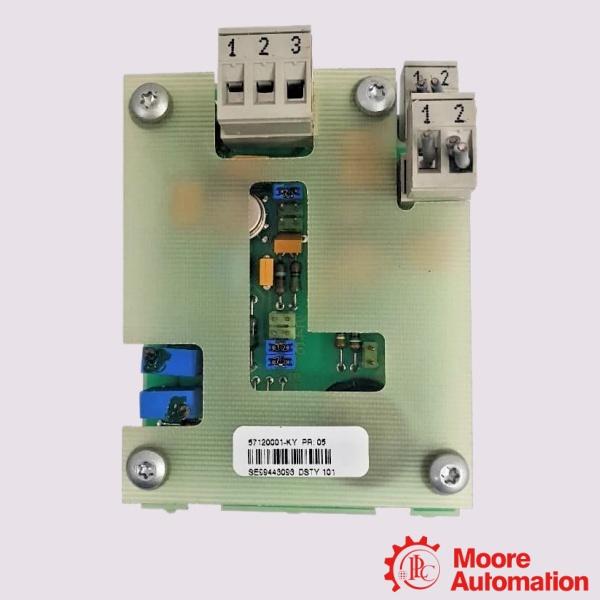

ABB DSTY101 57120001-KY Isolation Amplifier Module

Frequently asked questions
Q:What is the ABB DSTY101 57120001-KY?
A:The ABB DSTY101 57120001-KY is an auxiliary unit used within the ABB Advant OCS S100 I/O system. It is designed for integration with the S100 I/O platform in Advant OCS and MasterPiece 200 control systems.

Q:What is the primary function of the ABB DSTY101 57120001-KY?
A:The DSTY101 serves as an auxiliary unit within the S100 I/O architecture, supporting the interface and operation of S100 I/O modules in ABB process automation systems.

Q:What industries commonly use the ABB DSTY101 57120001-KY?
A:As part of the Advant OCS control system, the module is suitable for industrial process automation applications such as power generation, oil and gas, chemical, pulp and paper, water treatment, and manufacturing facilities where S100 I/O systems are installed.

Description

The ABB DSTY101 57120001-KY is an interface module used within ABB Advant OCS automation systems. It forms part of the S100 I/O platform and is intended for use with ABB control system architectures to support reliable signal interfacing between field devices and the control system. Designed for industrial process automation applications, the module integrates with the Advant OCS environment to provide dependable operation and long-term system compatibility. As an original ABB system component, the DSTY101 is intended for installation and maintenance of existing Advant OCS and MasterPiece 200 systems, helping ensure stable operation of legacy automation installations.

Parameter

Model: DSTY101 57120001-KY Isolation Amplifier Module
Galvanic Isolation: 3 kV AC / DC (High-voltage barrier between field and system)
Input Operating Voltage: +24 V DC (System backplane power)
Voltage Tolerance Range: +19 V DC to +30 V DC
Power Consumption: Approx. 1.2 W to 1.5 W
Supported Input Range: 0 to ±10 V DC or 0 to ±20 mA (Jumper configurable)
Supported Output Range: 0 to ±10 V DC or 0 to ±20 mA (Matches system bus levels)
Operating Temperature: 0 °C to +55 °C (+32 °F to +131 °F)
Storage Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity: 5% to 95%, non-condensing
Temperature Coefficient: ≤ ±100 ppm / °C

Application areas

The ABB DSTY101 57120001-KY is an isolation interface module utilized in older-generation automation architectures. Its primary application areas are defined by its function as a high-voltage (3 kV) galvanic safety barrier and signal conditioner. The module is primarily applied in the following areas:

• Pulp & Paper Plants: Isolating analog feedback from wet-end field instruments exposed to moisture and electrical noise.
• Steel and Metal Rolling Mills: Safeguarding the DCS from massive electromagnetic interference (EMI) generated by arc furnaces and high-horsepower rolling motors.
• Chemical & Petrochemical Processes: Safe signal conditioning for level, pressure, and temperature transmitters placed across expansive industrial plots.
