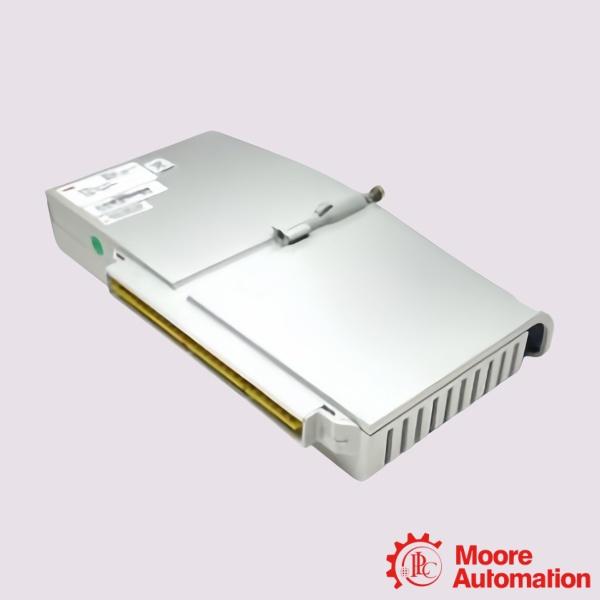

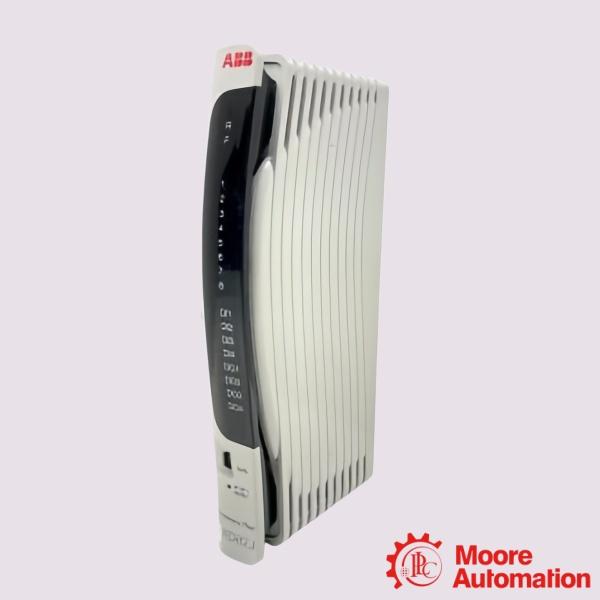

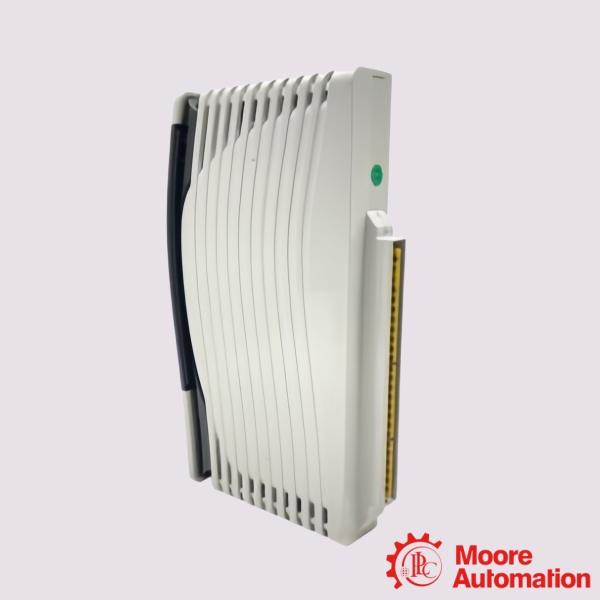

ABB RAI02J redundant analog input module

Parameter
Model: RAI02J redundant analog input module
Channel Quantity; 16 channels
Signal Type: 4~20 mA DC
Short-circuit Protection: Max 96 mA
A/D Resolution: 12~16 bits
Measurement Accuracy: ±0.1% FSR
Max Temperature Drift: ±0.003% / °C
Operating Temperature: -40℃ ~ +70℃
Storage Temperature: -40℃ ~ +85℃

Description

The ABB RAI02J is a redundant analog input module for the Symphony Plus SD Series I/O platform. The module accepts up to 16 group-isolated analog input channels, with each channel configured independently for either 4–20 mA current signals or 1 to +5 VDC voltage signals. This arrangement allows different field instruments to be connected within the same module while maintaining individual channel configuration. Each input channel is processed through the module's analog-to-digital conversion system, with selectable 12- to 16-bit resolution and a complete refresh of all 16 channels every 100 ms. When operating in current mode, the module supports HART Version 5.4 communication, making secondary HART variables available to the control system. One HART modem is integrated into each module, with support for up to 24 secondary variables, up to four for each input channel. The RAI02J operates from a 24 VDC power supply and incorporates group isolation between field signals and the control system. Current inputs include short-circuit protection with a maximum current limit of 96 mA, while open-circuit conditions can also be detected during operation. The module is intended for use with compatible Symphony Plus SD Series termination units and provides reliable acquisition of analog process signals used for monitoring and control in power generation, industrial process automation, and utility applications.

Frequently asked questions

Q:What is the ABB RAI02Jused for?
A:The ABB RAI02J is a redundant analog input module for the Symphony Plus SD Series I/O platform. It acquires analog field signals and transfers the measurement data to the controller for process monitoring and control.

Q:How many input channels are available on the RAI02J?
A:The module provides 16 analog input channels. Each channel is configured independently, allowing different signal types to be used within the same module.

Q:Does the ABB RAI02J support HART communication?

A:Yes. When operating in current mode, the module supports HART Version 5.4 instruments and can make secondary HART variables available to the control application.

Application areas

• Power Generation Facilities: Monitors turbine instrumentation, boiler feed-water flows, and multi-point temperature transmitters in critical utility networks where redundancy prevents unplanned trips.
• General Industrial Process Control: Integrated into standard distributed control system (DCS) architectures to manage general multi-point continuous-loop field automation.
• Water and Wastewater Treatment: Tracks chemical dosing rates, dissolved oxygen inputs, and line pressures from distant pumping stations over group-isolated channels.
