ABB RDCU-02C ASXR7220 Primary Drive Control Unit

Parameter
Model: RDCU-02C ASXR7220 Primary Drive Control Unit
External Input Voltage: 24 V DC (Typical), Range: 24 V DC ± 10%
Current Consumption: Max.1.0 A (Depends on external I/O loads and options)
Removable I/O Terminals: 2.5 mm² cage clamps (Detachable design for easy maintenance)
Operating Temperature: 0 °C to +50 °C (+32 °F to +122 °F); Up to +55 °C with derating
Relative Humidity: 5% to 95%, non-condensing
Protection Class: IP20 (Enclosed installation within drive cabinet)
Design Standard: CE, UL, cUL compliant for heavy industrial environments

Description

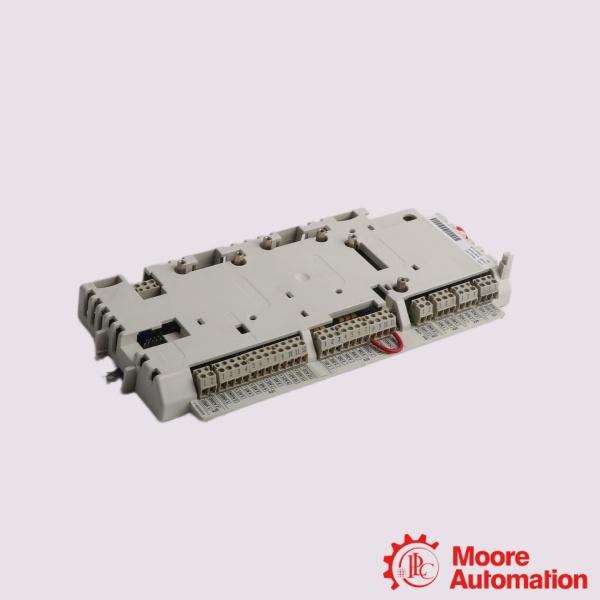

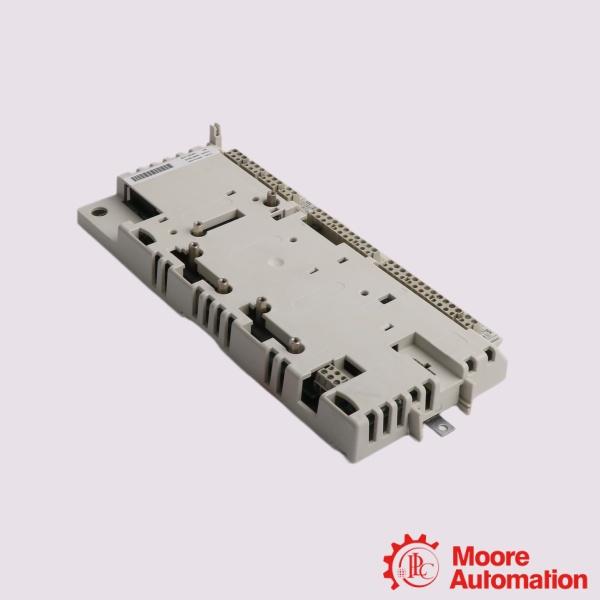

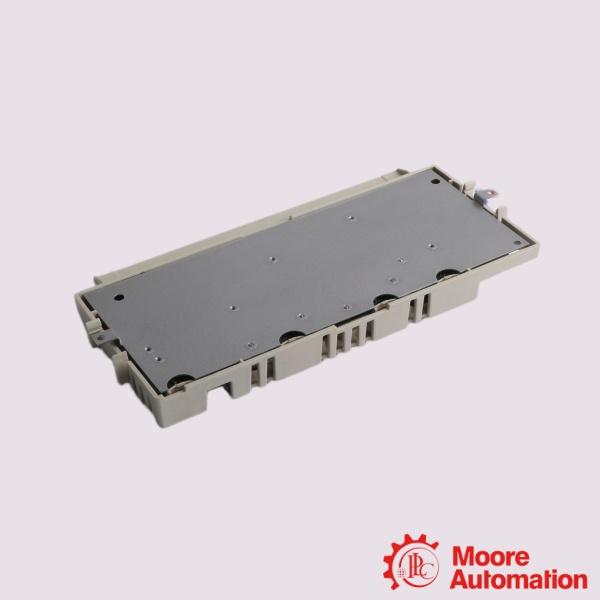

The The ABB RDCU-02C ASXR7220 is a drive control unit developed for ABB ACS800 industrial drive systems. It serves as the central control platform for the drive, integrating the RMIO motor control and I/O board to execute drive control functions, process field I/O signals, and manage communication between the converter and external devices. The unit is designed for installation on a 35 × 7.5 mm DIN rail and can be mounted in either a vertical or horizontal position, provided that adequate ventilation is maintained. The RDCU-02C includes removable I/O terminal blocks, a control panel connection, a 24 V DC power input, expansion slots for optional I/O modules, and support for RDCO DDCS communication modules with fiber-optic interfaces. It is intended for use in ACS800 cabinet drives where reliable drive control, flexible I/O expansion, and high-speed communication are required. The ASXR7220 software designation identifies the controller as using the ACS800 Standard Application Program, and ABB recommends verifying the SW TYPE, SW CODE, and DEVICE TYPE on the unit label before installation to ensure compatibility with the corresponding converter hardware. The RDCU-02C is supplied as part of the ACS800 drive control architecture and is designed to support long-term operation in demanding industrial environments while providing straightforward installation, maintenance, and integration with ABB drive systems.

Frequently asked questions

Q:What is the ABB RDCU-02C ASXR7220?
A:The ABB RDCU-02C ASXR7220 is a drive control unit used in ABB ACS800 industrial drive systems. It functions as the main control platform, incorporating the RMIO control and I/O board to manage drive control, I/O processing, and communication with the converter.

Q:How is the RDCU-02C ASXR7220 installed?
A:The unit is designed for mounting on a 35 × 7.5 mm DIN rail and may be installed in either a vertical or horizontal position. ABB recommends allowing sufficient airflow around the housing and avoiding installation near sources of electromagnetic interference.

Q:What does the ASXR7220 software designation mean?

A:ASXR7220 identifies the ACS800 Standard Application Program installed in the RDCU-02C. ABB recommends verifying the SW TYPE, SW CODE, and DEVICE TYPE shown on the unit label before installation to ensure compatibility with the converter hardware.

Application areas

The ABB RDCU-02C ASXR7220 Drive Control Unit is the central brain for the high-performance ABB ACS800 industrial drive series. The primary application areas include:

• Hoist & Gantry Controls: Managing hoisting motors on overhead cranes, container gantry cranes, and harbor winches to ensure zero-speed load holding without mechanical brake wear.
• Coilers & Uncoilers: Controlling variable roll diameters while processing sheet metal to prevent material deformation.
• Winders & Calenders: Providing smooth, highly responsive torque adjustments during the continuous winding of massive paper rolls.
