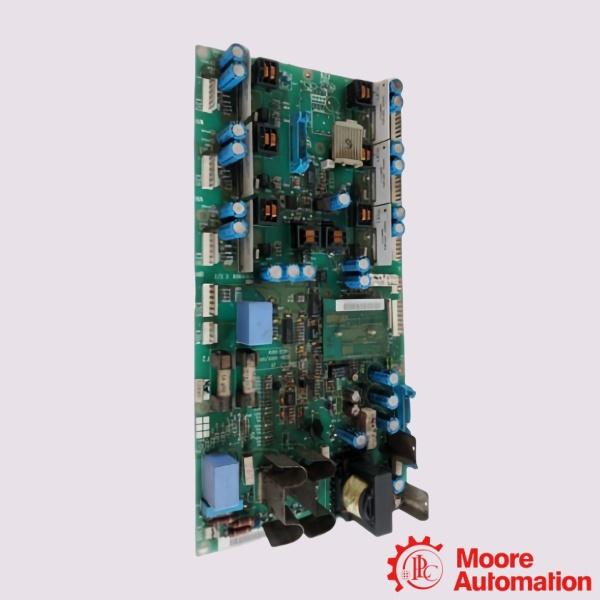

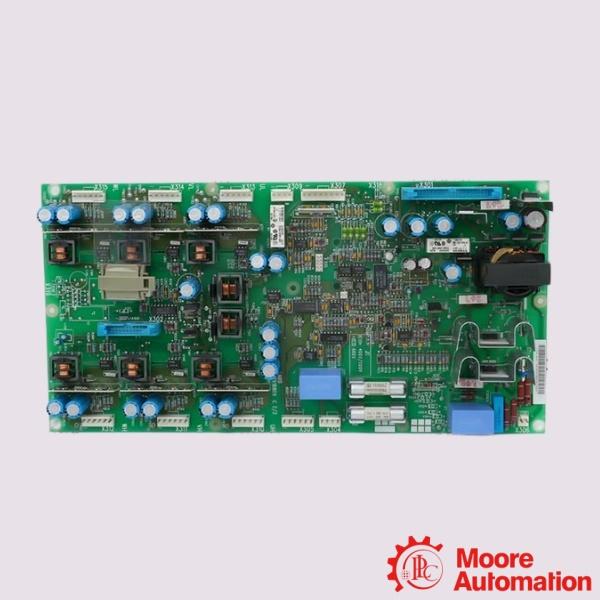

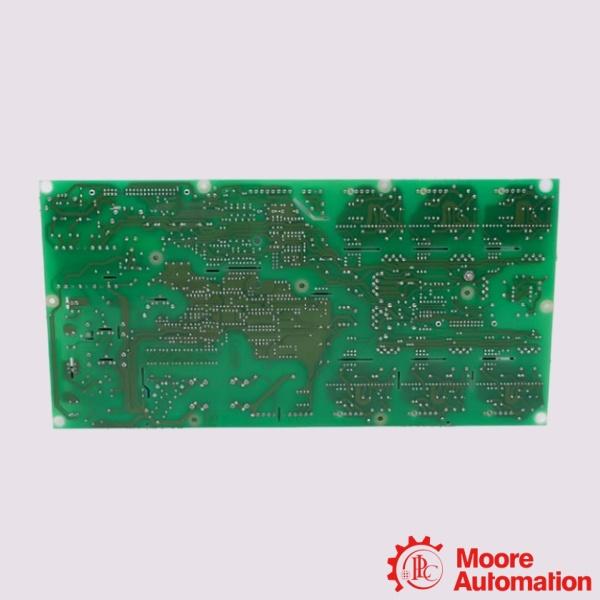

ABB SNAT7261QCP Main Interface Control Board

Description

The ABB SNAT7261QCP is a main interface control board used in ABB industrial drive systems. It serves as the interface between the control section and other internal assemblies, handling signal transmission, command communication, and coordination between system components. The board is installed within compatible drive equipment where stable exchange of operating data is required during normal machine operation. The SNAT7261QCP processes control signals exchanged between the processor, interface circuits, and associated drive hardware. It supports internal communication required for system monitoring, operating status feedback, and execution of control commands. The board also forms part of the electrical interface linking the control electronics with connected drive assemblies, allowing coordinated operation of the complete drive system. During operation, the board contributes to signal management, equipment supervision, and communication between the principal control circuits and peripheral hardware installed within the drive cabinet.

Parameter

Model: SNAT7261QCP Main Interface Control Board
Digital Input Channels: 6 x Optically Isolated Inputs (24 VDC standard logic)
Onboard Supply Voltage: +24 VDC, +5 VDC, ±15 VDC (Supplied via main drive power card)
Dielectric Isolation: 500 VDC (Control circuits to chassis ground)
Operating Temperature: 0 °C to 50 °C (Standard internal cabinet grade)
Relative Humidity Limits: 5% to 95% RH (Non-condensing)

Frequently asked questions

What is the ABB SNAT7261QCP used for?
The SNAT7261QCP is an interface control board used in ABB industrial drive systems. It transfers control signals between the main control section and other internal assemblies within the drive.

Which ABB equipment uses the SNAT7261QCP?
The board is installed in compatible ABB variable speed drives and related industrial drive equipment. The exact application depends on the drive model and hardware configuration.

Does the SNAT7261QCP connect directly to field devices?
No. The board is intended for internal communication inside the drive. Field devices are connected through the appropriate I/O or terminal interfaces provided by the complete drive system.

Application areas:
Coilers, Uncoilers, and Tension Levelers: Controls precision torque loops to maintain constant web tension as steel sheets are tightly wound onto coils.
Overland Belt Conveyor Systems: Manages the multi-drive master-follower communication loops required to smoothly start and stop multi-kilometer conveyor belts without snapping the belt material.
Large Gas Compressors and Feedwater Pumps: Manages internal drive monitoring loops for centrifugal gas compressors and high-pressure oil field injection pumps, ensuring real-time status feedback is pushed upstream to the plant DCS.
