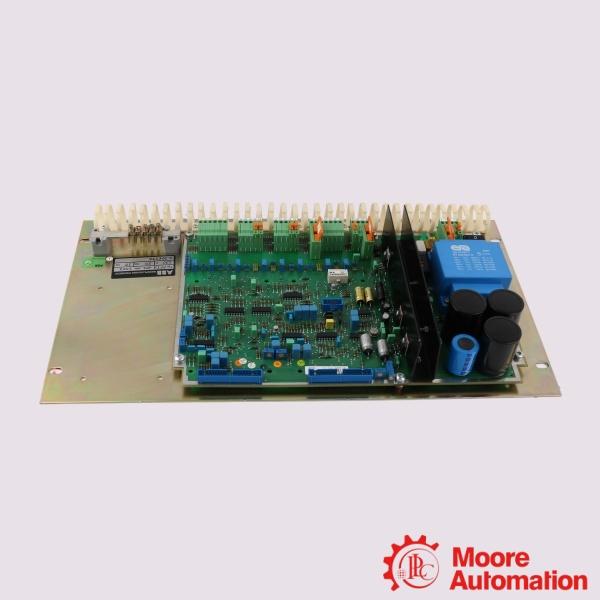

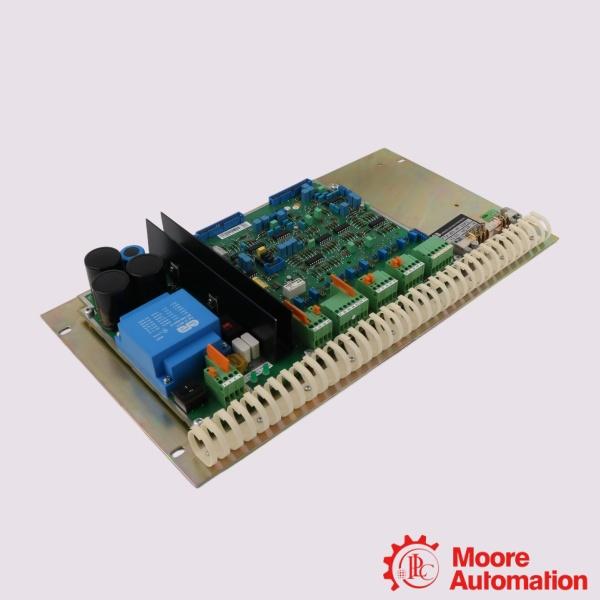

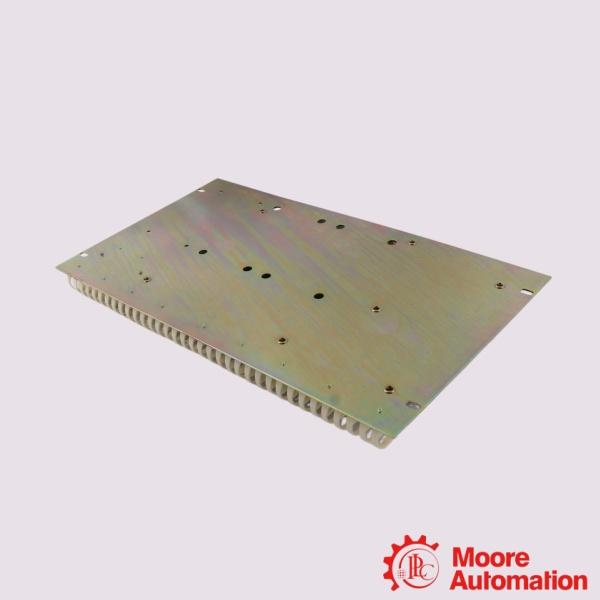

ABB PFTK101A YM222001-UC Control Unit Board

Description

The ABB PFTK101A YM222001-UC is an electronic control unit used with ABB Pressductor® force and tension measurement systems. It is designed to process signals from Pressductor load cells and provide stable, accurate measurement for continuous web tension monitoring in industrial process applications. The module is suitable for integration into ABB automation systems, supporting reliable signal conditioning and control for demanding production environments. As part of the Pressductor® measurement platform, it is intended for applications requiring high measurement stability, long-term reliability, and consistent performance in web handling and material processing systems.

Parameter

Model: PFTK101A YM222001-UC Control Unit Board
Input Voltage: 24 V DC (Typical), Range: 19 V DC to 30 V DC
Current Consumption: Max. 500 mA (excluding external load cell excitation)
Power Consumption: Approx. 12 W
Excitation Current: 1.0 A to 2.0 A AC (High-frequency square wave/pulse)
Excitation Frequency: Approx. 330 Hz
Filter Cut-off Frequency: 5 Hz, 10 Hz, or 20 Hz (Selectable via jumpers/dip-switches)
Operating Temperature: 0 °C to +55 °C (+32 °F to +131 °F)
Storage Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity: 5% to 95%, non-condensing
Protection Class: IP20 (Designed for cabinet mounting)

Frequently asked questions

What is the ABB PFTK101A YM222001-UC used for?
The ABB PFTK101A YM222001-UC is an electronic unit used in ABB Pressductor® force and web tension measurement systems to process load cell signals for continuous industrial tension measurement and control.

What industries use the ABB PFTK101A YM222001-UC?
The module is commonly used in web handling and strip processing industries, including paper, printing, plastic film, converting, textile, and metal processing applications where accurate tension measurement is required.

What measurement technology does the PFTK101A YM222001-UC support?
It supports ABB's Pressductor® technology, which is based on the magnetoelastic effect. This technology generates measurement signals without relying on mechanical deformation, providing stable and reliable performance.

Application areas:
Cold Rolling Mills: Tracking high strip tension during the metal reduction process.
Annealing & Galvanizing Lines: Measuring tension in demanding environments containing emulsion, heat, or chemicals.
Laminating & Coating: Ensures accurate substrate matching during multi-layer bonding processes.
Commercial Printing Presses: Deployed in high-speed magazine, newspaper, and package printing machinery to ensure color registration accuracy.
