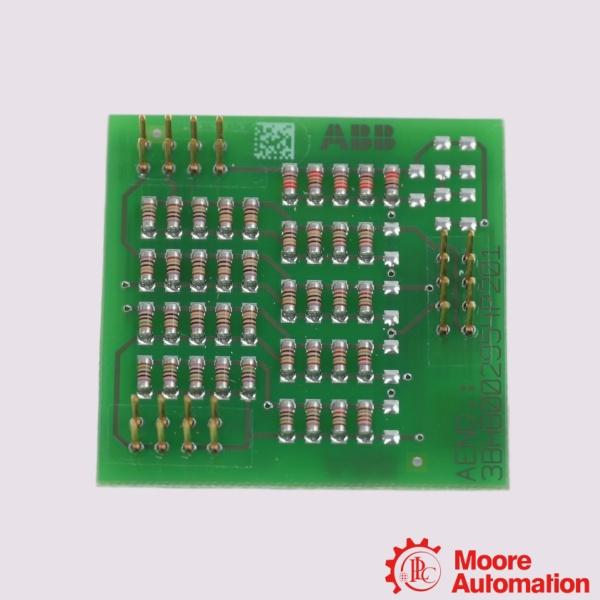

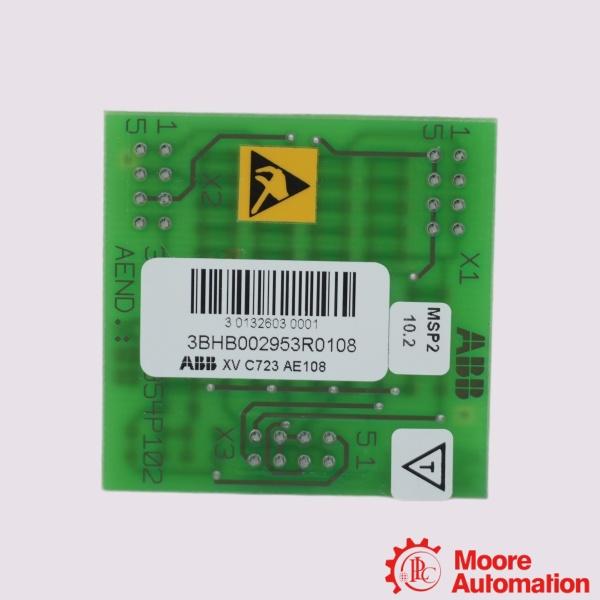

ABB 3BHB002953R0108 XVC723 AE108 Current Measurement Scale Module

Description

The ABB 3BHB002953R0108, designated as SCA 6833A XV C723 AE08, is a Current Measurement Scale module supplied as an original spare part for ABB ACS1000 medium-voltage drive systems. The module is used within the drive measurement circuit and forms part of the original hardware configuration specified for compatible ACS1000 equipment. It is manufactured to ABB specifications and is supplied for replacement during service or maintenance of the drive system. Installation is carried out using the original electrical and mechanical interfaces defined for the equipment, allowing the module to replace the corresponding factory-installed component without modification. Before installation, the product identification and drive configuration should be verified against the applicable ABB spare parts documentation to ensure compatibility. As a genuine ABB spare part, the 3BHB002953R0108 supports restoration of the original measurement hardware configuration and maintains consistency with the system requirements defined for the ACS1000 platform.

Parameter

Model: 3BHB002953R0108 XVC723 AE108 Current Measurement Scale Module
Accuracy: ±0.5% of full scale
Voltage supply: Typically +24V DC (±10%)
Operating Temperature: 0°C to +55°C
Storage Temperature: -40°C to +70°C
Output Signal Type: Standardized voltage signals
Input Signal Type: Current measurement signals from inverter outputs

Frequently asked questions

What is ABB 3BHB002953R0108 XVC723 AE108?
It is a professional current measuring scale module and power electronic control drive board manufactured by ABB, primarily used in heavy-duty industrial drives and automation systems

What is the primary function of ABB 3BHB002953R0108 XVC723 AE108?
Its primary function is to accurately measure and scale electrical current within the drive system and provide control signals for power management.

What type of output signals does ABB 3BHB002953R0108 XVC723 AE108 provide?
It converts raw heavy currents into safe, isolated analog output options, such as standard voltage (±10V DC) or current loops (4-20 mA) for control processors.

Application areas:
Mining Conveyor & Mill Drives: Tracks massive electrical load distributions on high-power grinding mills and long-distance conveyors.
Metal Smelting & Rolling Mills: Regulates heavy current inputs for industrial arc furnaces and large steel rolling multi-drive setups.
Large Pumping & Compressor Stations: Installed in high-capacity water infrastructure and oil/gas pipeline compressor units to monitor load stability.
Grid Synchronization Arrays: Measures phase balancing currents to ensure safe, ripple-free power integration into utility networks.
