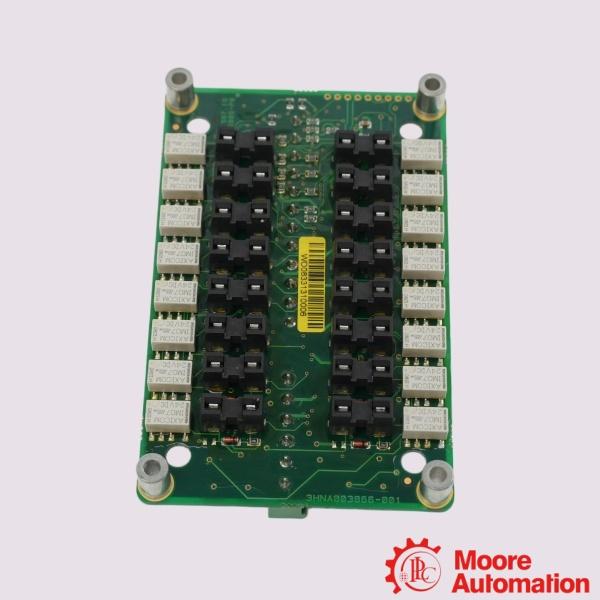

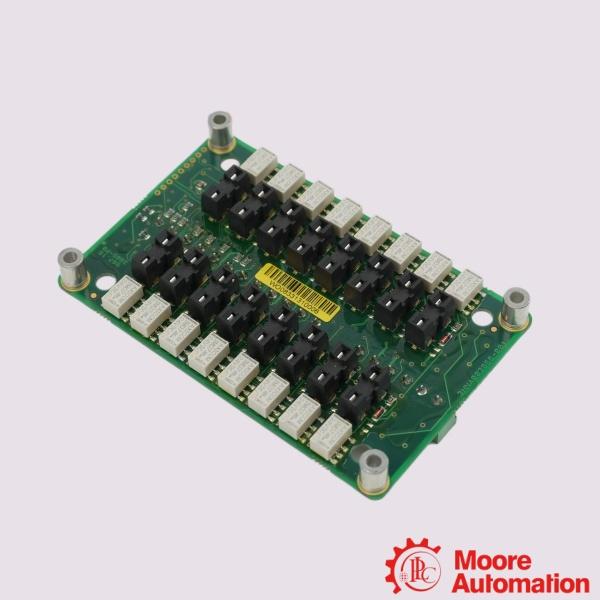

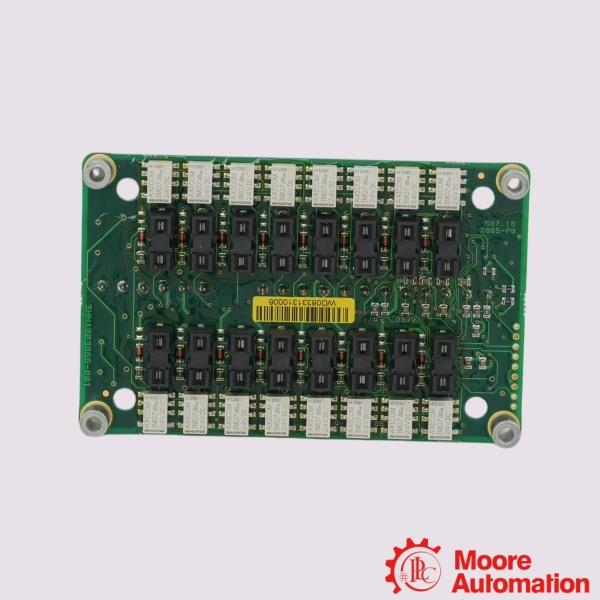

ABB 3HNA003882-001/02 PCB Board

Description

The ABB 3HNA003882-001/02 is a PCB board, commonly identified by the internal model VCDI-02, used in ABB Spray Control Systems. As one of the core circuit boards inside the control cabinet, it supports signal processing, valve control, and communication functions required during robotic painting operations. The board is widely applied in ABB paint robots, including the IRB 5400 and IRB 5500 automated spray line systems.  An operating relative humidity range of 5% to 95% RH further supports installation in demanding production facilities. With an IP20 enclosure protection rating, ABB 3HNA003882-001/02 is intended for installation inside protected control cabinets as part of an ABB Spray Control System. By coordinating process signals, communication, and control functions, the board contributes to stable robotic painting performance and efficient automation. Its compatibility with established ABB paint robot platforms makes it a dependable component for maintaining automated spray production lines.

Parameter

Model: 3HNA003882-001/02 PCB Board
Supply Voltage: DC 24V
Rated Power Consumption: Less than 15W
Operating Temperature: 0°C to +50°C
Storage and Transportation Temperature: -25°C to +70°C (non-condensing, non-icing)
Operating Relative Humidity: 5% to 95% RH (non-condensing)
Enclosure Protection Rating: IP20

Frequently asked questions

Can the ABB 3HNA003882-001/02 be installed directly?
The replacement board is intended to fit the equipment specified by ABB. Installation should follow the applicable ABB service documentation and be carried out using the original mounting arrangement and electrical connections.

Why should genuine ABB spare parts be used?
ABB states that genuine spare parts are identical and interchangeable with the original production components. They are manufactured to ABB specifications and are supported through the ABB global service network.

What is the purpose of the ABB 3HNA003882-001/02?
The board is provided as a replacement electronic component for ABB Robotics equipment. It is intended to restore the original hardware configuration when the corresponding board requires replacement during service or maintenance.

Application areas:
Automotive Body Priming: Embedded inside IRB 5500 control panels to apply consistent anti-corrosion base primer coats to vehicle frames.
Appliance Protective Coating: Directs robotic spray paths for applying enamel and protective finishes on consumer white goods.
Cabinet-Enclosed Spray Booths: Installed in IP20-rated rack slots inside safe, non-hazardous zones adjacent to hazardous painting areas.
