ABB 3HAC029105-002 DC Axial Cooling Fan

Frequently asked questions
Q:Which ABB controller uses the 3HAC029105-002?
A:The part is used with the ABB IRC5 robot controller platform. Compatibility should always be confirmed by checking the controller documentation or the ABB spare parts catalogue before replacement.

Q:Does the ABB 3HAC029105-002 require any modification during installation?
A:No modification is normally required when replacing the same part number. The replacement should use the original electrical connector and mounting arrangement provided in the controller.

Q:Is the ABB 3HAC029105-002 a genuine spare part?
A:Yes. The part number is listed within ABB's robotics spare parts system and is supplied for maintenance and replacement of compatible controller equipment.

Description

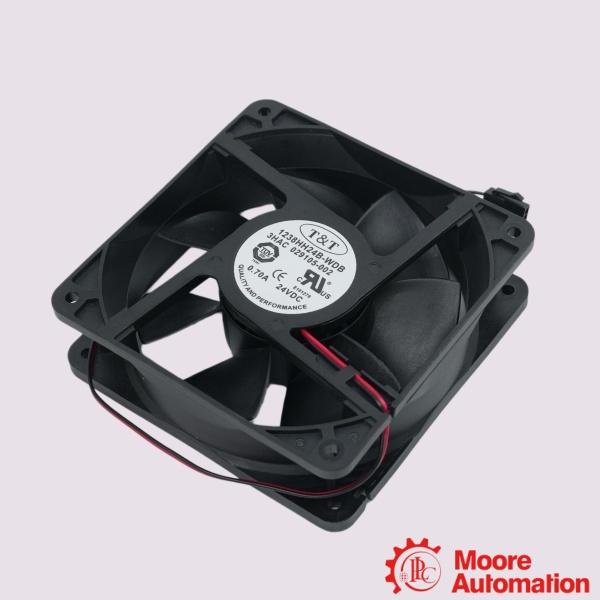

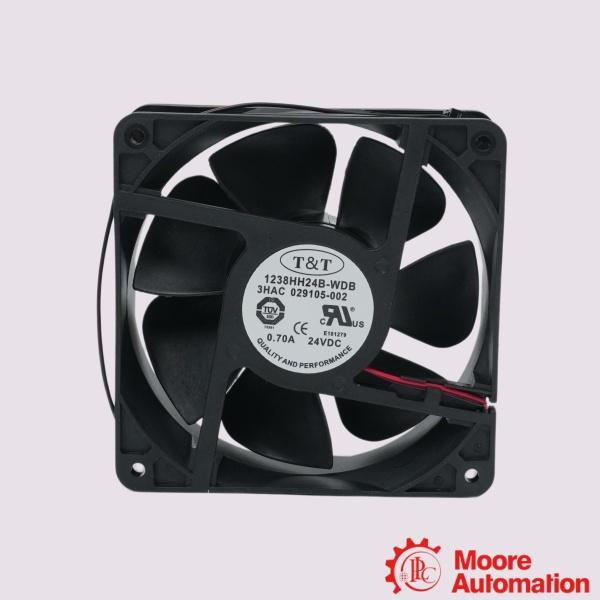

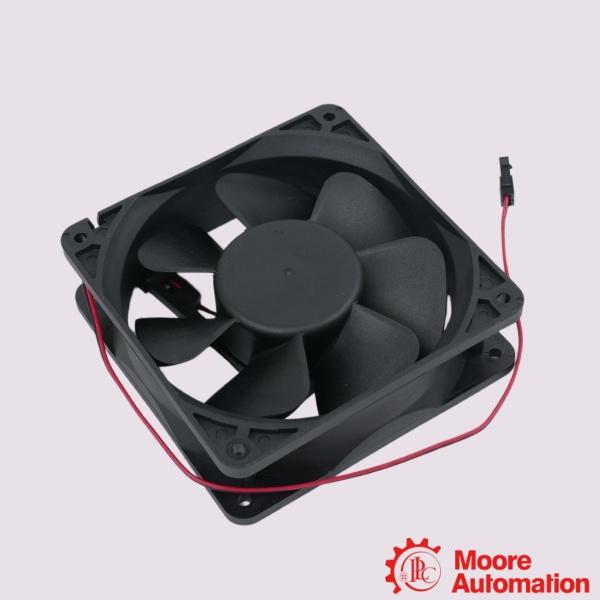

The ABB 3HAC029105-002 is an original spare cooling fan for ABB IRC5 robot controller systems. The fan is powered by a 24 V DC supply and forms part of the controller cabinet cooling assembly. During operation, it moves air through the enclosure to remove heat generated by the controller electronics and drive units, helping the cabinet maintain the operating conditions specified for the installed components. The fan is supplied as a replacement part for maintenance and service of IRC5 controllers and is intended to replace the original unit without changes to the mounting arrangement or electrical connection. The component is installed using the original fixing points and connector provided in the controller cabinet. Replacement should be performed in accordance with the applicable ABB service instructions to retain the original cooling configuration. As a genuine ABB spare part, 3HAC029105-002 is manufactured for use with compatible IRC5 controller systems and is identified in the ABB spare parts catalogue for controller maintenance and replacement. It is used where restoration of the original cooling function is required following routine service or component replacement.

Parameter

Model: 3HAC029105-002 DC Axial Cooling Fan
Nominal Voltage: 24 V DC
Voltage Range: 14.0 V DC ~ 27.6 V DC
Rated Current: 0.70 A
Nominal Speed: 3,800 ~ 4,200 RPM
Maximum Air Flow: Approx. 130 ~ 150 CFM (Cubic Feet per Minute)
Housing Material: Thermoplastic PBT (Glass-fiber reinforced, UL 94V-0)

Application areas

• Transformer Bays: Dissipates high thermal loads around internal industrial power-switching transformers.
• Foundry Prime Workcells: Prevents critical over-temperature faults in high-heat IRB Foundry Prime machine tending systems.
• Drive Module Power Electronics: Cools heavy-duty  rectifiers and IGBT modules managing multi-axis motor control loops.
• Automotive Spot Welding Lines: Counteracts ambient extreme heat cycles for cells deploying IRB 6620/6640 welding robots.
