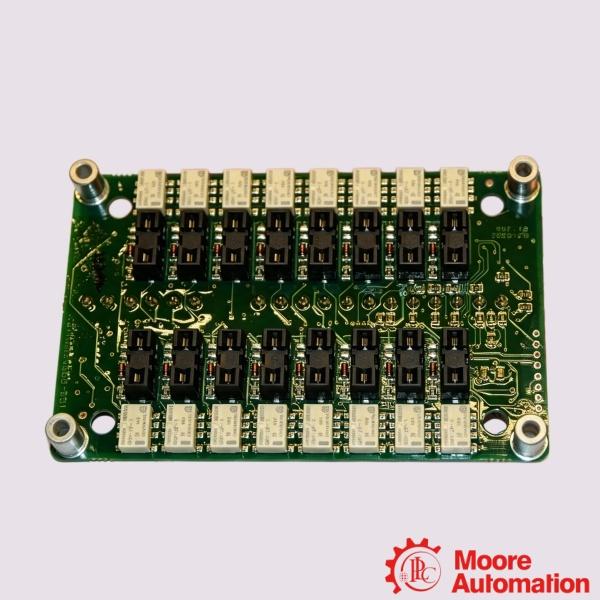

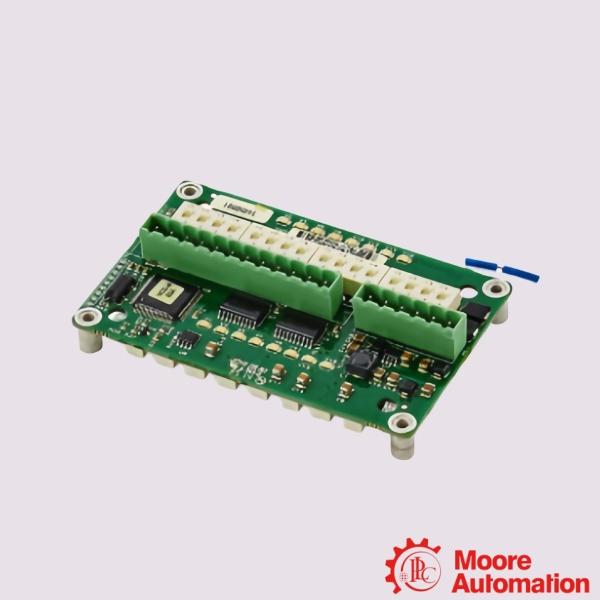

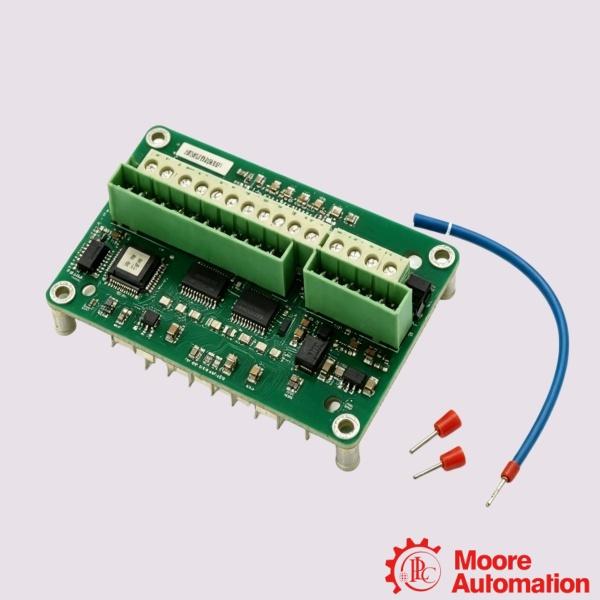

ABB 3HNA006565-001 Safety Interface Board

Parameter
Model: 3HNA006565-001 Safety Interface Board
Nominal Operating Voltage: 24 V DC (Standard internal cabinet line power)
Enclosure Rating: IP20 (Requires a protected control cabinet environment)
Motor Flange Size: 140 mm
Function: Safety signal processing and transmission
Connector Durability: > 5,000 insertion/removal cycles
Environmental Resistance: Salt spray tested surface coating
Safety Inputs: Emergency stop circuits, protective door switches, light curtain systems

Description

The ABB 3HNA006565-001, identified as the Safety Interface Board (SIB) or VCDI-02, is installed in ABB IRC5 robot controllers. The board processes and transfers safety-related signals within the controller cabinet. It provides the interface for safety loops and supports communication between the IRC5 controller and external safety devices, including emergency stop circuits, protective door switches, and light curtains. The board is intended for applications where stable transmission of safety signals is required in industrial automation systems. It provides a dedicated interface for safety inputs and outputs, helping maintain communication within the safety circuit and reducing interruptions caused by safety-related faults. The ABB 3HNA006565-001 is equipped with military-grade connectors rated for more than 5,000 insertion and removal cycles. Its surface coating has also been verified by salt spray testing for operation in industrial environments where corrosion resistance is required. Within automotive production systems, the board is installed in IRC5 control cabinets serving welding robots, assembly cells, and material handling equipment. In plastics and textile applications, it is applied in robotic systems operating under conditions involving dust, chemical exposure, and changing ambient temperatures.

Frequently asked questions

Q:What should be checked before replacing the board?
A:Before replacement, disconnect the controller power, verify the part number, and confirm that the replacement board matches the controller configuration specified by ABB. Installation should be completed according to the relevant ABB maintenance instructions.

Q:What is ABB 3HNA006565-001?
A:ABB 3HNA006565-001 is an original spare part for ABB Robotics. It is identified as the VCDI-02 Safety Interface Board (SIB) and is used in compatible ABB robot control systems as a replacement electronic board.

Q:What is the function of ABB 3HNA006565-001?

A:The board is used as a safety interface within the IRC5 controller. It handles safety-related signal exchange between the controller and the associated safety circuits installed in the robotic system.

Application areas

• Corrosive Machining Enclosures: Deployed in coastal or humid factory lines due to its salt spray tested coating resisting chemical decay.
• Explosion-Proof Cell Routing: Transfers clean-zone logic signals from protective safety perimeter barriers into automated paint booth systems.
• Pneumatic Valve Sequencing: Operates integrated safety block-and-bleed fluid valves inside automated color-change paint blocks.
