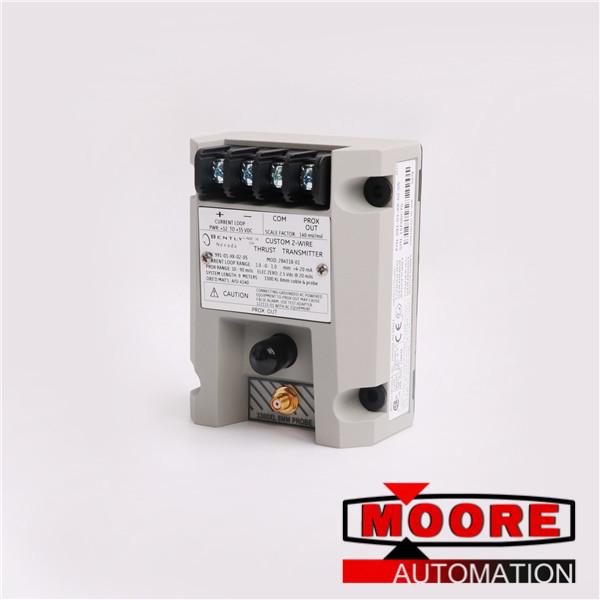

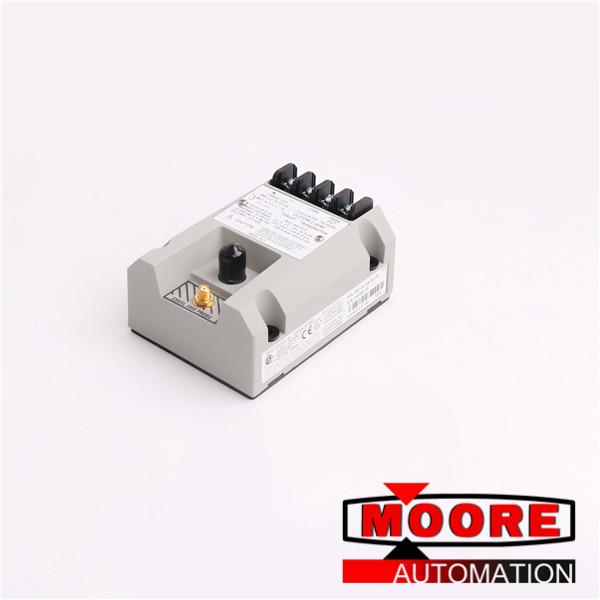

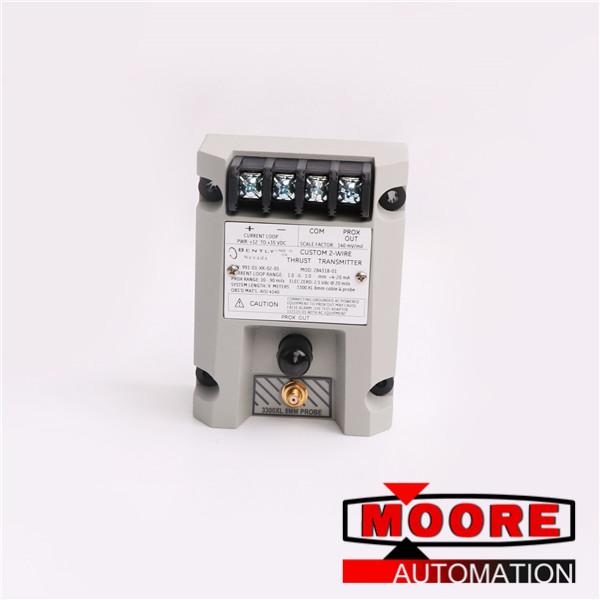

991-01-XX-02-05 GE | Bently Nevada MOB: 284318-01 Thrust Transmitter

in stock#

Brand/ Manufacturer:
GE / Bently Nevada
Dimensions:
10 cm x 7.3 cm x 5 cm
Weight:
0.44 KG
Country of Origin: :
USA
Description:
MOB: 284318-01 Thrust Transmitter

Inquiry now

Mfr. Part Number:	991-01-XX-02-05

Manufacturer:	GE / Bently Nevada

Description:	GE \| Bently Nevada 991-01-XX-02-05 Thrust Transmitter 2- WIRE

Full Description:	GE / Bently Nevada Part Number: 991-01-XX-02-05 CURRENT LOOP:PWR : +12 TO 35VDC RRENT LOOP RANGE : 1.0-0-1.0 mm= 4-20ma PROX RANGE : 10-90mils ELEC ZERO:2.5Vdc @20mils SYSTEM LENGTH :9 METERS

Status:	In stock Ready for shipment

Click to get price : : plcinfo@mooreplc.com : +86 18020776786

: live:onlywnn_1 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for GE/Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

The 991 transmitter provides the following notable features:
 Integrated Proximitor* Sensor requires no external unit
 Non-isolated “PROX OUT " and "COM" terminals plus a coaxial connector provide a dynamic vibration and gap voltage signal output for diagnostics3.
 Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
 Test Input pin allows quick verification of loop signal output, using a variable
DC voltage source as the input.
 A Power-up Inhibit circuit eliminates signal errors due to line voltage transients.
 A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.
 Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting.
 Potted construction for high humidity (up to 100% condensing) environments.
 Compatibility with 3300 NSv proximity probe allows transducer installation in small areas with minimal clearance, typical of centrifugal air compressors.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

General
Manufacturers	GE / Bently Nevada
Brand	Bently Nevada
Product type	991 Thrust Transmitter
Part Number/Catalog No.	991-01-XX-02-05
Condition	New and Original with One year Warranty
Input	Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
Power	Requires +12 to +35 Vdc input at the transmitter terminal.
