990-10-XX-01-00 163930-01 | Bently Nevada Vibration Transmitter

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
10x7.3x6cm
Weight:
0.46 kg
Country of Origin: :
USA
Description:

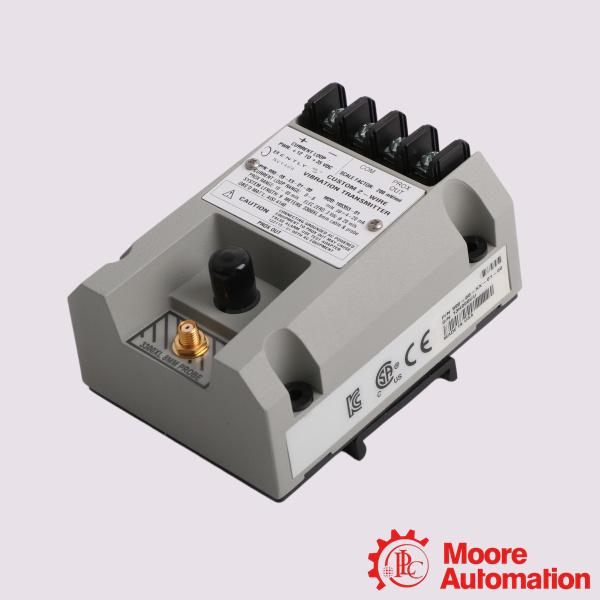

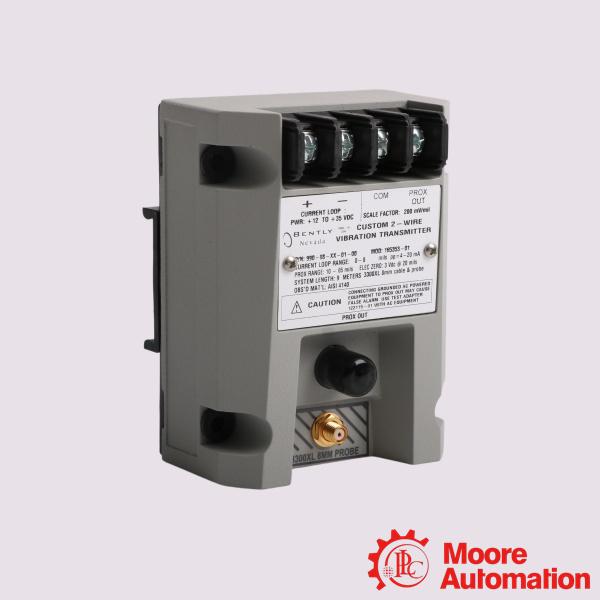

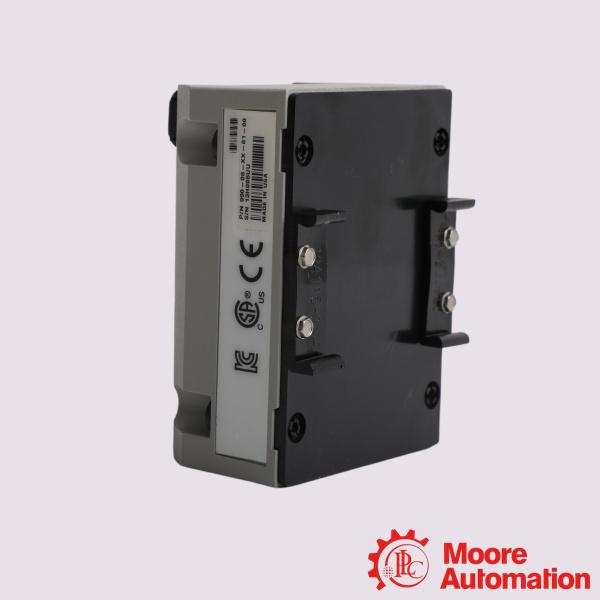

Bently Nevada 990-10-XX-01-00 163930-01 Vibration Transmitter

Inquiry now

Mfr. Part Number:	990-10-XX-01-00 163930-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 990-10-XX-01-00 163930-01 Vibration Transmitter

Full Description:	The Bently Nevada 990-10-XX-01-00 163930-01 Vibration Transmitter has a typical current limiting of 23 mA

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 990-10-XX-01-00 163930-01 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.

The 990-10-XX-01-00 163930-01 Vibration Transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

Application:

Water treatment / pumping station: Monitoring the shaft vibration of large circulating pumps and feed pumps.
HVAC: State protection for large chillers and centrifugal cooling tower fans.
Paper and light industry: Monitoring the operation status of the drive devices in the drying section and the pulp pumps.
Chemical industry: Monitoring the bearing vibration of auxiliary process equipment.

Frequently Asked Questions (FAQ)

Q:What is the main function of the 990-10-XX-01-00 163930-01 vibration transmitter?
A:The 990-10-XX-01-00 163930-01 is a vibration transmitter used to monitor vibration signals of rotating machinery and provide a standard output signal for condition monitoring.

Q:What is the frequency response of the 990-10-XX-01-00 163930-01?
A:The frequency response is 5 Hz to 6,000 Hz (±3 dB).

Q:How are the 990-10-XX-01-00 163930-01 packaged?
A:990-10-XX-01-00 163930-01 packaging generally involves multiple layers of protection to ensure safe transit.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number:990-10-XX-01-00 163930-01
Power Requirements	+12 to +35 V DC input at the transmitter terminal
Maximum Loop Resistance	1,000 Ω including cable at 35 V DC
Current Limiting	23 mA typical
Output Impedance	10 kΩ (Prox Out), calibrated for a 10 MΩ load
Frequency Response	5 Hz to 6,000 Hz (+0, -3 dB)
Minimum Target Size	9.5 mm (0.375 in) diameter
Operating Temperature	-35 to +85 °C (-31 to +185 °F)
Storage Temperature	-52 to +100 °C (-62 to +212 °F)
