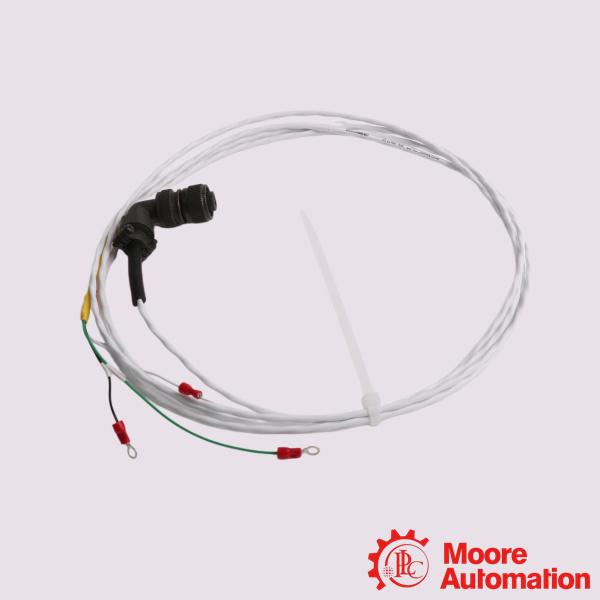

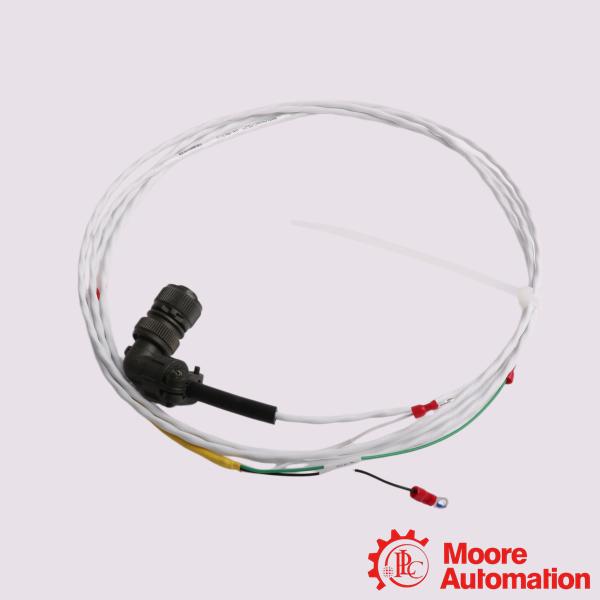

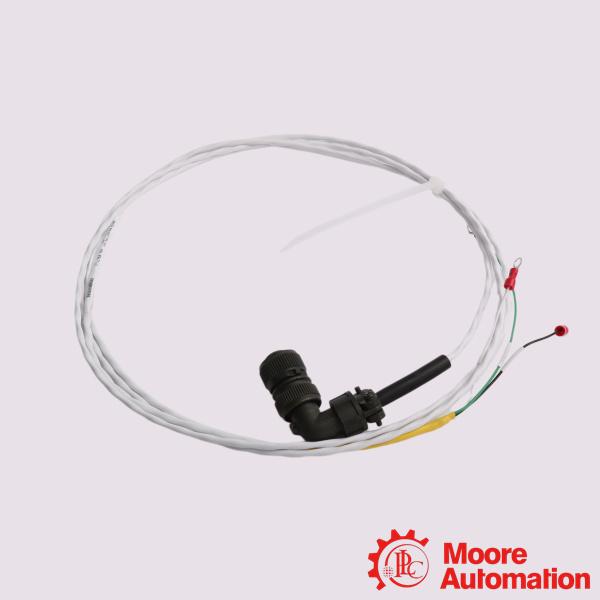

Bently Nevada 89477-20 Interconnection Cables
| Mfr. Part Number: |
89477-20 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 89477-20 is a specialized, 20-foot industrial interconnect cable engineered to bridge specialized machinery vibration sensors to their monitoring modules. It is primarily deployed in critical asset protection setups to transmit vibration signals reliably without environmental degradation. Bently Nevada Velomitor Piezo-velocity Sensors to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design.
Application:
Chemical & Petrochemical Plants: Assists in the condition monitoring of aggressive fluid pumps, mixers, and general-purpose machinery.
Water & Wastewater Treatment: Deployed on heavy-duty water pumps and large aeration blowers.
Mining & Heavy Manufacturing: Placed on large rotating equipment such as rock crushers, kilns, and material conveyors prone to high physical stress.
Power Generation Facilities: Tracks vibration levels in steam and gas turbines, generators, and cooling tower fans to prevent catastrophic failures.
Frequently Asked Questions (FAQ)
Q:Is it rated for hazardous environments?
A:Yes, when integrated within the factory-approved 107770-AA-BB assembly housing, it complies with stringent CENELEC Zone 1, Group IIC explosion-proof and hazardous area industrial applications.
Q:What is the primary purpose of this cable?
A:The cable transmits absolute machinery vibration signals from a sensor—most notably the 330500 Velomitor Piezo-velocity Sensor inside a 21128 protective transducer housing—directly to a Bently Nevada continuous monitoring system.
Q:Which specific sensors does it connect?
A:It is required to connect 330500 Velomitor Piezo-velocity Sensors housed inside a 21128 protective enclosure.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：89477-20 |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5%. |
|
Velocity Range |
1270 mm/s (50 in/s) peak |
|
Mounted Resonant Frequency |
Greater than 12 kHz. |
|
Output Bias Voltage |
-12 ±3.0 VDC, over temperature referenced to Pin A. |
|
Dynamic Output Impedance |
Less than 2400 Ω |
|
Standard Cable Lengths |
20 ft |
|
Operating Temperature Range |
-55°C to 121°C (-67°F to 250°F) |
|
Shock Survivability |
5,000 g peak, maximum |
|
Base Strain Sensitivity |
0.005 in/s/mstrain. |
|
